PFX-5607

8 Foot Vapor Tight Sensor Ready Lumen & Kelvin Selectable

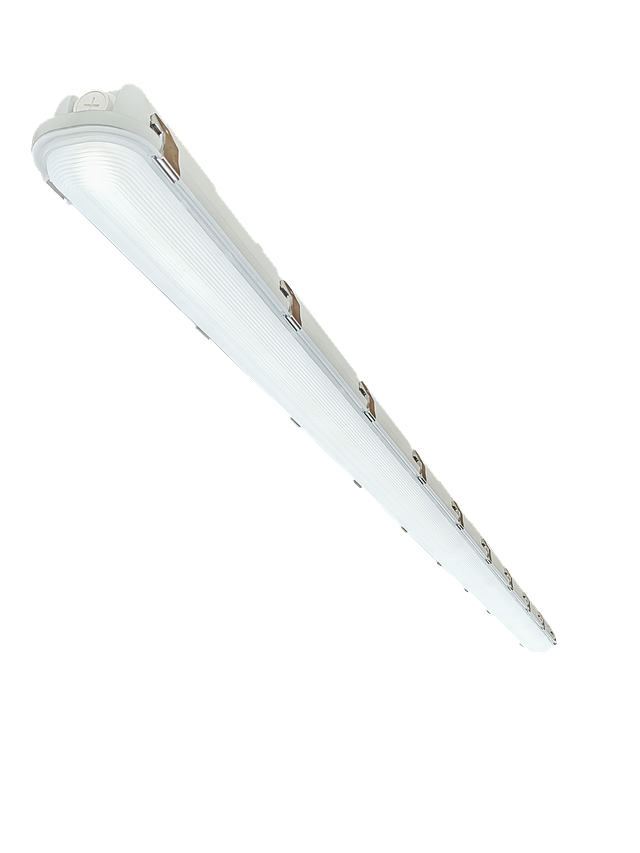

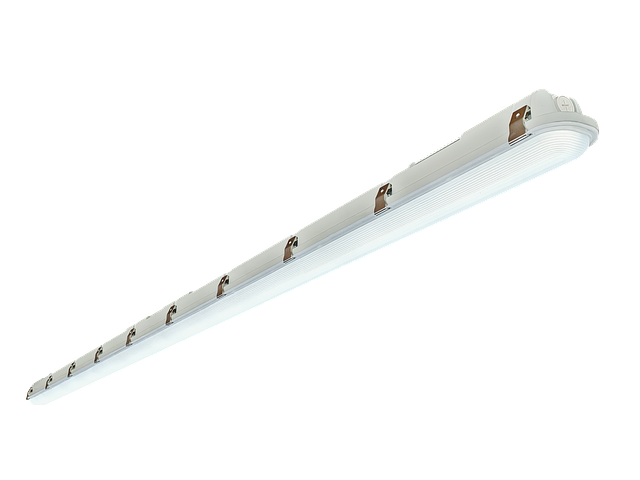

The PFX-5607 is a high-performance, 8-foot vapor-tight LED luminaire designed for durability and versatility in demanding environments1. It features a light gray polycarbonate housing with stainless steel latches and is IP66 rated for ingress protection and IK10 rated for impact resistance. This sensor-ready fixture offers field-selectable Kelvin temperatures (3500K, 4000K, 5000K) and tri-lumen output options ranging from 9,386 to 12,716 nominal lumens. Engineered for longevity, the LEDs provide up to 174,000 hours of operation (L70) and operate in temperatures from -40°C to 50°C. It comes standard with a surface mount kit and V-hooks, making it ideal for both new construction and retrofit wet-location applications.

Specification Sheet

Resources

• Operating temperature (ambient):  -40°C to 50°C (-40°F to 122°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Input transient surge protection = 2kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

CCT

  • Field Selectable CCT
  • 3500K
  • 4000K
  • 5000K

Color / Finish

  • Light Grey
  • Stainless Steel

CRI

  • 80

Efficacy

  • 128.74
  • 136.67

Lamp Life

  • 174000

Lamp Source

  • LED

Listings

  • UL

Lumens

  • 9000
  • 10000
  • 12000

Materials

  • Polycarbonate
  • Steel

Ratings & Compliance

  • FCC
  • IK10
  • IP66
  • Wet

Shape

  • Rectangular

Voltage

  • 120-277 V

Watts

  • 69
  • 79
  • 95

Weight

  • 10

Dimensions

  • L: 94.49 In. W: 3.74 In. H: 3.11 In.

Dimming Protocol

  • 0-10 V

Warranty

  • 5 yr
