PFX-5606
New Product

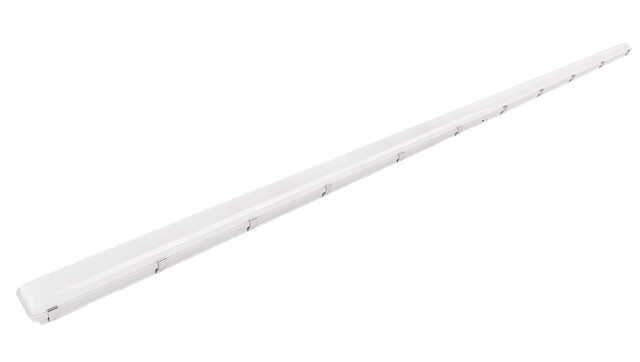

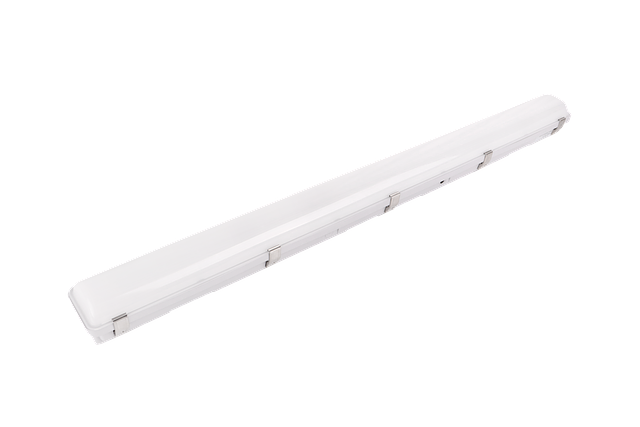

LED Vapor Tight Light with Selectable CCT and Lumen
Key Features :
Field-Selectable Flexibility: Adjust both wattage and CCT (3000K/4000K/5000K or 4000K/5000K/5700K) to meet specific site requirements.
Advanced Controls: Standard 0-10V dimming capability (100% to off) with optional factory or field-installable microwave sensors and emergency battery backups.

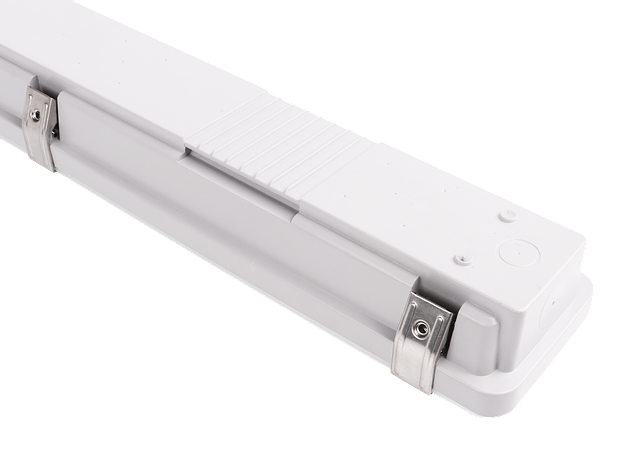

Easy Installation: Includes a standard surface mounting kit and a 3ft power cord; optional pendant mounting is also available.
High Efficiency: Delivering up to 162 LPW, this DLC Qualified fixture provides significant energy savings without compromising light quality.
Field-Selectable Flexibility: Adjust both wattage and CCT (3000K/4000K/5000K or 4000K/5000K/5700K) to meet specific site requirements.
Advanced Controls: Standard 0-10V dimming capability (100% to off) with optional factory or field-installable microwave sensors and emergency battery backups.
Easy Installation: Includes a standard surface mounting kit and a 3ft power cord; optional pendant mounting is also available.
High Efficiency: Delivering up to 162 LPW, this DLC Qualified fixture provides significant energy savings without compromising light quality.
Resources
Rugged Construction: IP65 rated and cULus listed for wet locations, featuring a durable plastic housing in a permanent pearl gray finish.
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Gray
CRI
- 80 CRI
Lamp Source
- LED
Listings
- cULus
Lumens
- 4050 Lm
- 5250 Lm
- 7700 Lm
- 10500 Lm
Materials
- Polycarbonate
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DLC Premium
- IP65
- Wet
Shape
- Linear
- Rectangular
- Rectilinear
Voltage
- 120-277 V
- 120-347 V
Watts
- 30 w
- 40 w
- 50 w
- 60 w
- 70 w
- 80 w
Weight
- 12.65 lbs
- 22.71 lbs
Dimensions
- H: 4.33 In. L: 47.83 In. W: 9.45 In.
- H: 4.33 In. L: 95.08 In. W: 9.45 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
