PFX-5608
Vapor Tight Sensor Ready Lumen & Kelvin Selectable

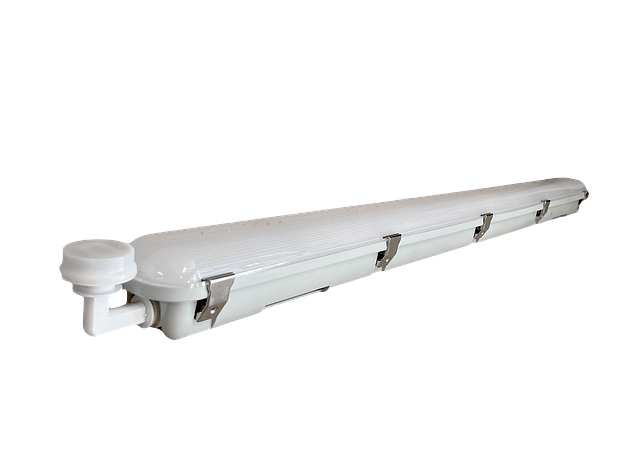

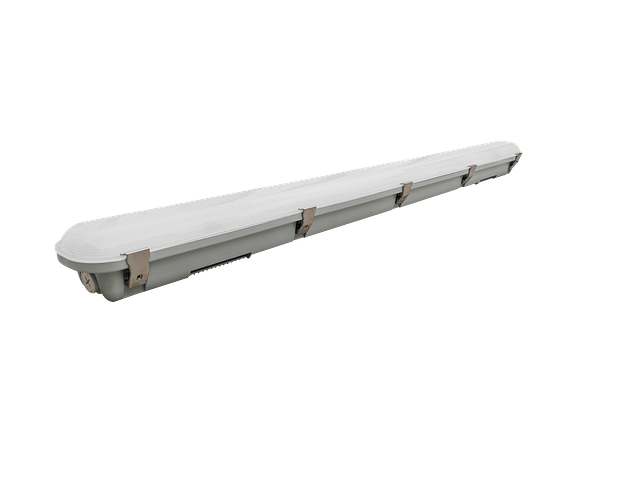

The PFX-5608 is a highly versatile, 4-foot vapor-tight LED luminaire designed for durability and precision in demanding environments. This sensor-ready fixture features field-selectable CCT (3500K, 4000K, and 5000K) and tri-lumen output ranging from 5,000 to 7,000 nominal lumens, allowing for complete on-site customization. Built to last, it boasts an impressive L70 life of 178,000 hours and a rugged polycarbonate housing with an IK10 impact rating. It is engineered for extreme conditions with an IP65 ingress protection rating and an operating temperature range of -40 Degree C to 43 Degree C . The unit comes standard with a 0-10VDC dimming driver and offers optional emergency backups or NSF certification for food equipment zones. Installation is simplified with included surface mount kits and v-hooks, making it an ideal choice for both new construction and retrofits.
Resources
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Emergency driver option available.
• Input transient surge protection = 2.5kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- Light Grey
- Stainless Steel
CRI
- 80 CRI
Efficacy
- 139.38 lm/w
Lamp Life
- 178000 hrs
Lamp Source
- LED
Listings
- cULus
Lumens
- 5000 Lm
- 6000 Lm
- 7000 Lm
Materials
- Polycarbonate
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DLC
- FCC
- IK10
- IP65
- NEMA 4X
- Wet
Shape
- Rectangular
Voltage
- 120-277 V
Watts
- 37 w
- 44 w
- 53 w
Weight
- 4.64 lbs
Dimensions
- H: 3.10 In. L: 47.24 In. W: 3.77 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
