PFX-5609

New Product

NSF Certified Food Safety Light with Selectable CCT and Lumen

The PFX-5609 is a high-performance, NSF-certified vapor-tight luminaire designed for food safety and industrial environments. This rugged fixture offers best-in-class efficiency at 150 lm/W and features a smooth, dust-proof exterior capable of withstanding high-pressure washdowns. Engineered for ultimate flexibility, it includes field-selectable wattage and CCT (3500K/4000K/5000K) to suit any application. Built with a UV-stabilized polycarbonate lens and a 0-10V dimmable driver, it ensures uniform, reliable lighting in temperatures ranging from -40°F to 113°F. Whether surface-mounted or suspended, the PFX-5609 provides a durable, energy-efficient solution for kitchens, processing plants, and manufacturing facilities.

Specification Sheet

Resources

Specsheets


Rugged and durable construction with  plastic  housing.
• 0-10V dimmable driver, which can dim from 100%down to off.
• Input voltage AC120-277V for US market,AC120-347V for Canada market, and 50/60Hz.

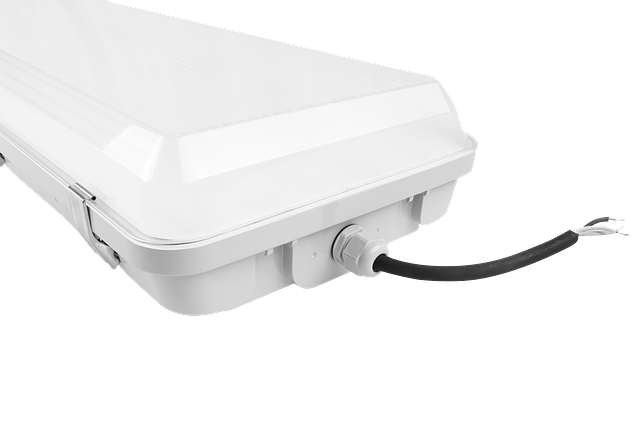

3ft (36") long power cord provided for easier installation. The power cord is in the lamp body and needs to be led out by yourself.

CCT

  • 3500K
  • 4000K
  • 5000K

Color / Finish

  • Grey

CRI

  • 80 CRI

Lamp Source

  • LED

Listings

  • UL
  • cULus

Lumens

  • 16900 Lm
  • 18650 Lm
  • 23000 Lm

Materials

  • Plastic
  • Polycarbonate

Ratings & Compliance

  • DLC
  • IP65
  • NSF
  • Wet

Shape

  • Rectangular

Voltage

  • 120-277 V
  • 120-347 V

Watts

  • 105 w
  • 135 w
  • 165 w

Weight

  • 16.49 lbs

Dimensions

  • H: 5.91 In. L: 48.43 In. W: 12.01 In.

Dimming Protocol

  • 0-10 V

Warranty

  • 5 yr
