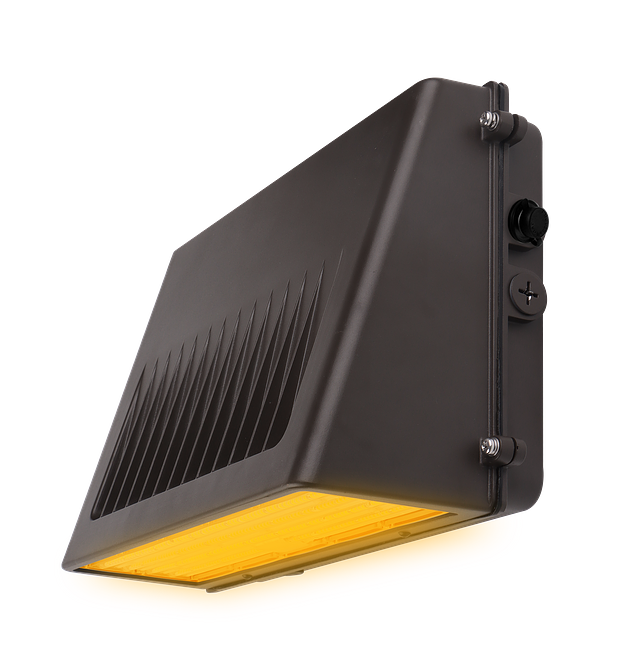

Amber WPD 63WS DC.png

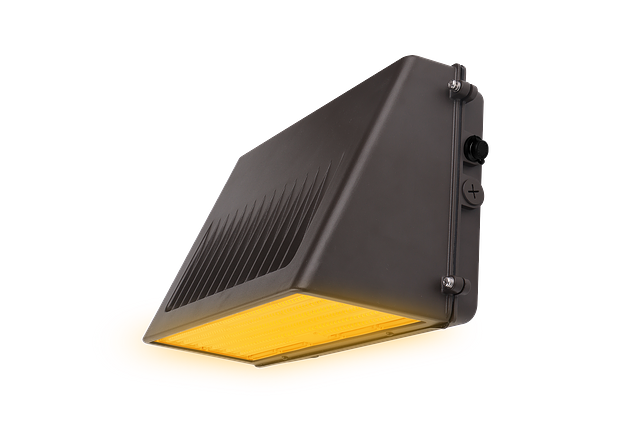

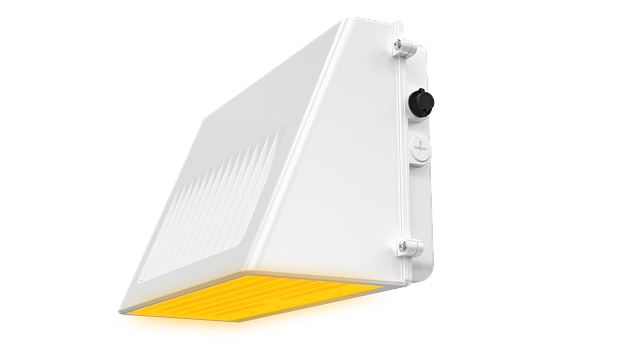

Amber WPD 125WS WC.png
Amber WPD 125WS DC.png

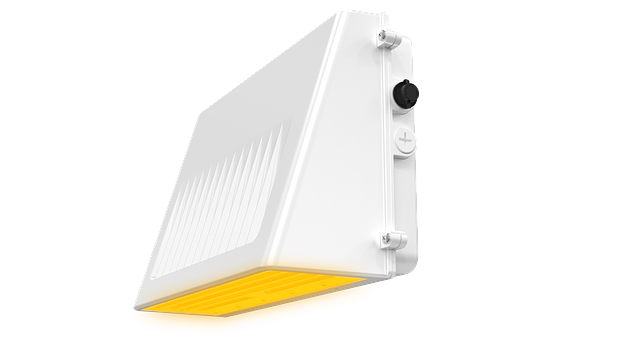

Amber WPD 63WS WC.pngPFX-3162
New Product
Amber LED Full Cut-off Wall Pack Light for Turtle Safe
• PFX- 3162 is specifically designed for Turtle Safe compliance, emitting amber light with a wavelength of 590 nanometers. While meeting pedestrians' nighttime lighting requirements, it minimizes ecological disturbance to marine life.
• PFX-3162 Light matches traditional metal halide wall lights in size, fully covering old stains. A high-quality polycarbonate lens, which works with a high-efficiency light engine to provide superior illumination.
• Low-impact exterior wall lighting ideal for coastal buildings, farm warehouses, residential exteriors, and environmentally sensitive areas.
• PFX-3162 Light matches traditional metal halide wall lights in size, fully covering old stains. A high-quality polycarbonate lens, which works with a high-efficiency light engine to provide superior illumination.
• Low-impact exterior wall lighting ideal for coastal buildings, farm warehouses, residential exteriors, and environmentally sensitive areas.
Resources
Rugged die-casting aluminum housing with bronze powder coating for durability. Castings are sealed with integral gaskets to prevent the ingress of external contaminants.
• Equipped with a 0-10V continuous driver; Min.Dim Level:
• 0%. The dimming wires are available for connection to a dimmer.
• Input voltage is 120-277VAC, 50/60Hz.
• Designed to withstand surges of up to L/N-PE:6kV and
L- N:4kV.
• 0%. The dimming wires are available for connection to a dimmer.
• Input voltage is 120-277VAC, 50/60Hz.
• Designed to withstand surges of up to L/N-PE:6kV and
L- N:4kV.
Color / Finish
- Black
- Dark Bronze
- Silver
- White
Controls Options
- Photocell
Dimming Range
- 0-100%
Efficacy
- 38.40
- 41.27
Lamp Life
- 54000
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 2600
- 4800
Materials
- Die-Cast Aluminum
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Turtle Safe
- Wet
Shape
- Rectangular
Static LED Color
- Amber
Voltage
- 120-277 V
Watts
- 63
- 125
Weight
- 7.94
- 11.46
Dimensions
- L: 14.33 In. W: 14.33 In. H: 9.26 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
