PFX-3133

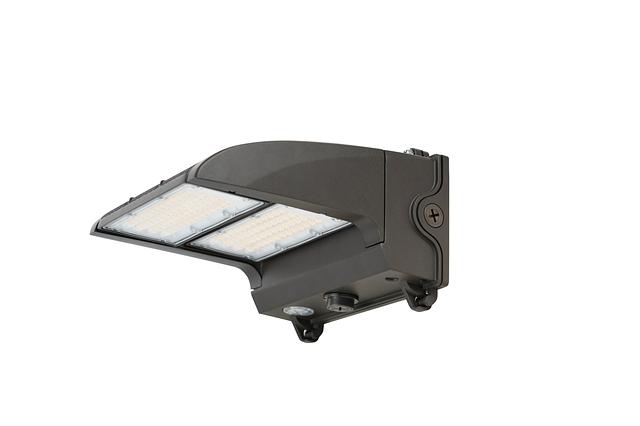

Image-3133-19161310L-3CCT-Left facing-light off-23-Oct-2025.jpg

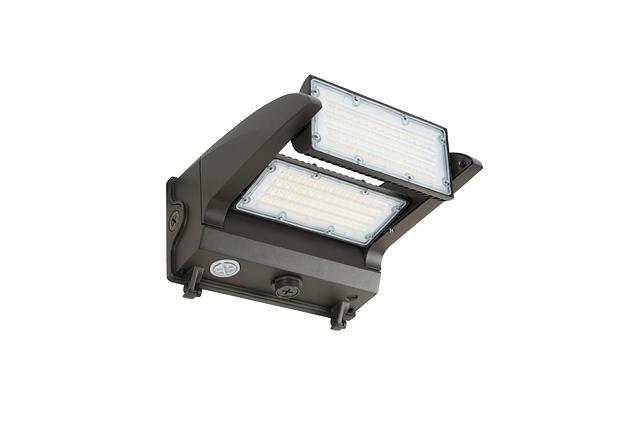

Image-Right facing-light off-31-Oct-2025.jpgPFX-3133
Rotatable Wall Pack Sensor Ready
The PARAFLEX PFX-3133 is a high-performance, sensor-ready rotatable LED wall pack designed for versatile commercial outdoor lighting. It features a premium bronze powder-coated, die-cast aluminum housing paired with a durable polycarbonate lens. Two modules can independently rotate -15° to 210°., providing highly focused, targeted illumination. The fixture is fully customizable, offering field-selectable color temperatures (3000K/4000K/5000K) and selectable lumen outputs up to 18,713 nominal lumens. Equipped with standard 0-10V dimming, 6kV surge protection, and a toggleable integrated photocell, it delivers exceptional energy-efficient performance. Rated IP65 for wet locations and IK08 for impact resistance, this cULus and DLC Premium listed wall pack ensures long-lasting durability backed by a 5-year warranty.
Resources
122°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled
or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Microwave Sensor
- PIR Sensor
- Photocell
CRI
- 80
Efficacy
- 136
- 166
- 171
Lamp Life
- 48000
- 159000
Lamp Source
- LED
Listings
- cULus
Lumens
- 10000
- 13000
- 16000
- 19000
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- DLC Premium
- FCC
- IK08
- IP65
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 60
- 80
- 100
- 120
Weight
- 5
Dimensions
- L: 9.37 In. W: 6.27 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
