PFX-3606

New Product

Round Canopy Luminaire Sensor Ready

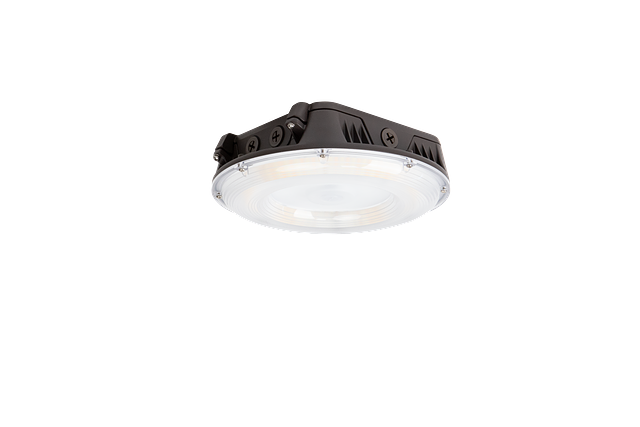

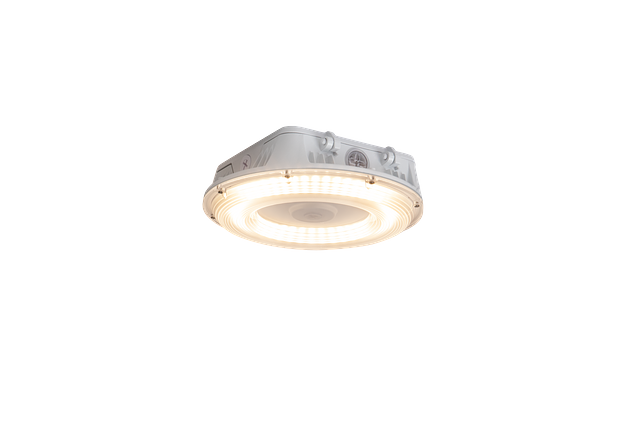

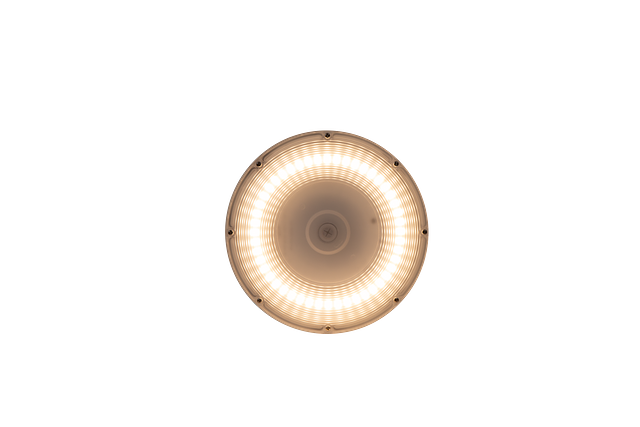

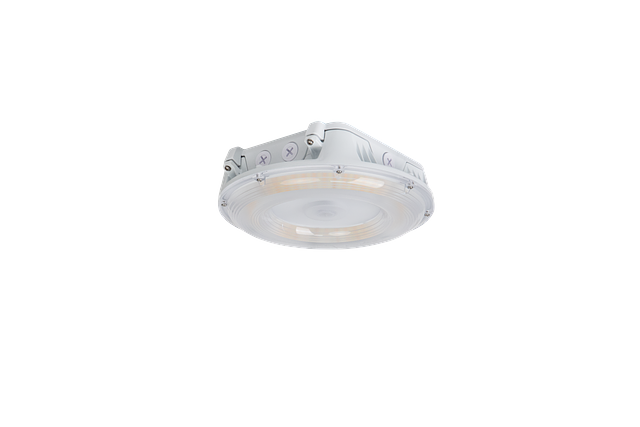

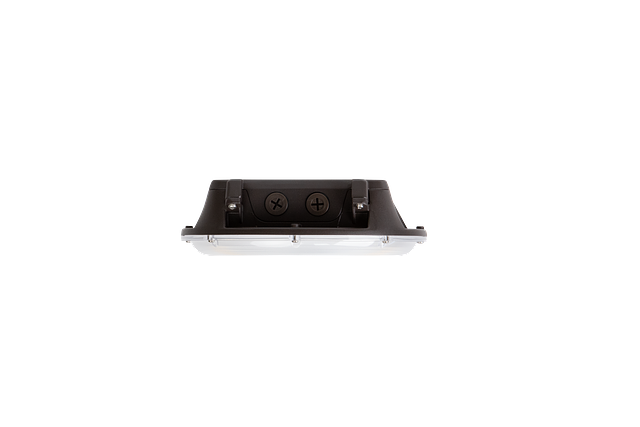

The PFX-3606 is a versatile round canopy luminaire designed for high-performance lighting in wet locations. This sensor-ready fixture features field-selectable technology, allowing users to choose between three color temperatures (3000K, 4000K, or 5000K) and five lumen outputs ranging from approximately 3,000 to 11,000 lumens. Constructed with a durable die-cast aluminum housing and a polycarbonate lens, it boasts an IP65 ingress rating and IK10 impact protection. The unit is equipped with standard 0-10V dimming, an integrated photocell, and 6kV surge protection for enhanced reliability. Its long-life LEDs are rated for up to 167,000 hours, ensuring significantly reduced maintenance costs over time. Supporting both surface and pendant mounting, the PFX-3606 is a flexible solution for various commercial and industrial environments.

Specification Sheet

Resources

• Operating temperature (ambient): -40°C to 45°C (-40°F to 113 F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.

CCT

  • 3000K
  • 4000K
  • 5000K

Color / Finish

  • Bronze
  • White

Controls Options

  • Photocell

CRI

  • 80 CRI

Efficacy

  • 147.07 lm/w
  • 154 lm/w

Lamp Life

  • 51000 hrs

Lamp Source

  • LED

Listings

  • UL
  • cULus

Lumens

  • 3000 Lm
  • 6000 Lm
  • 8000 Lm
  • 10000 Lm
  • 11000 Lm

Materials

  • Die-Cast Aluminum
  • Polycarbonate

Ratings & Compliance

  • DLC Premium
  • FCC
  • IK10
  • IP65
  • Wet

Shape

  • Round

Voltage

  • 120-277 V

Watts

  • 20 w
  • 40 w
  • 55 w
  • 63 w
  • 74 w

Weight

  • 4.93 lbs

Beam Angle

  • 135

Dimensions

  • L: 10 In. W: 10 In.
  • H: 3.06 In.

Dimming Protocol

  • 0-10 V

Warranty

  • 5 yr
