PFX-3308
New Product

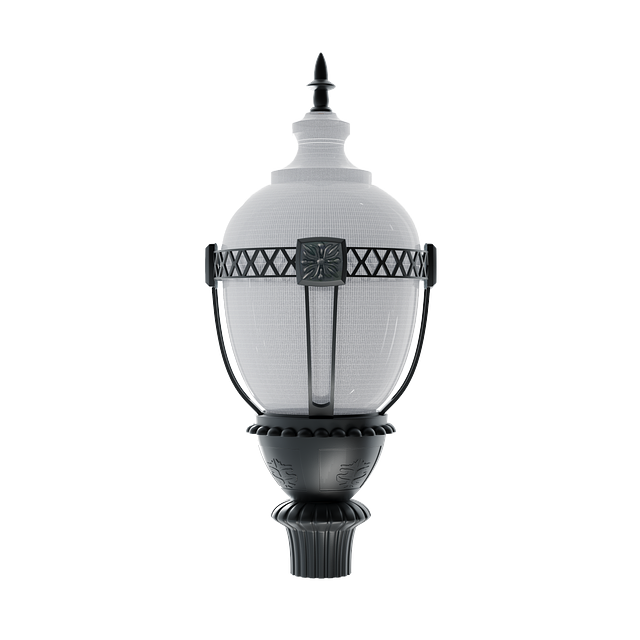

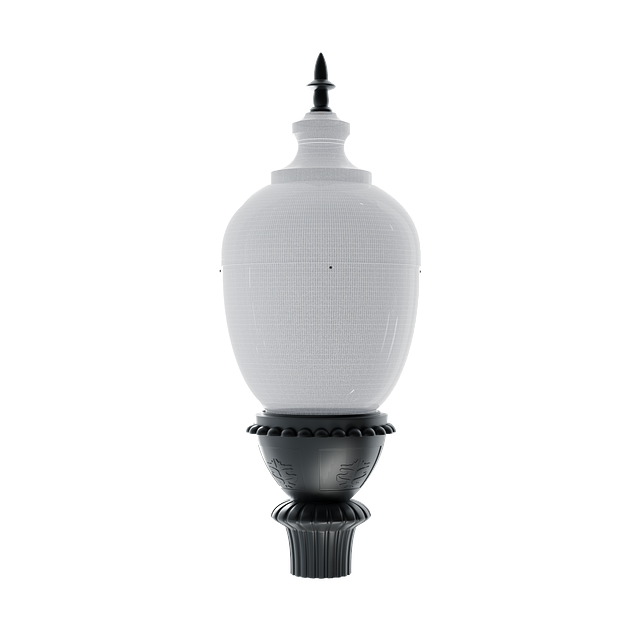

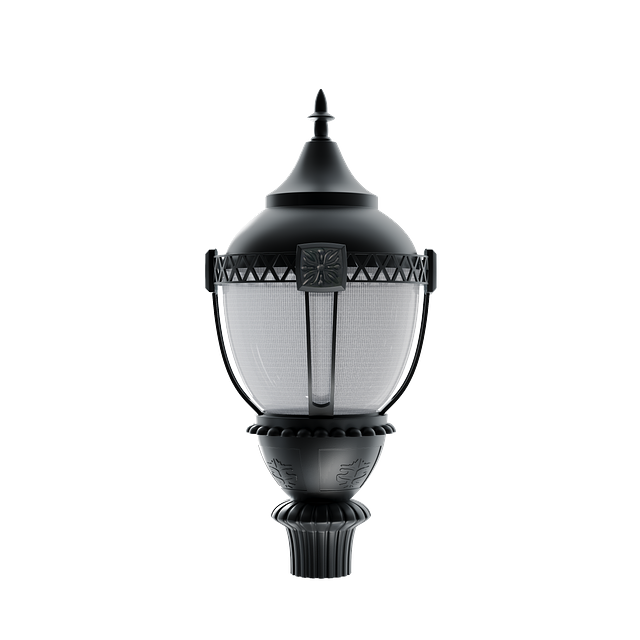

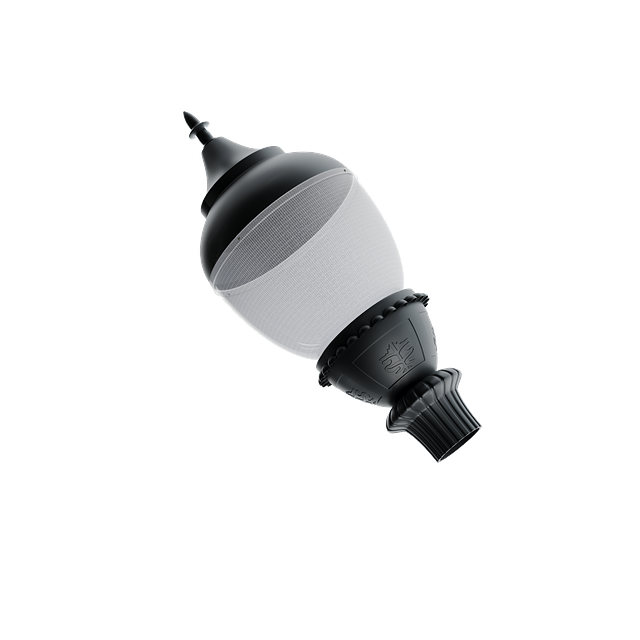

Classic Acorn Post Top Light
The PARAFLEX PFX-3308 Post Top Light is an outdoor lighting solution engineered with a strong, die-cast aluminum body and a tempered glass refractor. Delivering up to 120 LM/W high efficacy with 3030 LEDs, this fixture provides energy-efficient illumination ranging from 3,000 to 9,600 lumens. It offers field versatility through tunable wattage settings (25W, 40W, 60W, 80W) and selectable CCT temperatures (3000K, 4000K, 5000K). Designed to withstand harsh environments, it features an IP65 wet-location rating, IK08 impact resistance, and operates across temperatures from -40°F to 104°F (-40°C to +40°C). The light is equipped with 0–10V dimming capability and built-in surge protection (4KV L-N / 6KV L/N-PG) for stable electrical performance. Optional controls include a pluggable microwave motion sensor, a photocell, and an 8W emergency battery backup system. Standard finish is Black Color. Customize color options are available. Rated for a long service life exceeding 50,000 hours, it comes ETL/DLC 5.1 Premium listed and backed by a 5-year warranty.
Resources
die-cast aluminum body and a tempered glass refractor.
input Volatage 120-277Vac
Power Factor 0.9
Power Frequency 50/60Hz
Power Efficiency >92%
Total Harmonic Distortion <15%
Dimming 0-10V
Driver Kerham
Surge Protection L -N : 4KV, L/N - PG : 6KV
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
Controls Options
- Dimmable
- Photocell
CRI
- 70
Efficacy
- 120
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 50000
Lamp Source
- LED
Listings
- ETL
Lumens
- 3000
- 4800
- 7200
- 9600
Materials
- Die-Cast Aluminum
- Tempered Glass
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DLC
- IK08
- IP65
- RoHS
- TAA
- Wet
Shape
- Acorn
Voltage
- 120-277 V
Watts
- 25
- 40
- 60
- 80
Weight
- 13.2
Dimensions
- L: 12.60 In. W: 12.60 In. H: 21.26 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
