PFX-3605

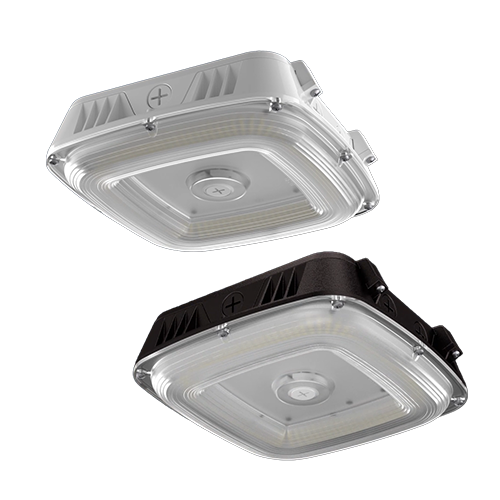

CPSR_two colors_500x500.png

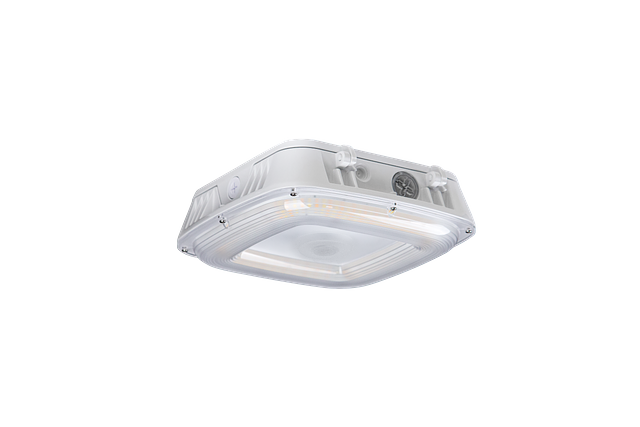

Image-Right facing-light off-25-Jul-2025.png

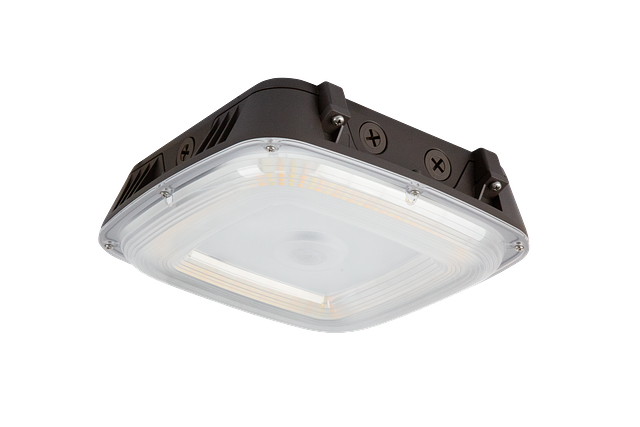

Image-Iso-Right Facing-CPSR_24043-21-April-2025.png
Resources
• Operating temperature (ambient): -40°C to 45°C (-40°F to 113 F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
- White
Controls Options
- Photocell
CRI
- 80 CRI
Efficacy
- 153.2 lm/w
Lamp Life
- 51000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 3000 Lm
- 6000 Lm
- 8000 Lm
- 10000 Lm
- 12000 Lm
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- FCC
- IK10
- IP65
- Wet
Shape
- Square
Voltage
- 120-277 V
Watts
- 20 w
- 40 w
- 60 w
- 68 w
- 75 w
Weight
- 4.69 lbs
Beam Angle
- 135
Dimensions
- H: 3.18 In. L: 10 In. W: 10 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
