PFX-3731

New Product

Tennis and Pickleball Area and Flood Light

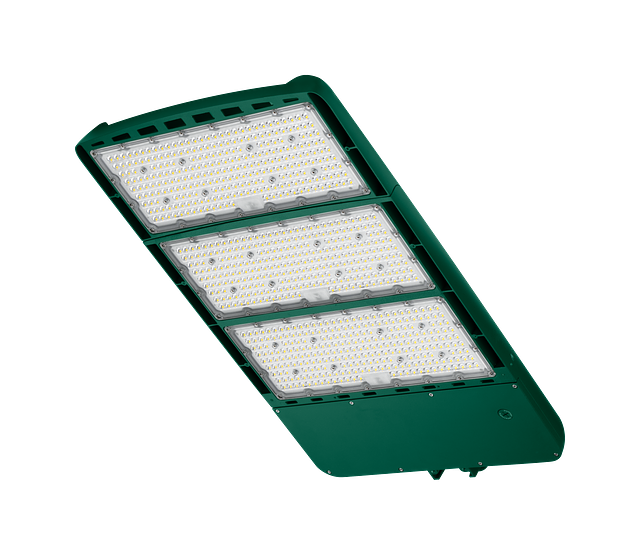

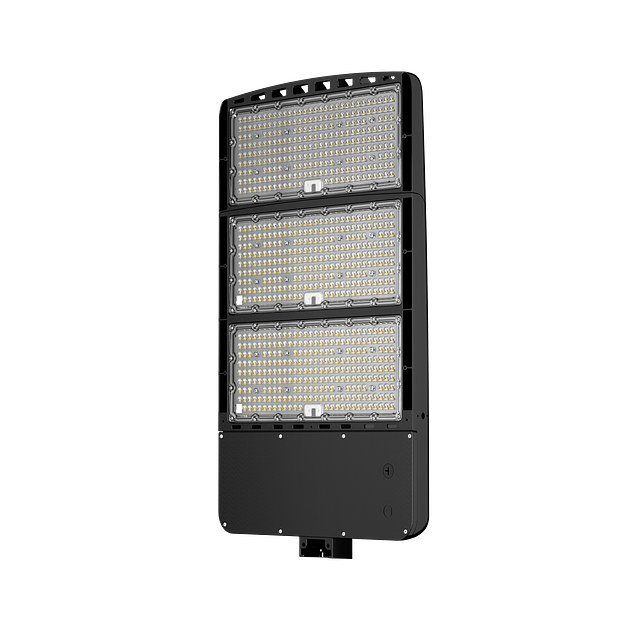

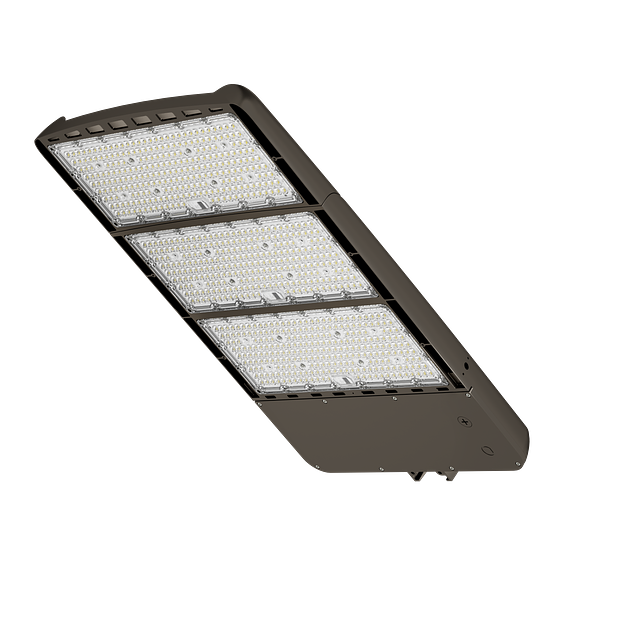

The PFX-3731 is a high-performance LED lighting solution specifically engineered for sports venues like tennis and pickleball courts. This versatile fixture offers selectable wattage options, delivering between 40,800 and 102,000 lumens to efficiently replace traditional 500W to 1,200W HID luminaires. Built for durability, it features a rugged die-cast aluminum body with advanced thermal management and a 3G vibration-rated compact design. Precision optics are available in multiple color temperatures (3000K–5000K) with specialized distributions for standard court and sports field layouts. For enhanced utility, the unit supports advanced controls including photocells, motion sensors, and wireless networking. Backed by a 10-year limited warranty and DLC 5.1 Premium listing, it provides a reliable, energy-saving choice for schools, community courts, and professional sports facilities.
Specification Sheet

Resources

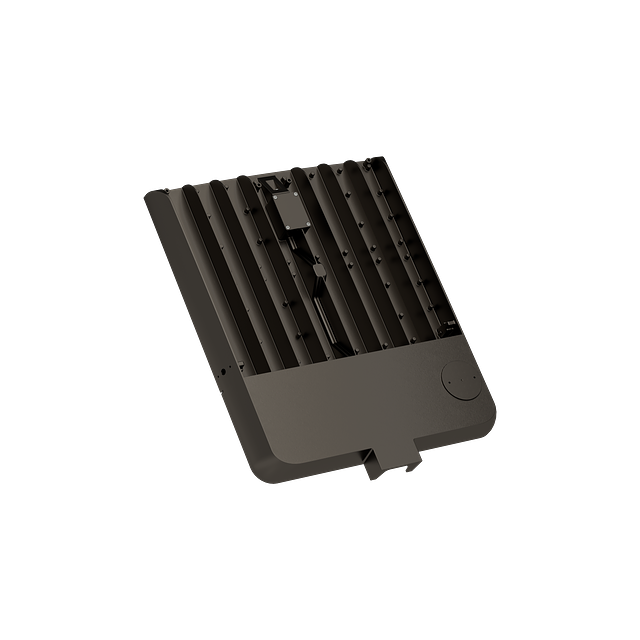

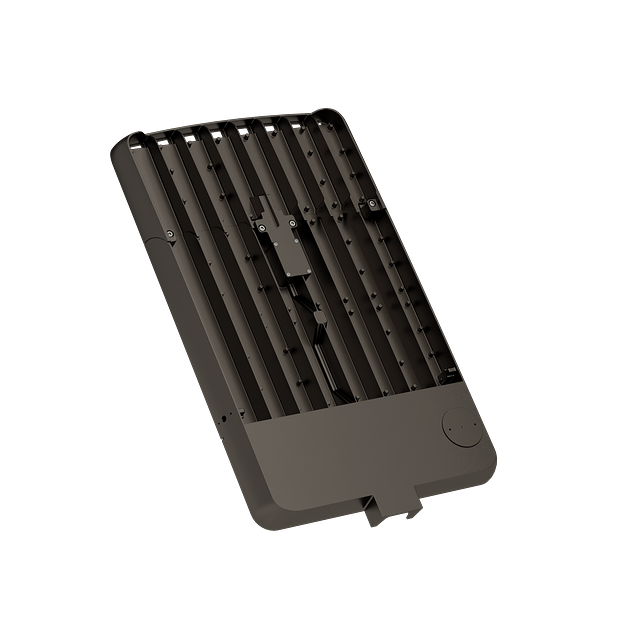

Tennis and Pickleball Light features a rugged die-cast aluminum body that uses heatsink and flow-through venting to provide optimal thermal management that both enhances LED performance and extends component life. The light housing issealed against moisture and environmental contaminants. The 3G vibration rated compact design minimizes wind load requirements. With a low EPA, it allows pole  optimization.
• The Input voltage is AC120-277V/AC277-480V (50/60Hz). • All models are designed to withstand up to L/N-PE: 20kV, L-N: 20kV surge. • Equipped with a 0-10V dimmable driver. The fixtures do not have dimming wires led out by default; an additional cost will be required for modification to include them. • Power Factor ≥0.9 • THD≤20% • 2 (24")long power cord provided for easier  installation.

CCT

  • 3000K
  • 4000K
  • 5000K

Color / Finish

  • Black
  • Dark Bronze
  • Dark Green
  • Silver
  • White

Controls Options

  • Bluetooth
  • Motion Sensor
  • Photocell
  • Wireless Control

CRI

  • 70

Distribution

  • Type III

Efficacy

  • 170

Lamp Source

  • LED

Listings

  • cULus

Lumens

  • 68000
  • 102000

Materials

  • Die-Cast Aluminum

Mounting

  • Pole

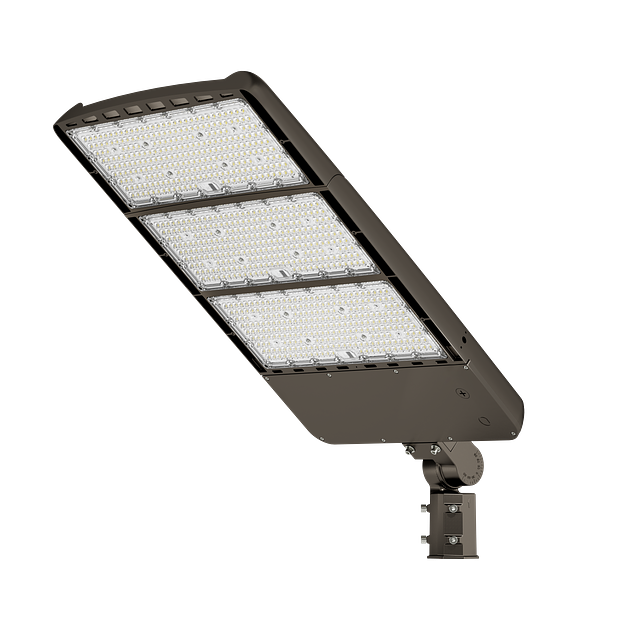

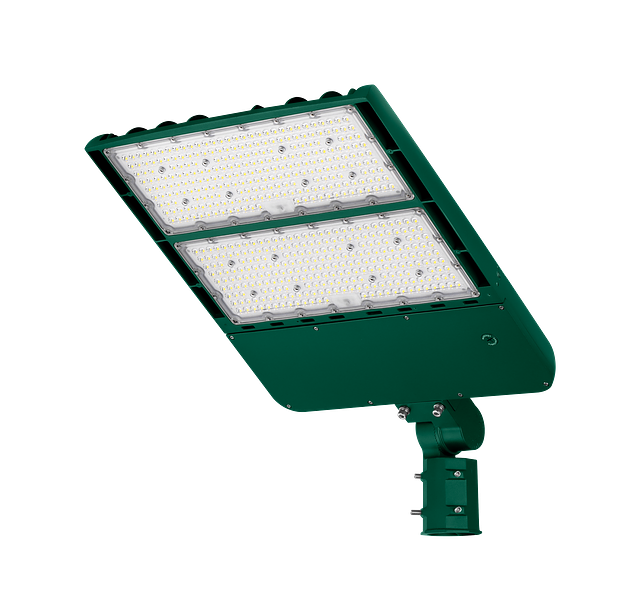

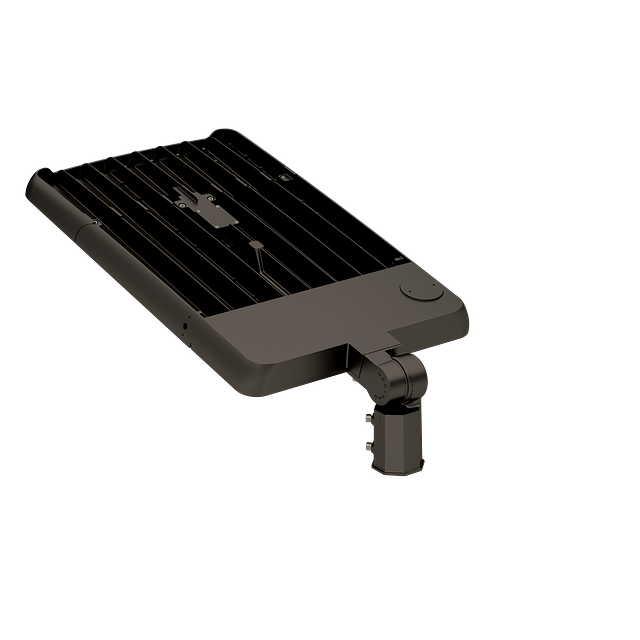

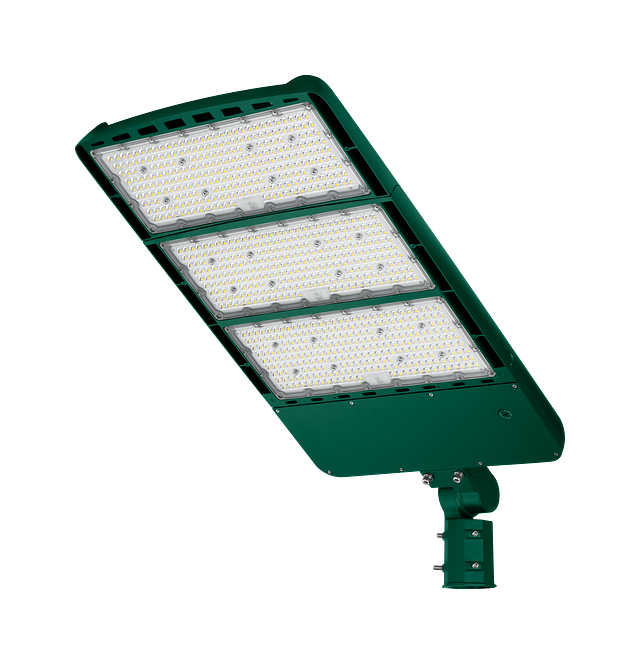

  • Slip Fitter

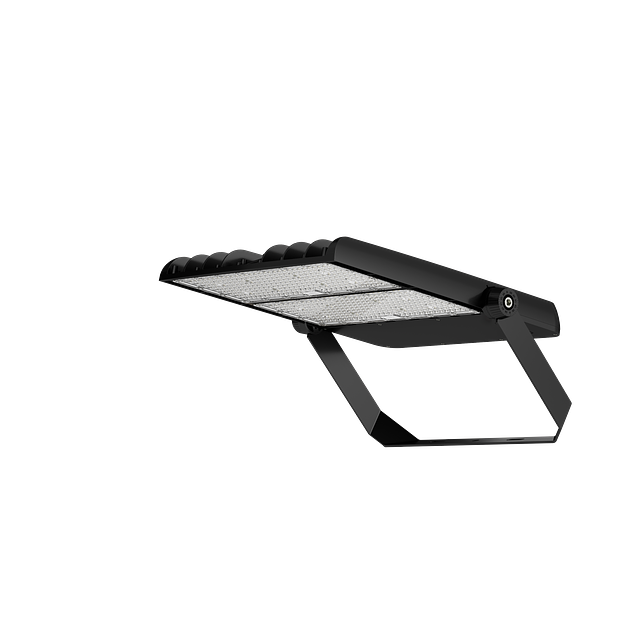

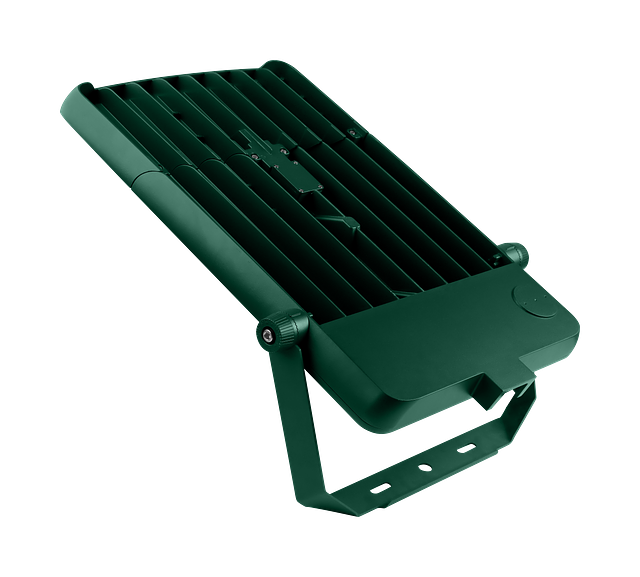

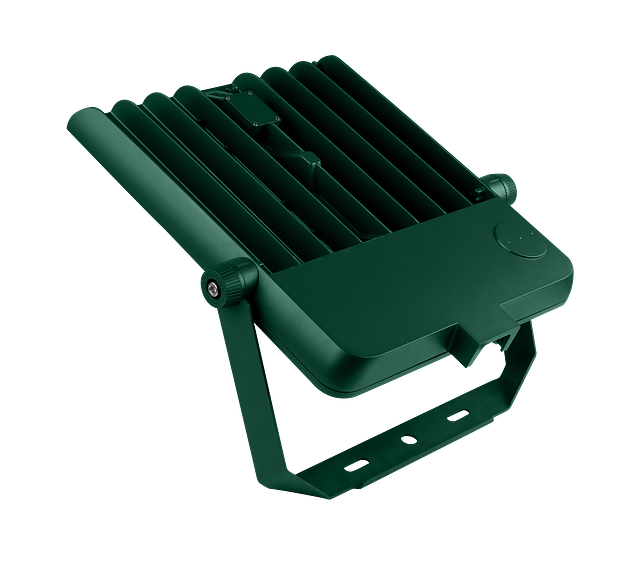

  • Trunnion

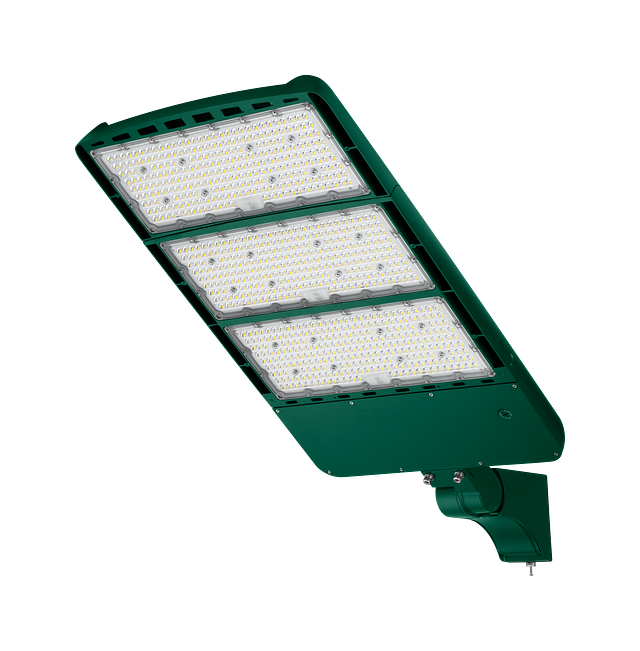

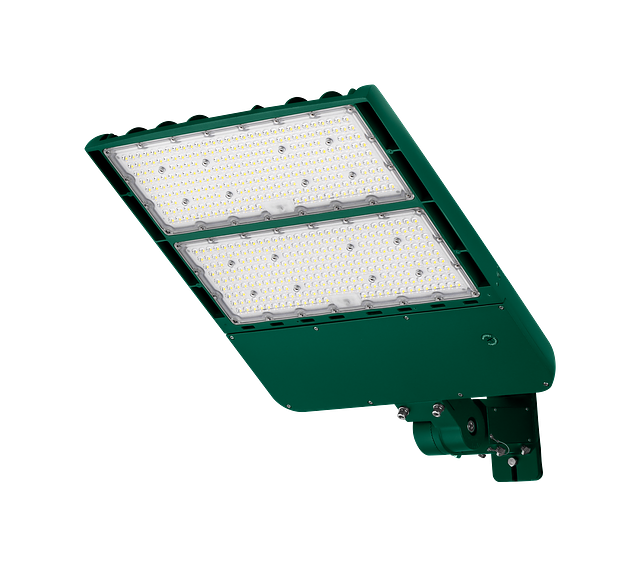

  • Universal Mounting Arm

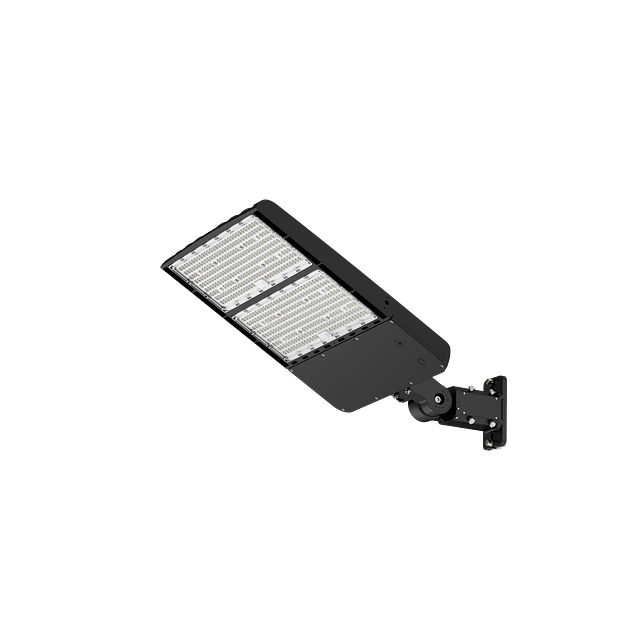

  • Wall

Ratings & Compliance

  • DLC Premium
  • Wet

Shape

  • Rectangular

Voltage

  • 120-277 V
  • 277-480 V

Watts

  • 240
  • 320
  • 360
  • 400
  • 480
  • 600

Application

  • Pickle Ball Court
  • Tennis Court

Dimming Protocol

  • 0-10 V

Warranty

  • 10 yr
