PFX-3153

New Product

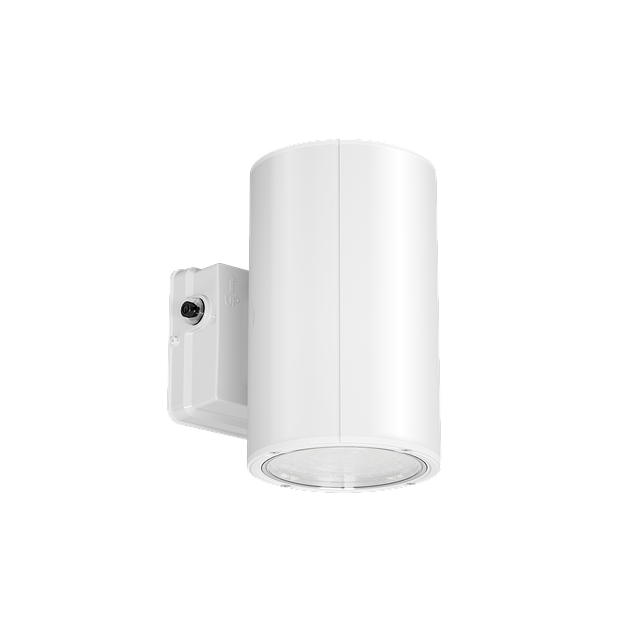

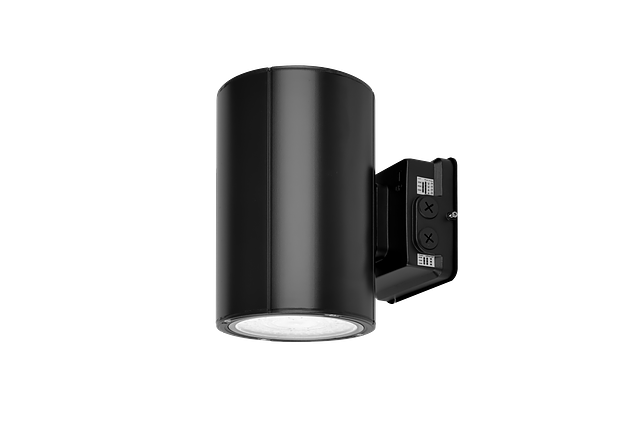

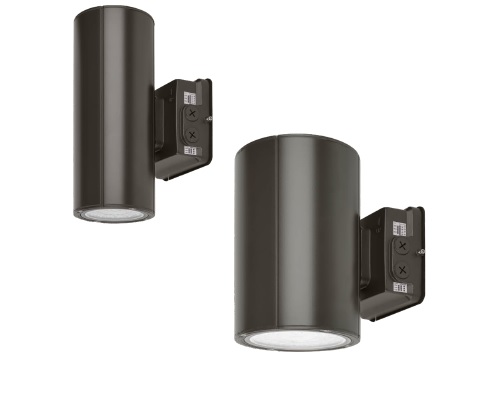

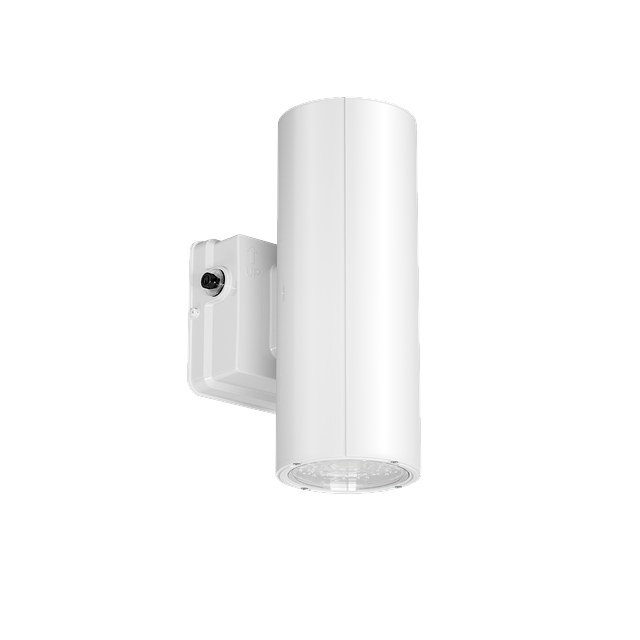

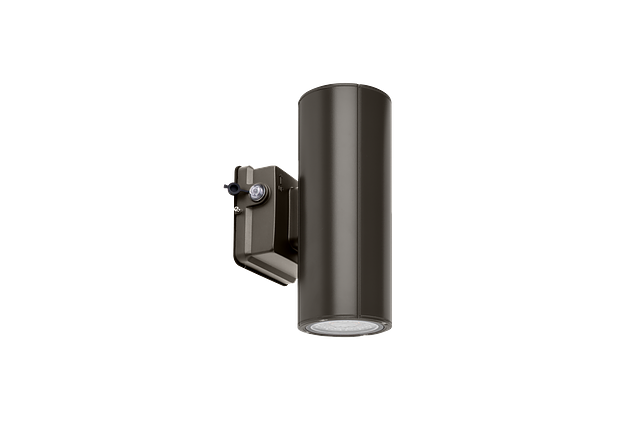

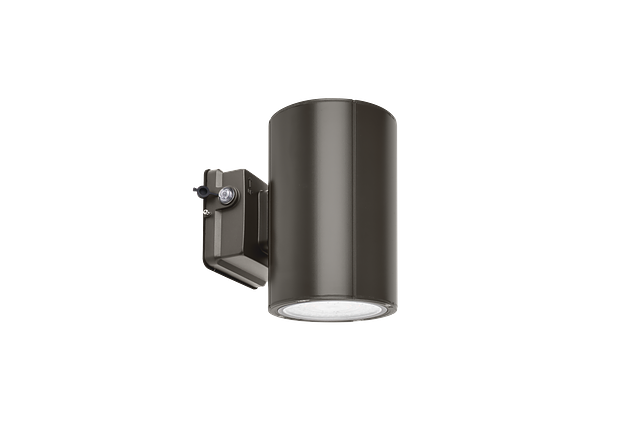

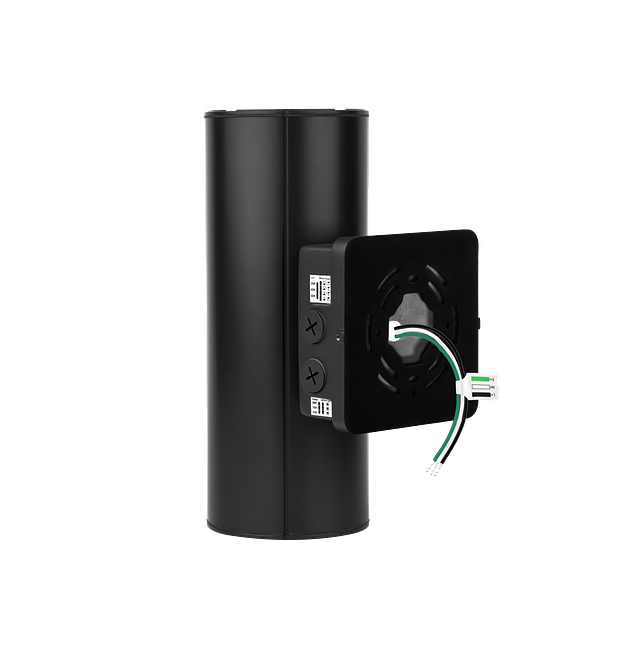

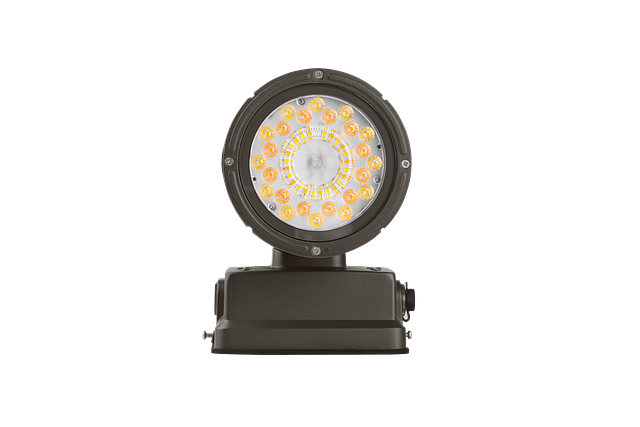

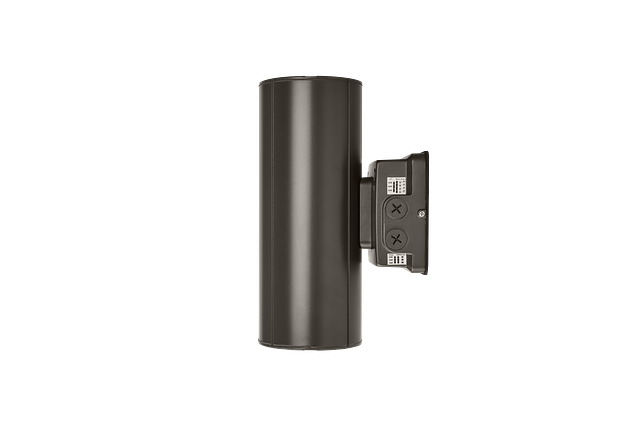

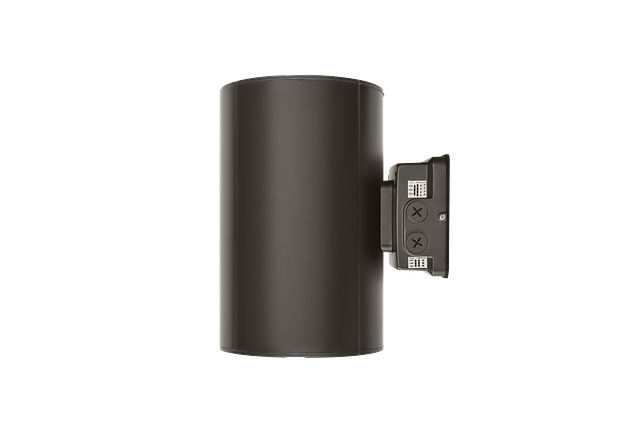

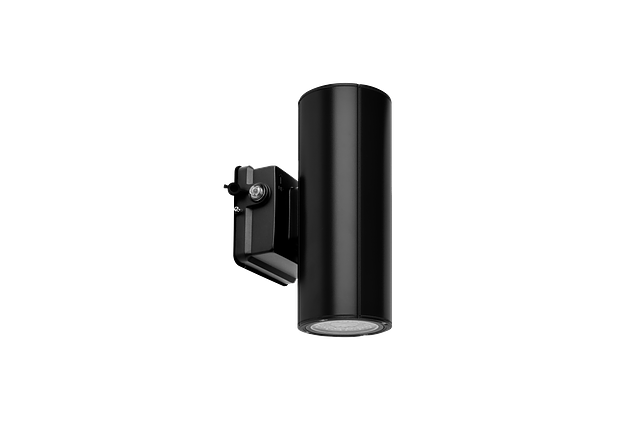

LED Cylinder Light Power and CCT Selectable

• The PFX-3153 Cylinder Light is a contemporary, stylish lighting solution that seamlessly blends architectural sophistication with practical functionality. Its sleek, cylindrical design offers both aesthetic appeal and efficient performance. • The fixture provides a range of customizable options, including selectable wattage, color temperature (CCT), light distribution, and adjustable lighting direction, allowing for easy adaptation to various environments and lighting requirements. • Equipped with a standard photocell, it ensures effortless control of lighting conditions while optimizing energy efficiency. • Ideal for a wide range of applications—such as building entrances, walkways, stairwells, bridges, exterior facades, conference rooms, and auditoriums—the PFX-3153 Cylinder Light strikes the perfect balance between design, functionality, and exceptional illumination.

Specification Sheet

Resources

Heavy-gauge aluminum housing.
0-10V dimmable driver. The dimming wire is not led out from the fixture.
• Input voltage 120-277Vac for US market,
• 347Vac for Canada market, and 50/60Hz.

CCT

  • 3000K
  • 4000K
  • 5000K

Color / Finish

  • Black
  • Dark Bronze
  • White

Distribution

  • Narrow
  • Wide

Lamp Source

  • LED

Listings

  • UL
  • cULus

Lumens

  • 2400 Lm
  • 4560 Lm

Materials

  • Aluminum

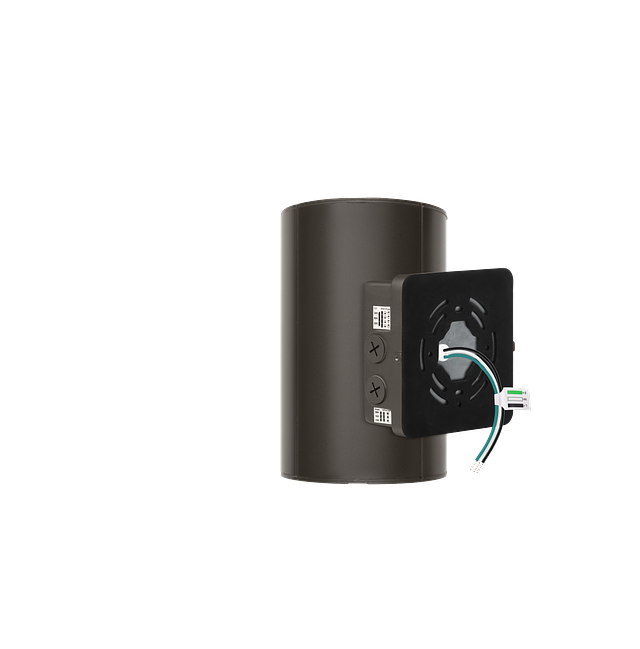

Mounting

  • Wall

Ratings & Compliance

  • Wet

Shape

  • Cylinder

Voltage

  • 120-277 V

Watts

  • 10 w
  • 20 w
  • 38 w

Weight

  • 20.90 lbs
  • 27.03 lbs

Dimensions

  • H: 11.81 In. L: 7.09 In. W: 5.63 In.
  • H: 9.84 In. L: 8.64 In. W: 5.63 In.

Dimming Protocol

  • 0-10 V

Warranty

  • 5 yr
