PFX-3161
New Product

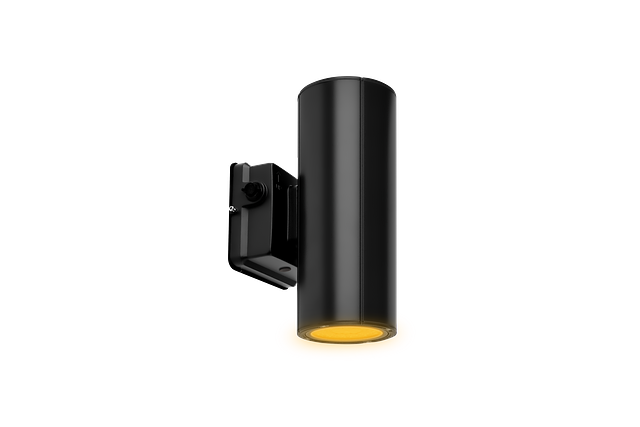

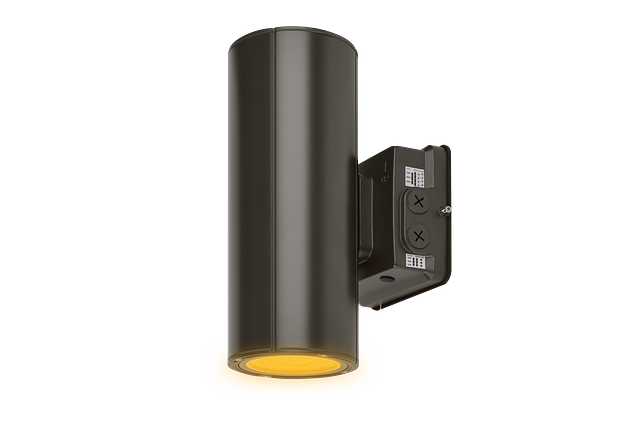

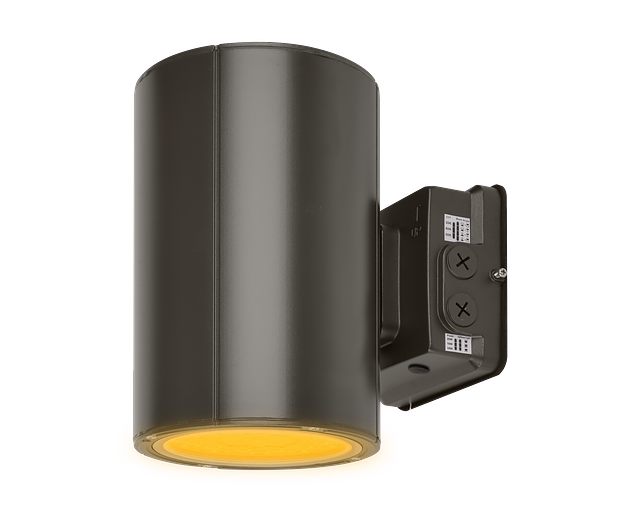

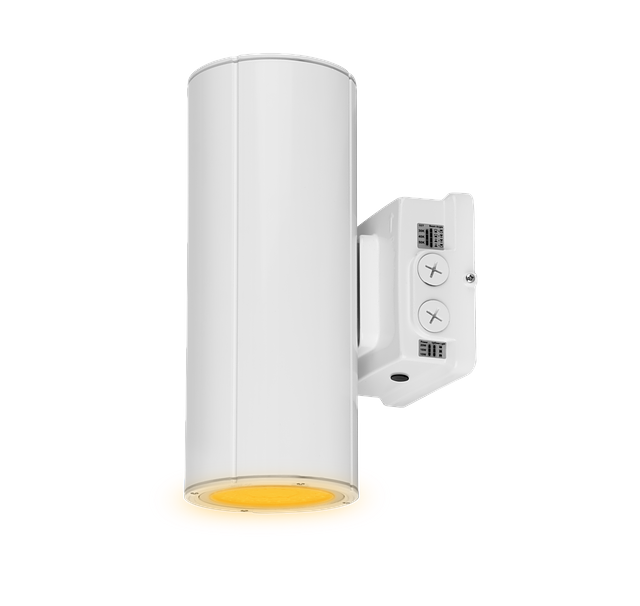

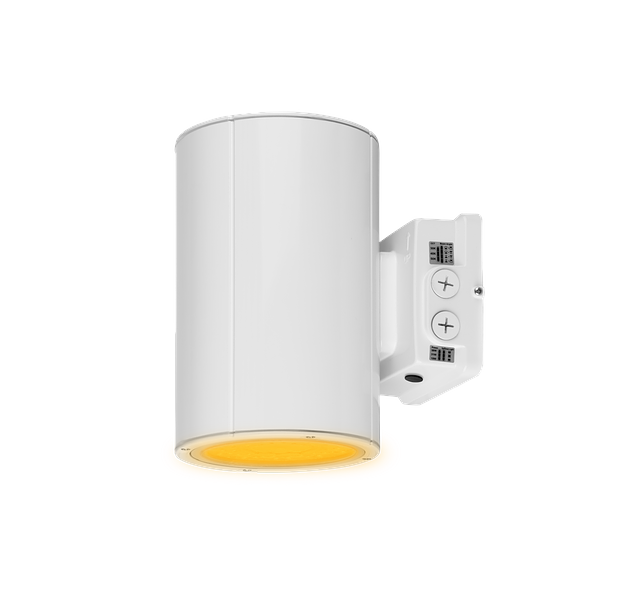

Amber LED Cylinder Light for Turtle Safe
The PFX-3161 is specifically designed for Turtle Safe compliance, emitting amber light with a wavelength of 590 nanometers. While meeting pedestrians' nighttime lighting requirements, it minimizes ecological disturbance to marine life.
• This light fixture features versatile adjustable functions, including wattage selectable and adjustable beam direction, allowing users to easily modify settings to suit various environments and lighting requirements.
• With standard photocell, ensuring that you can effortlessly manage lighting conditions while maximizing energy efficiency.
• Low-impact exterior wall lighting ideal for coastal buildings, farm warehouses, residential exteriors, and environmentally sensitive areas.
• This light fixture features versatile adjustable functions, including wattage selectable and adjustable beam direction, allowing users to easily modify settings to suit various environments and lighting requirements.
• With standard photocell, ensuring that you can effortlessly manage lighting conditions while maximizing energy efficiency.
• Low-impact exterior wall lighting ideal for coastal buildings, farm warehouses, residential exteriors, and environmentally sensitive areas.
Resources
Heavy-gauge aluminum housing.
• Equipped with a 0-10V continuous dimmable driver; Min.Dim Level:0%. However, the dimming wires are already occupied and cannot be used for external dimmer control.
• Input voltage is 120-277VAC, 50/60Hz.
• Input voltage is 120-277VAC, 50/60Hz.
Circuit
- Single
Color / Finish
- Black
- Dark Bronze
- White
CRI
- 80
Lamp Source
- LED
Listings
- cULus
Lumens
- 750
- 1400
Materials
- Aluminum
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Turtle Safe
- Wet
Shape
- Cylinder
Voltage
- 100-277 V
Watts
- 10
- 16
- 19
- 20
- 31
- 38
Weight
- 20.90
- 27.03
Dimensions
- L: 4.6 In. W: 3.15 In. H: 5.3 In.
- L: 4.6 In. W: 3.15 In. H: 8.35 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
