Wall Mount-1.pngPFX-3208

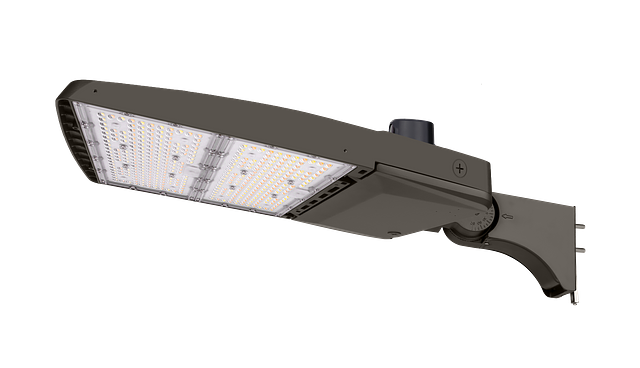

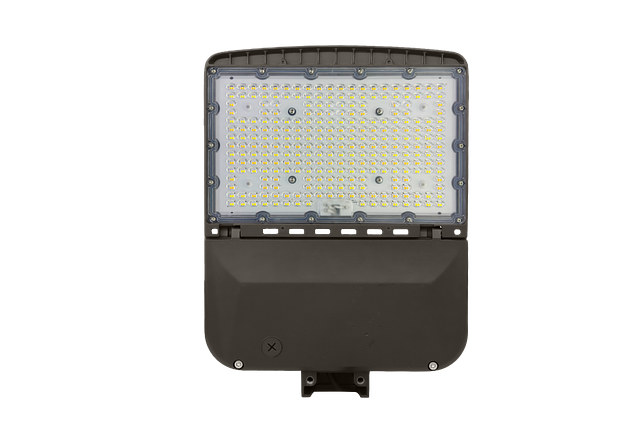

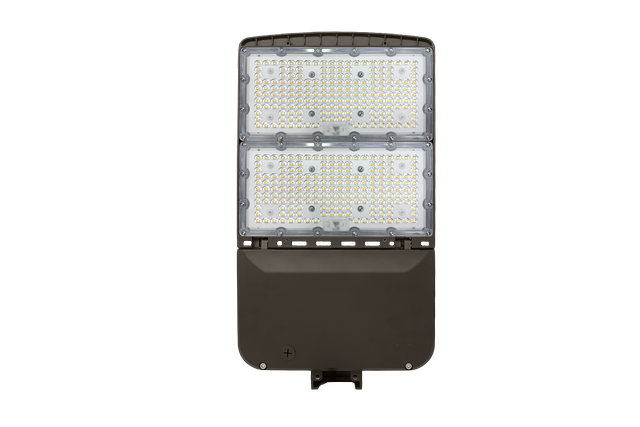

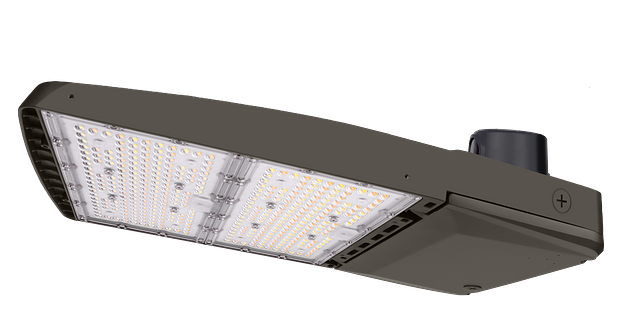

LED AREA LIGHT

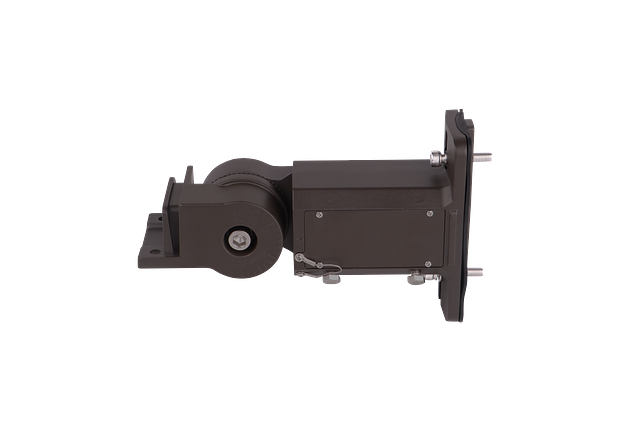

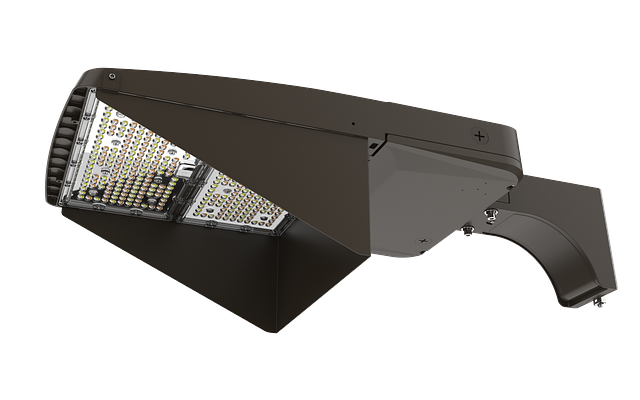

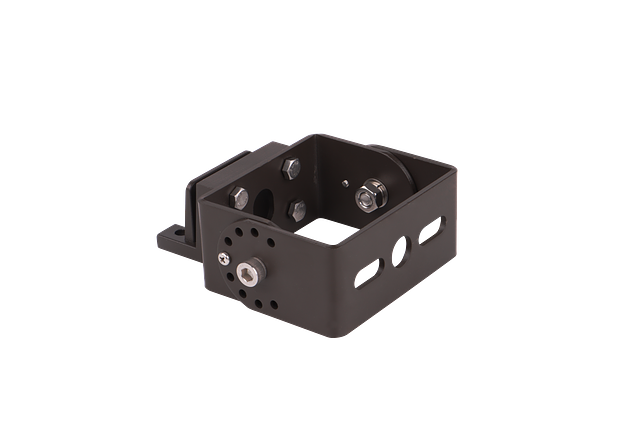

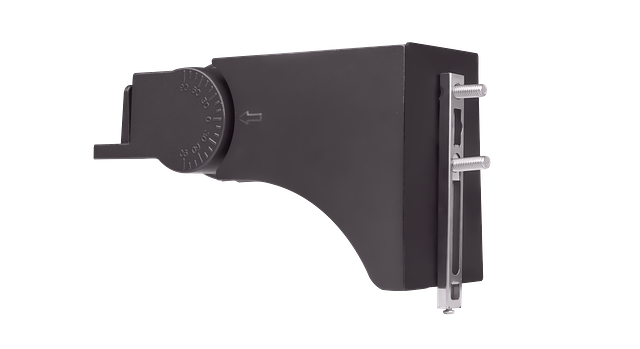

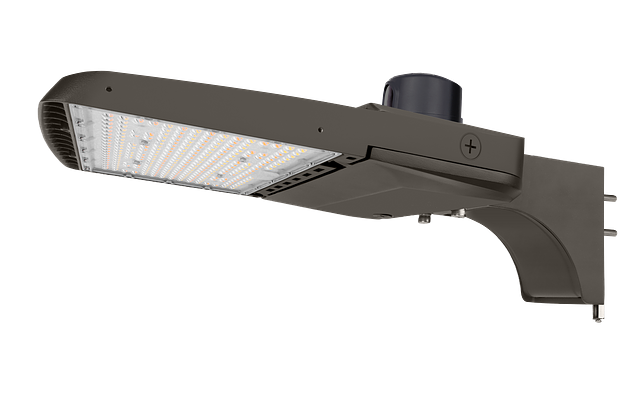

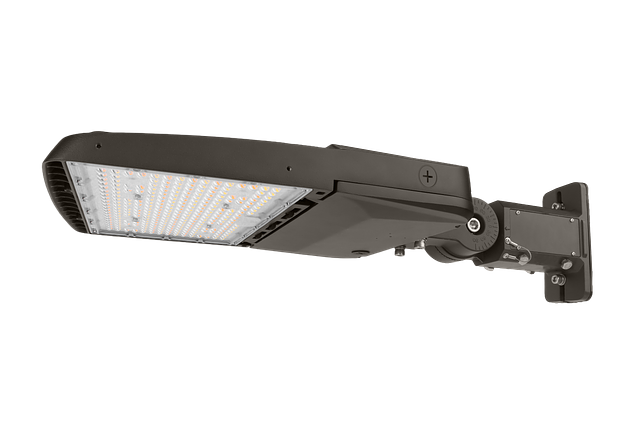

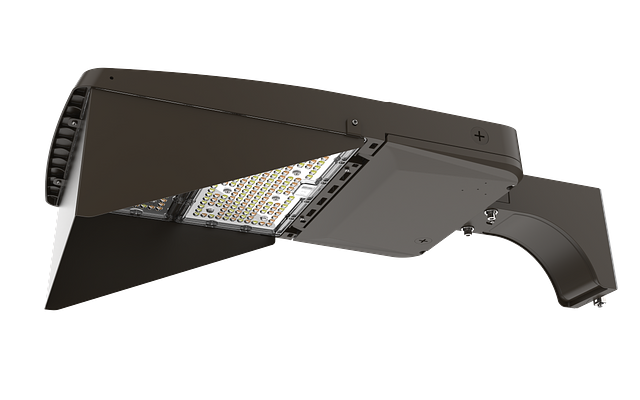

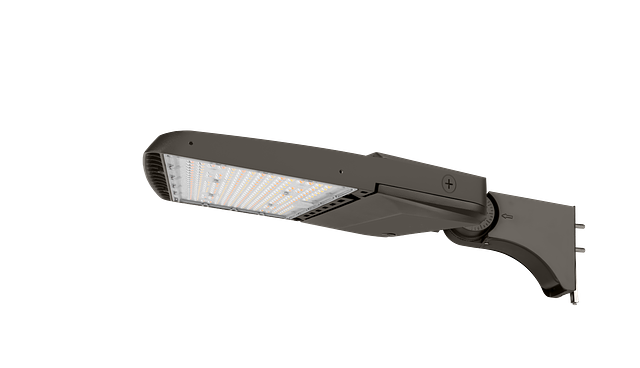

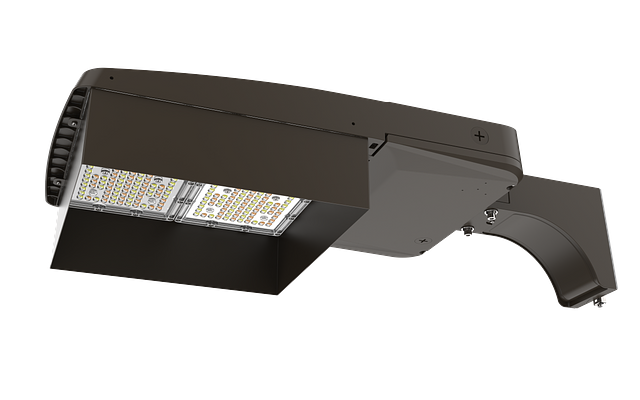

The PFX-3208 is the next-generation LED Area Light from Paraflex, delivering exceptional performance and value with full configurability. Offering 11,000 to 48,000 lumens, it is a cost-effective replacement for 250W to 1000W HID fixtures. The PFX-3208 family is available in three housing sizes with multiple mounting options, including slipfitter, square or round pole arms, and yoke mounts. For added versatility, the series supports photocells, motion sensors, and external light control shields.
Resources
Built to last, the PFX-3208 combines durability with performance. Its heavy-duty die-cast aluminum housing and advanced vented design keep LEDs running cooler, brighter, and longer. A sealed body shields against weather and contaminants, while the compact, vibration-rated design reduces wind load — maximizing pole efficiency and reliability in any environment.
The PFX-3208 is designed for reliable performance and ease of installation. It supports universal input voltage (AC120–277V / AC120–347V) with a standard 10kV surge protector, or high-voltage operation at AC277–480V with a standard 20kV surge protector. A 0–10V dimmable driver is integrated into the fixture, with dimming leads kept internal for a clean design. The system maintains a power factor of ≥0.95 with total harmonic distortion of ≤20%, ensuring efficient and consistent operation. For convenience, the fixture comes pre-wired with two 24-inch power cords to simplify installation.
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Dark Bronze
Controls Options
- Motion Sensor
- Photocell
CRI
- 70
Distribution
- Type III
- Type IV
- Type V
Lamp Source
- LED
Listings
- UL
Lumens
- 12000
- 15000
- 20000
- 25000
- 35000
- 45000
Materials
- Die-Cast Aluminum
Mounting
- Pole
- Slip Fitter
- Trunnion
- Universal Mounting Arm
- Wall
- Yoke
Ratings & Compliance
- DLC Premium
- IP65
- RoHS
- TAA
- Wet
Shape
- Rectangular
Voltage
- 120-277 V
- 120-347 V
- 277-480 V
Watts
- 80
- 100
- 120
- 150
- 170
- 200
- 220
- 240
- 260
- 280
- 310
Weight
- 8.42
- 9.70
- 11.73
- 17.59
- 20.35
- 21.75
- 24.21
- 28.68
- 28.70
Dimensions
- L: 13.07 In. W: 15.59 In. H: 5.24 In.
- L: 13.07 In. W: 17.17 In. H: 5.24 In.
- L: 13.07 In. W: 22.32 In. H: 5.71 In.
- L: 8.7 In. W: 23.6 In. H: 7.7 In.
- L: 9.8 In. W: 14.8 In. H: 7.9 In.
- L: 13.2 In. W: 17.3 In. H: 8.9 In.
- L: 11.6 In. W: 12.8 In. H: 7.5 In.
- L: 14.0 In. W: 14.4 In. H: 9.3 In.
- L: 15.6 In. H: 6.7 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
