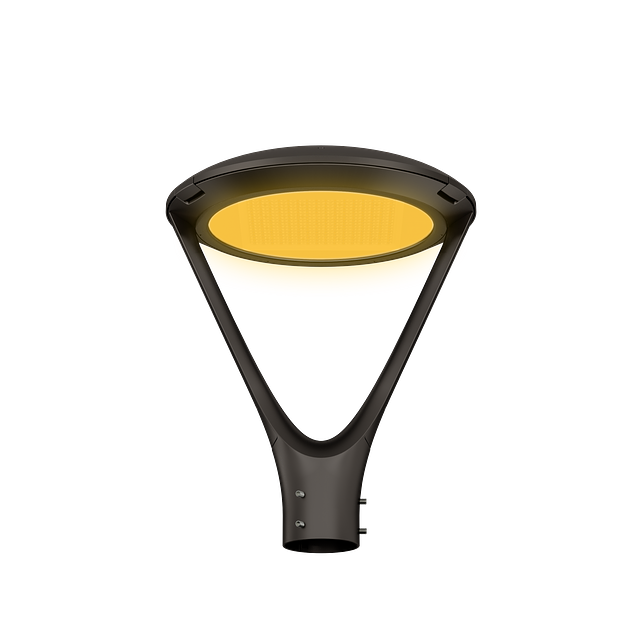

Amber PTA-PT DC.png

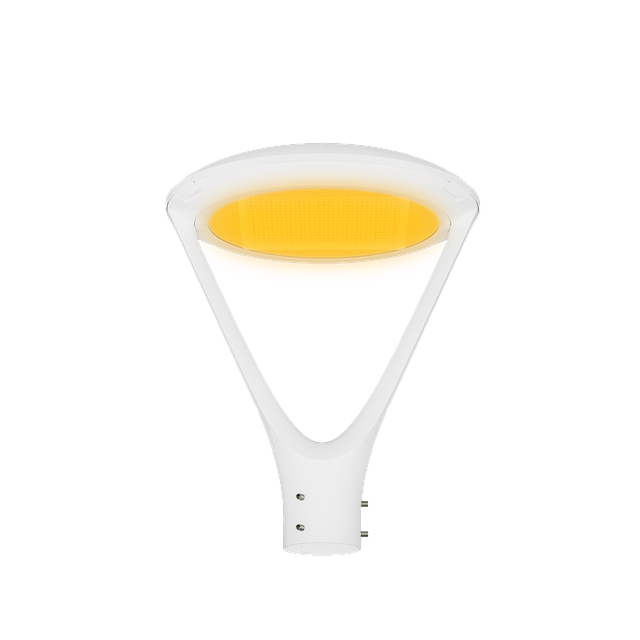

Amber PTA-PT WC.png

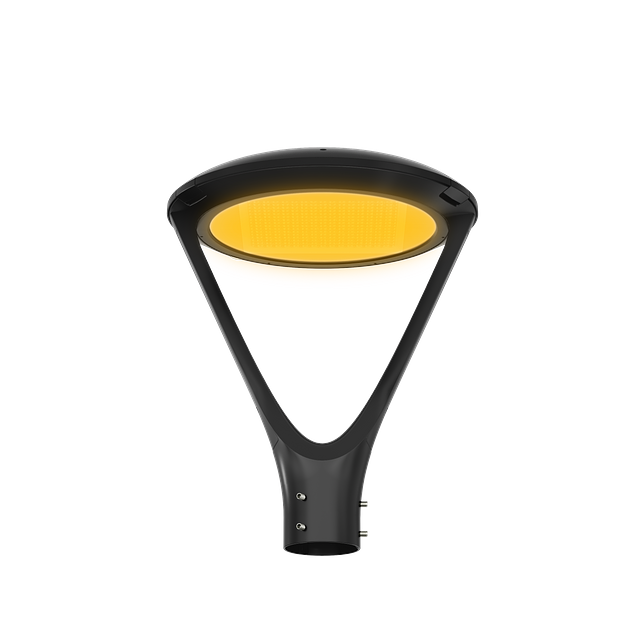

Amber PTA-PT BC.png

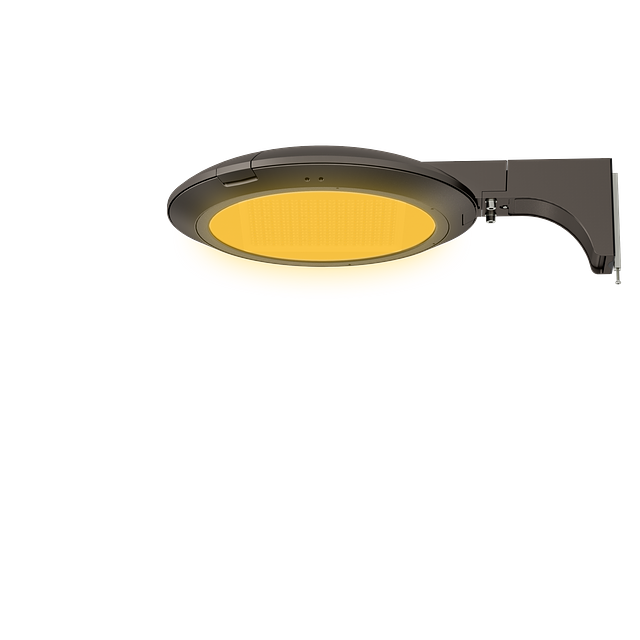

Amber PTA-PA DC.png

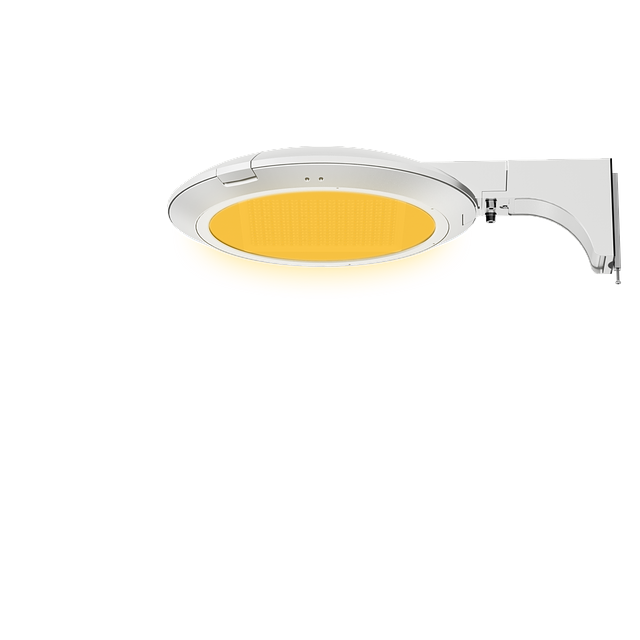

Amber PTA-PA WC.png

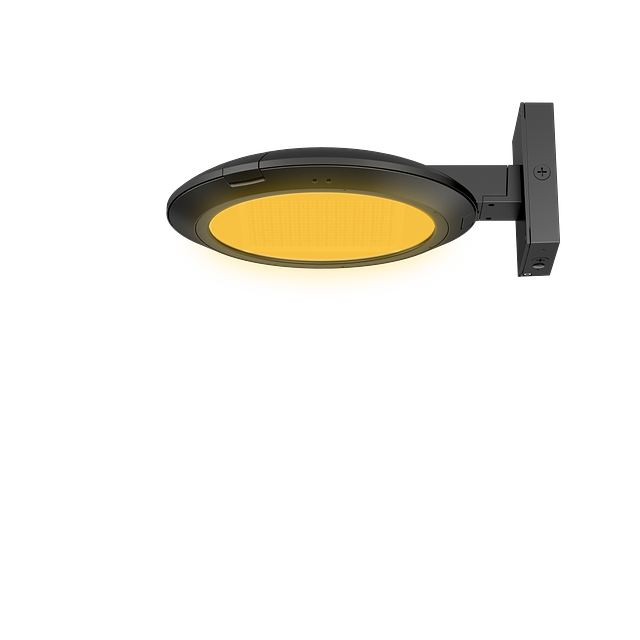

Amber PTA-WM BC.png

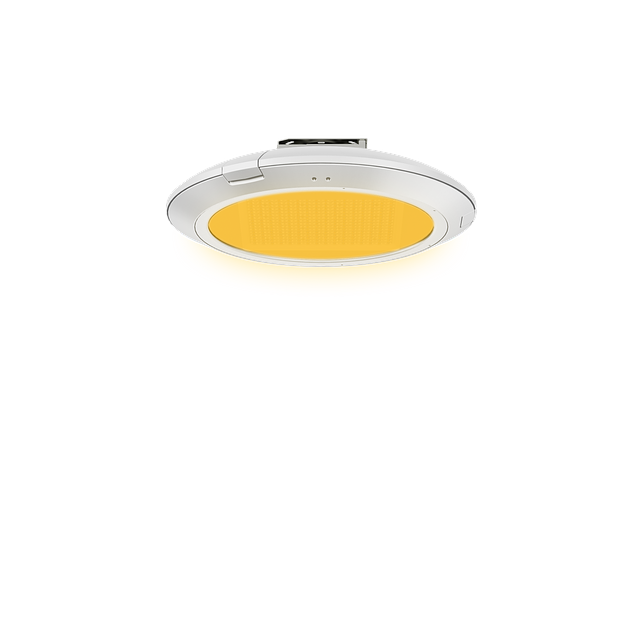

Amber PTA-SM WC.png
Amber PTA-PD DC.png

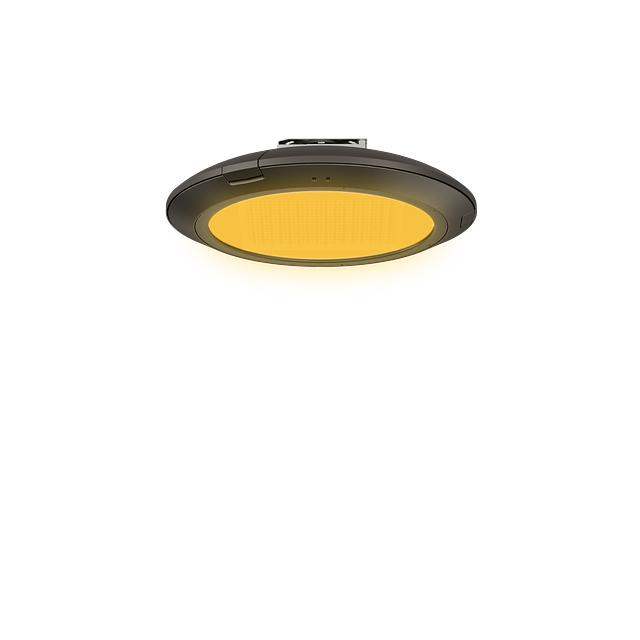

Amber PTA-SM DC - 副本.png

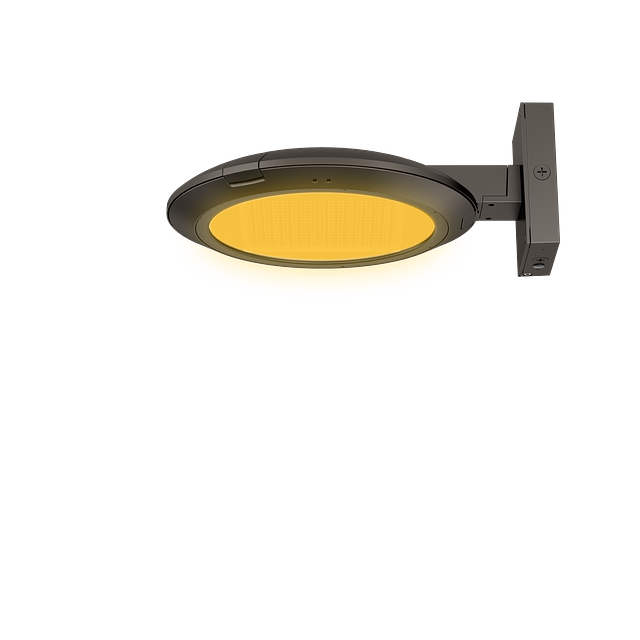

Amber PTA-WM DC - 副本.png

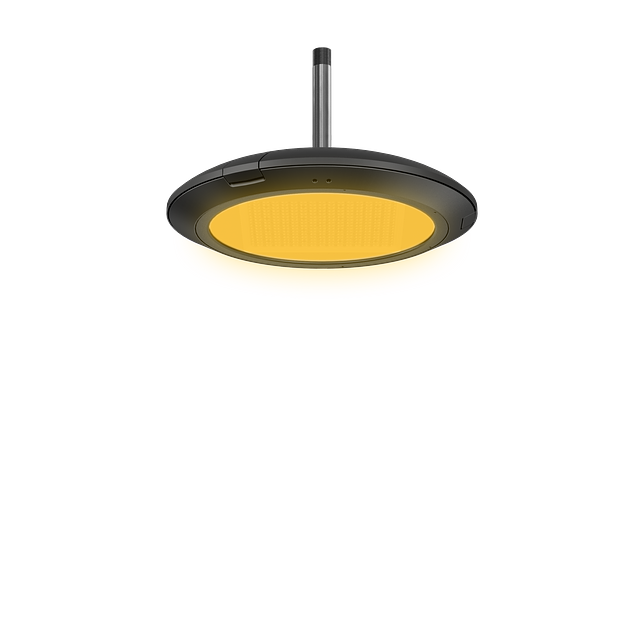

Amber PTA-PD BC.png

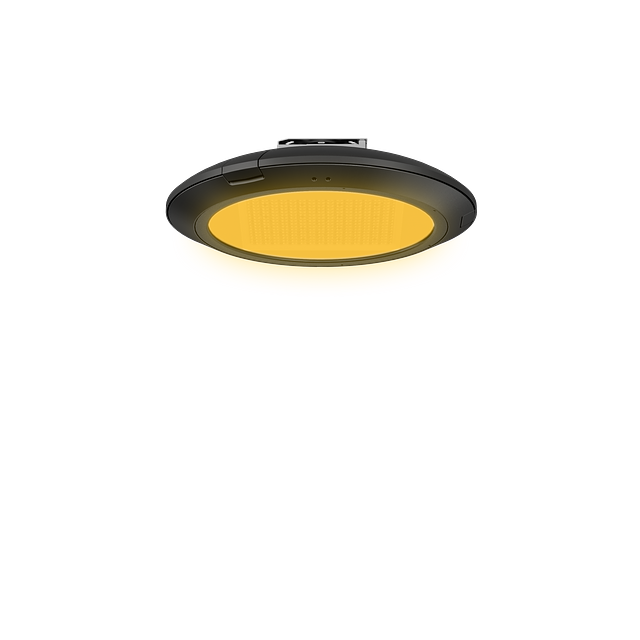

Amber PTA-SM BC.pngPFX-3307
New Product
Amber LED Decorative Post Top Light for Turtle Safe
• PFX-3307 is specifically designed for Turtle Safe compliance, emitting amber light with a wavelength of 590 nanometers. While meetting pedestrians' nighttime lighting requirements, it minimizes ecological disturbance to marine life.
• PFX-3307 features a durable powder-coated aluminum housing and a heavy-duty polycarbonate lens. It is scratch-resistant, fade-resistant and UV-proof.
• This light fixture offers multiple options for light distributions, mounts, and brackets, catering to diverse op cal and installation requirements.
• Photocell and Motion sensor are also available. The fixture with Bluetooth control sensor supports LLLC from HSE Smart Inc (Product ID:N-WPYM0L), Homewell Inc(Product ID: N-TDEGAJ), and Litetrace (Product ID: N-BYH6ZO).
• Amber Post Top Light is suitable for turtle-sensitive coastal environments, including beachfront developments, pathways, and parks, where low-impact, wildlife-friendly lighting is required.
• PFX-3307 features a durable powder-coated aluminum housing and a heavy-duty polycarbonate lens. It is scratch-resistant, fade-resistant and UV-proof.
• This light fixture offers multiple options for light distributions, mounts, and brackets, catering to diverse op cal and installation requirements.
• Photocell and Motion sensor are also available. The fixture with Bluetooth control sensor supports LLLC from HSE Smart Inc (Product ID:N-WPYM0L), Homewell Inc(Product ID: N-TDEGAJ), and Litetrace (Product ID: N-BYH6ZO).
• Amber Post Top Light is suitable for turtle-sensitive coastal environments, including beachfront developments, pathways, and parks, where low-impact, wildlife-friendly lighting is required.
Resources
Rugged die-casting aluminum housing with a durable pow der-coated finish f or long-term, reliable perf ormance.
• Equipped with a 0-10V con tinuous dimmable driver; Min.Dim Level:0%. However, the dimming wires are already occupied and cannot be used for external dimmer control.
• Input voltage is 120-277VAC, 50/60Hz.
• All models are designed to withstand up to L/N-PE: 10kV, L-N: 10kV surge.
• Power factor (PF): >0.92
• 3.3 (39.4") long power cord provided for easier installa on. The power cord is in the lamp body and needs to be led out by yourself.
• Input voltage is 120-277VAC, 50/60Hz.
• All models are designed to withstand up to L/N-PE: 10kV, L-N: 10kV surge.
• Power factor (PF): >0.92
• 3.3 (39.4") long power cord provided for easier installa on. The power cord is in the lamp body and needs to be led out by yourself.
Color / Finish
- Black
- Dark Bronze
- Silver
- White
Controls Options
- Bluetooth
- Motion Sensor
- PIR Sensor
- Photocell
Distribution
- Type 2
- Type 3
- Type 4
- Type 5
Lamp Source
- LED
Listings
- cULus
Lumens
- 900
- 950
- 1450
- 1750
Materials
- Die-Cast Aluminum
Mounting
- Pole
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Turtle Safe
- Wet
Shape
- Circular
- Cone
Static LED Color
- Amber
Voltage
- 120-277 V
Watts
- 33
- 53
- 63
Weight
- 13.67
- 17.46
- 17.59
- 18.19
- 21.74
- 22.49
Dimensions
- L: 19.09 In. W: 19.09 In. H: 9.45 In.
- L: 22.24 In. W: 17.13 In. H: 19.29 In.
- L: 12.87 In. H: 6.10 In.
- L: 12.80 In. W: 7.08 In. H: 14.76 In.
- L: 15.16 In. W: 12.01 In. H: 7.87 In.
- L: 12.80 In. W: 7.28 In. H: 14.76 In.
- L: 17.32 In. W: 13.19 In. H: 8.86 In.
Dimming Protocol
- 0-10 V
EPA Rating
- 0.95
- 1.90
- 2.65
- 3.40
Warranty
- 5 yr
