PFX-3210

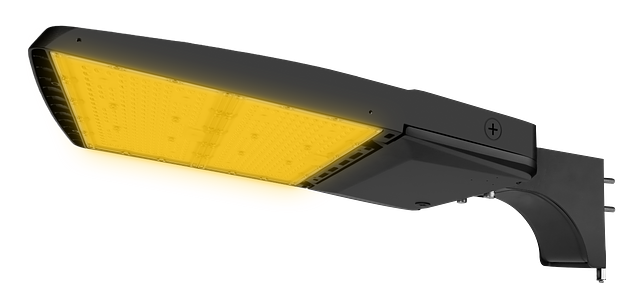

ALH Amber L BC Front Side - PA.png

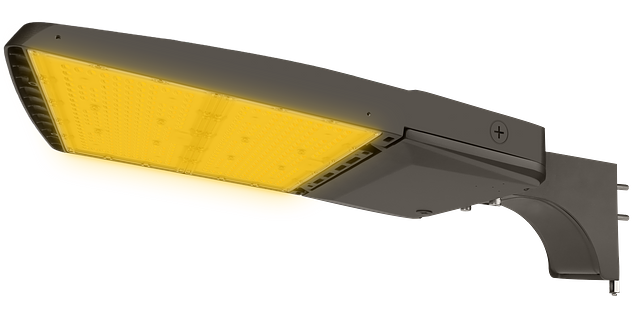

Amber ALH L DC Front Side - PA.png

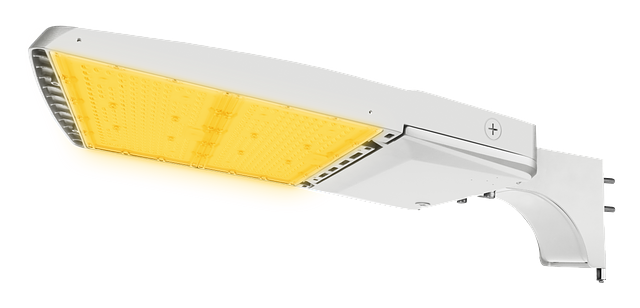

ALH Amber L WC Front Side - PA.png
ALH Amber L BC Front Side - PA.png

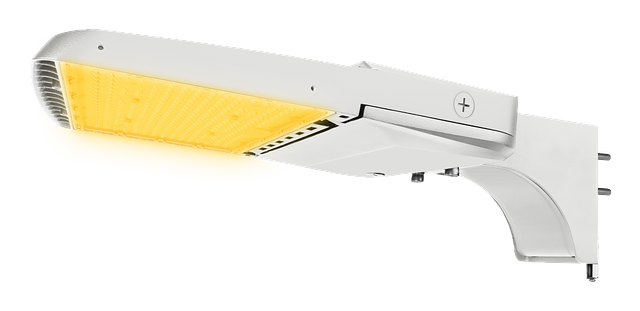

ALH Amber S WC Front Side - PA.pngPFX-3210
New Product
Amber LED Area Light for Turtle Safe
PFX-3210 is specifically designed for Turtle Safe compliance, emitting amber light with a wavelength of 590 nanometers. While meeting pedestrians' nighttime lighting requirements, it minimizes ecological disturbance to marine life. • The whole family includes two different sizes. Slipfitter mount, square or round pole mount arm and Yoke mount are available. • • Photocell, motion sensor and external light control shield are also available. The fixture with Bluetooth control sensor supports LLLC from HSE Smart Inc(Poduct ID:N-WPYM0L), Homewell Inc (Product ID:N-TDEGAJ), and Litetrace (Product ID:N-BYH6ZO). The Amber Area Light is highly suitable for beachfront properties, boardwalks, commercial buildings, hotels, parking lots and patios.
Resources
PFX-3210 features a rugged die-cast aluminum body that uses heatsink and flow-through venting to provide optimal thermal management that both enhances LED performance and extends component life. The light housing is sealed against moisture and environmental contaminants. The 3G vibra on rated compact design minimizes wind load requirements. With a low EPA, it allows pole optimization
Universal voltage: 120-277 VAC, equipped with standard 10kV surge protector. • Equipped with a 0-10V continuous dimmable driver; Min.Dim Level: 0%. The fixtures do not have dimming wires led out by default; an additional cost will be required for modification to include them. • Po wer Fa ctor : ≥0.95 • THD≤2 0 % • 2ft( 24") long power cord provided for easier installation
Color / Finish
- Black
- Dark Bronze
- Grey
- Silver
- White
Controls Options
- PIR Sensor
- Photocell
Distribution
- Type 3
- Type 4
- Type 5
Lamp Life
- 100000
Lamp Source
- LED
Listings
- cULus
Lumens
- 3120
- 5280
Materials
- Die-Cast Aluminum
Mounting
- Pole
- Slip Fitter
- Trunnion
- Universal Mounting Arm
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- IP65
- RoHS
- Turtle Safe
- Wet
Shape
- Rectangular
Static LED Color
- Amber
Voltage
- 120-277 V
Watts
- 65
- 80
- 95
- 120
- 170
- 200
- 220
- 240
Weight
- 12.50
- 14.20
- 14.50
- 14.80
Dimensions
- L: 26.50 In. W: 9.25 In. H: 3.35 In.
- L: 24.80 In. W: 9.25 In. H: 3.50 In.
- L: 25.20 In. W: 9.25 In. H: 4.80 In.
- L: 21.50 In. H: 5.75 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
