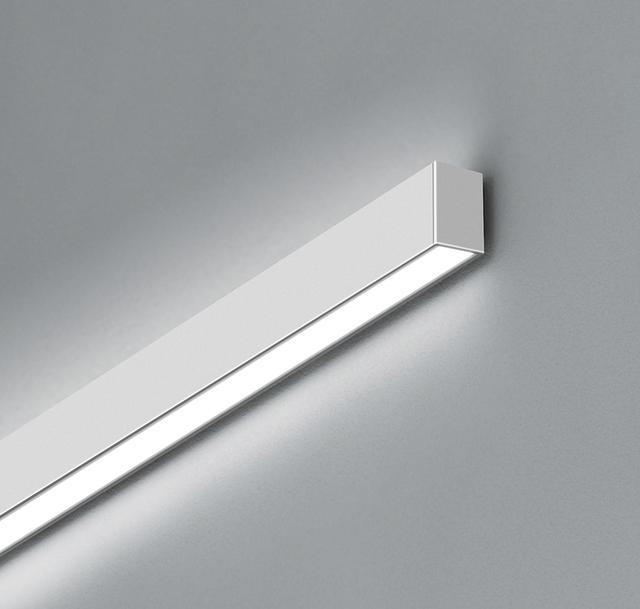

Spec-Grade Architectural LED Linear Light
PFX-5308 linear wall mount lighting is available in a wall mount design, with a sleek low-profile sensibility optimal for architectural lighting applications, ideal for corridors, stairwells, and more. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. It is available in 2ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. It can provide smooth uplight and downlight, allowing for wider spacing between fixtures and better ceiling light uniformity.
Features:
90+ CRI
2 lighting distributions by DIP switch
CCT adjustable and wattage selectable
Available in diffuser, louver and drop lens
Individual units or continuous runs
Custom pattern with optional Line, L, X, T, Y, V joiners
2ft, 4ft and 8ft lengths
Features:
90+ CRI
2 lighting distributions by DIP switch
CCT adjustable and wattage selectable
Available in diffuser, louver and drop lens
Individual units or continuous runs
Custom pattern with optional Line, L, X, T, Y, V joiners
2ft, 4ft and 8ft lengths
Resources
Available in diffuser, louver and drop lens
CCT
- 3000K
- 3500K
- 4000K
Color / Finish
- Black
- White
CRI
- 90
Dimming Range
- 10%
Listings
- cULus
Lumens
- 700
- 750
- 800
- 900
- 950
- 1000
- 1400
- 1500
- 1600
- 1700
- 1900
- 2000
- 2800
- 3000
- 3200
- 3400
- 3800
- 4000
- 5600
- 6000
- 6400
- 6800
- 7600
- 8000
Lumens/Linear Ft.
- 700
- 750
- 800
- 850
- 950
- 1000
Materials
- Aluminum
Mounting
- Wall
Up/Down Ratio
- 0/100
- 25/75
Voltage
- 120-277 V
- 120-347 V
Watts
- 10
- 15
- 20
- 30
- 40
- 60
- 80
Dimensions
- H: 2.24 In. L: 25.28 In. W: 1.3 In.
- L: 50 In.
- L: 100 In.
Dimming Protocol
- 1-10 V
Warranty
- 5
