PFX-5125

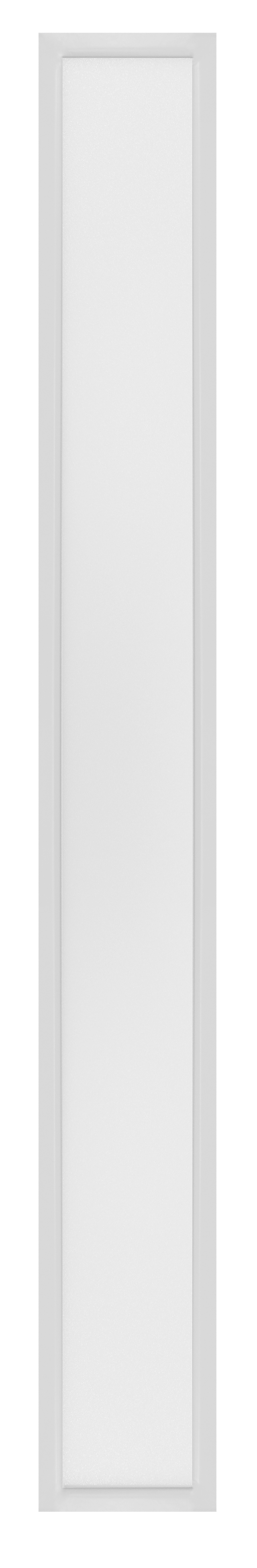

LR front view.png
LR44 (2).png
LR 01.jpg
LR-5.jpgPFX-5125

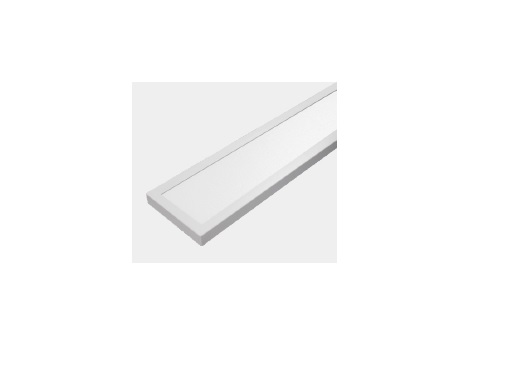

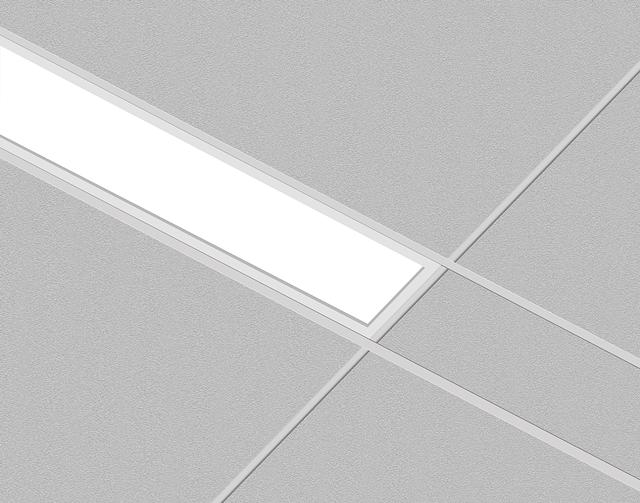

LED Linear Recessed (LR) | Architectural
• Slim and linear design
• 2ft, 4ft and 8ft lengths, up to 1000lm/ft
• 0-10V dimming, dim to 10% or 1% options
• Available in 4", 6" width
• Wattage selectable (50%/75%/100%)
• CCT adjustable from 3000K, 3500K and 4000K
• 2ft, 4ft and 8ft lengths, up to 1000lm/ft
• 0-10V dimming, dim to 10% or 1% options
• Available in 4", 6" width
• Wattage selectable (50%/75%/100%)
• CCT adjustable from 3000K, 3500K and 4000K
Resources
LED Driver External
Dimming Powered by high efficiency LED driver, with
a standard 0-10V dimming which
continuous dims to 10% th works with
many types of controls. Tested Dimmers:
Lutron ® Diva-Dvtv, Leviton ® IP-710-DL.
Dim to 1%is available.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic driver isUL recognized
and available for 110-277V AC.
Dimming Powered by high efficiency LED driver, with
a standard 0-10V dimming which
continuous dims to 10% th works with
many types of controls. Tested Dimmers:
Lutron ® Diva-Dvtv, Leviton ® IP-710-DL.
Dim to 1%is available.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic driver isUL recognized
and available for 110-277V AC.
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
Color / Finish
- White
Dimming Range
- 10%
Efficacy
- 85
- 90
- 100
Lamp Life
- 50000
Listings
- cULus
Lumens
- 1700
- 3600
- 7200
Lumens/Linear Ft.
- 85
- 90
- 100
Materials
- Aluminum
Mounting
- Ceiling
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Damp
Shape
- Linear
Voltage
- 110-277 V
Watts
- 10
- 15
- 20
- 30
- 40
- 60
- 80
Dimensions
- L: 95.75 In. W: 3.74 In. H: 2.17 In.
- L: 95.75 In. W: 5.75 In. H: 2.17 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
