PFX-5126
LS44 LS46.png
1 (1).jpg
1 (3).jpg
1 (4).jpg
1 (8).jpgPFX-5126

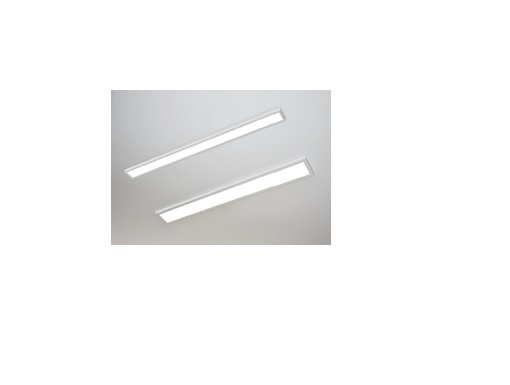

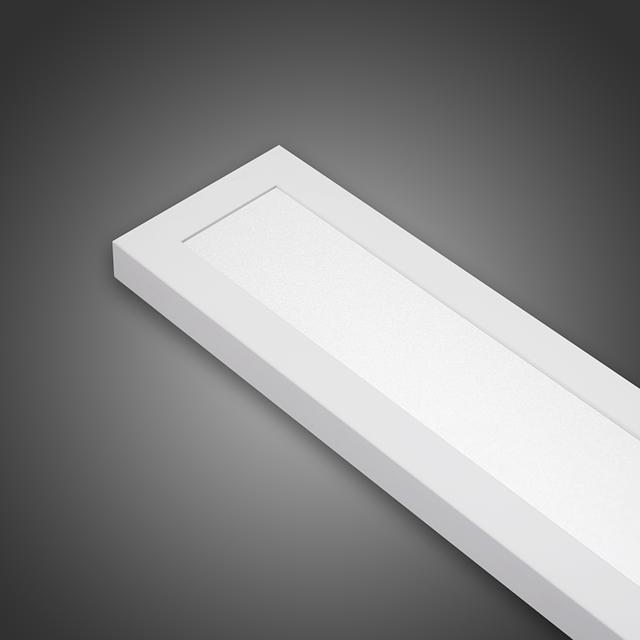

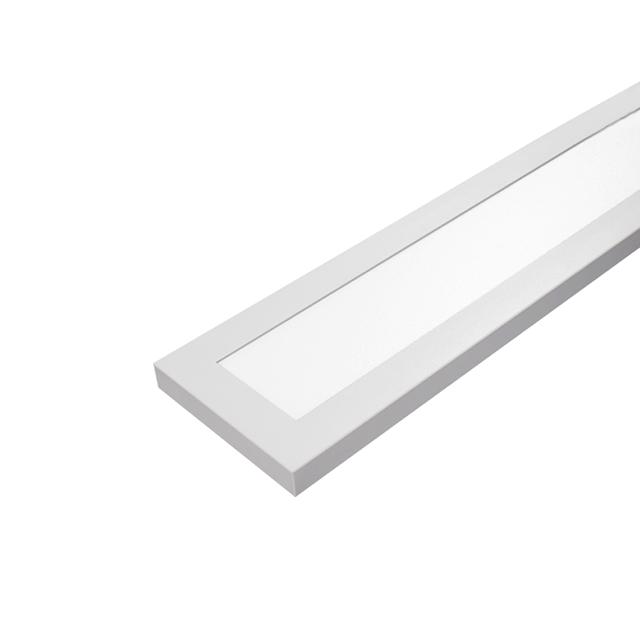

Linear Surface (LS) | Architectural LED Linear

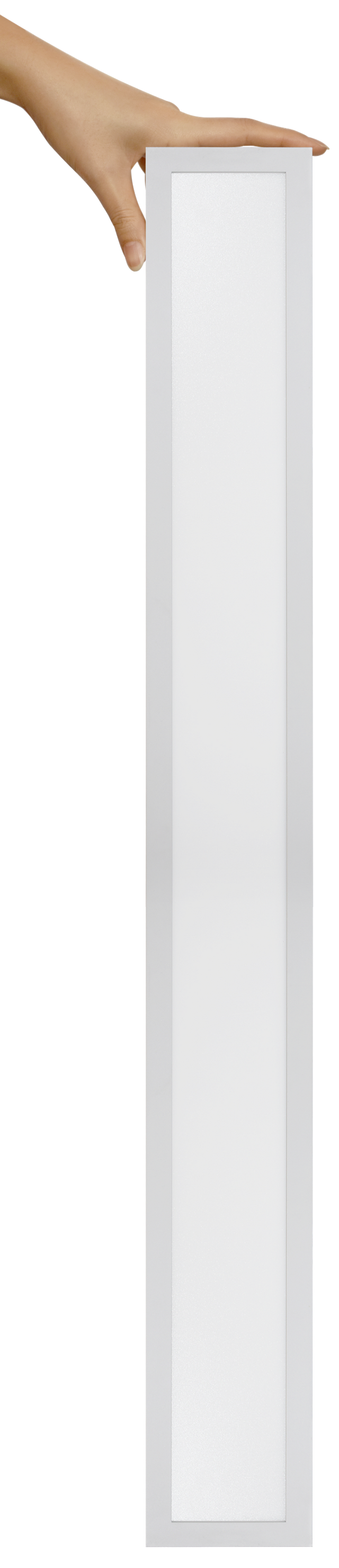

• Ultra thin profile, only 0.94" thickness
• Built-indriver

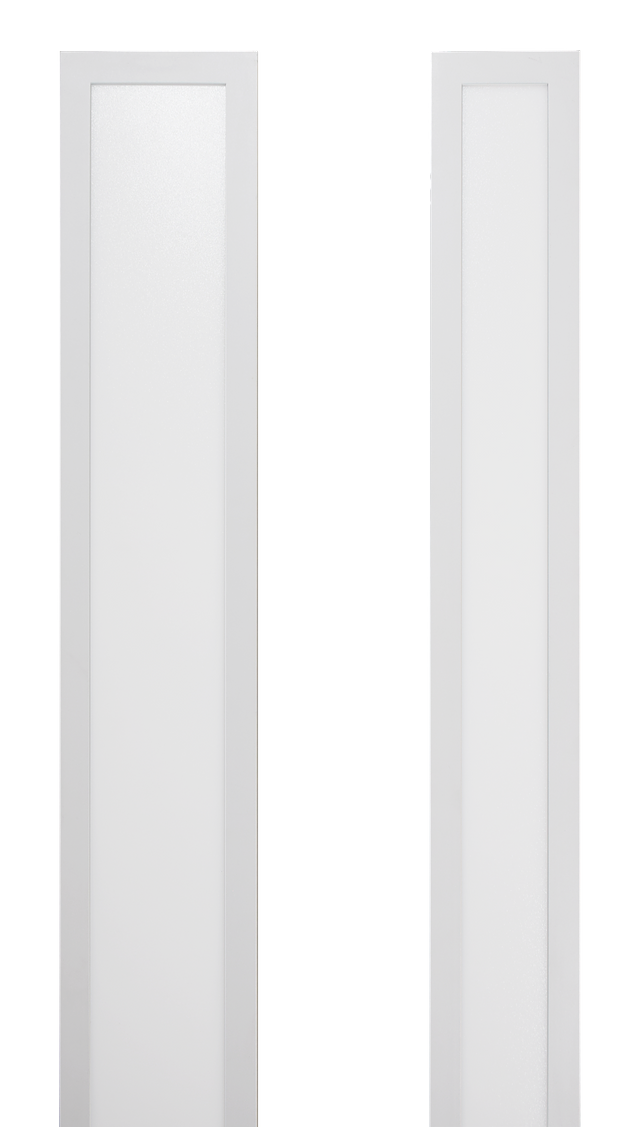

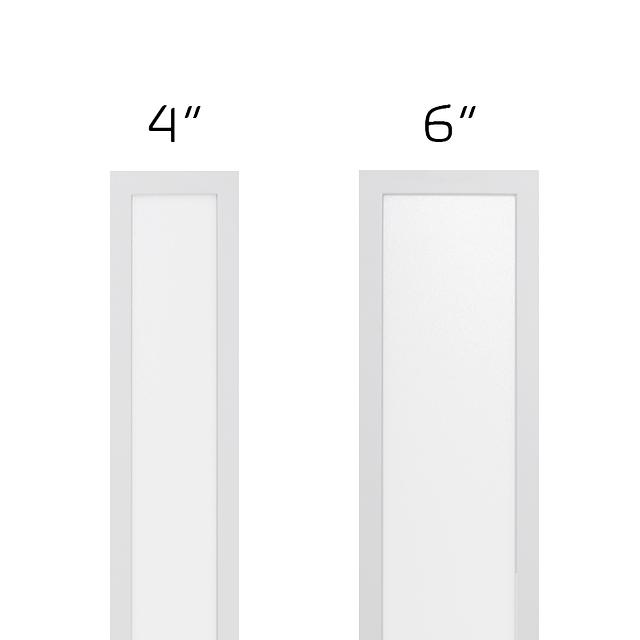

• Available in 4", 6" width and 2', 4' length
• Wattage selectable (For 4ft)
• CCT adjustable from 3000K,3500K and 4000K
• Built-indriver
• Available in 4", 6" width and 2', 4' length
• Wattage selectable (For 4ft)
• CCT adjustable from 3000K,3500K and 4000K
Resources
LED Driver Internal driver makes it only 0.94" thickness
Powered by high efficiency LED driver, with a
standard 0-10V dimming which continuous
dims to 10% that works with many types of
controls. Tested Dimmers: Lutron ® Diva-
Dvtv, Leviton ® IP-710-DL.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic driver is UL recognized
and available for 110-277V or 110-347V AC*.
Powered by high efficiency LED driver, with a
standard 0-10V dimming which continuous
dims to 10% that works with many types of
controls. Tested Dimmers: Lutron ® Diva-
Dvtv, Leviton ® IP-710-DL.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic driver is UL recognized
and available for 110-277V or 110-347V AC*.
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
Color / Finish
- White
CRI
- 80
Dimming Range
- 10%
Efficacy
- 80
- 85
- 95
Lamp Life
- 50000
Lamp Source
- LED
Listings
- cULus
Lumens
- 1600
- 1700
- 3200
- 3800
Materials
- Aluminum
Mounting
- Ceiling
- Surface
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Damp
Shape
- Linear
Voltage
- 100-347 V
- 110-277 V
Watts
- 20
- 30
- 40
Dimensions
- L: 23.70 In. W: 4.25 In. H: 47.76 In.
- L: 23.70 In. W: 5.75 In. H: 47.76 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
