New Product

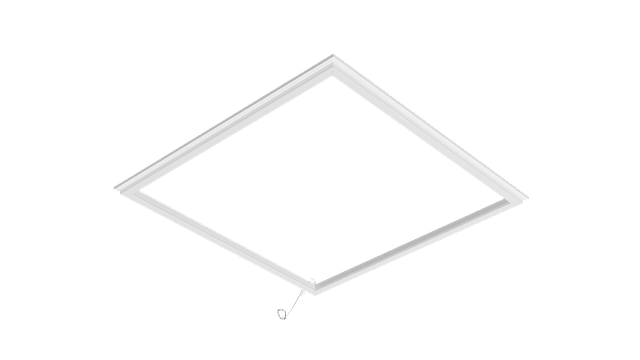

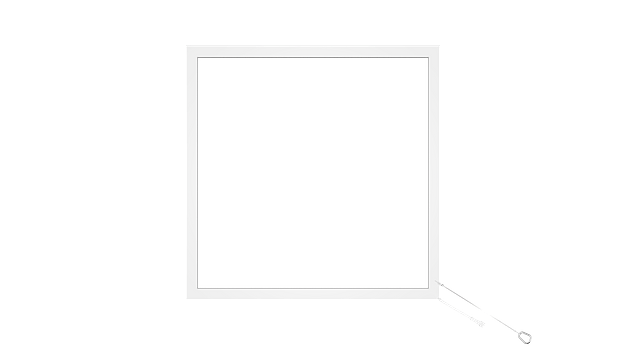

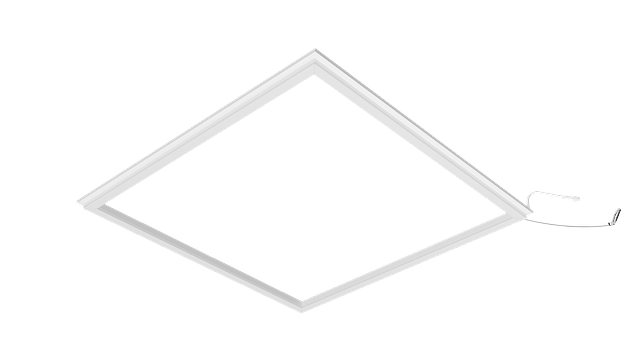

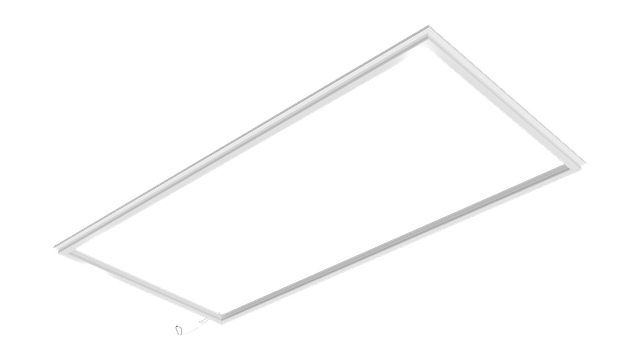

PFX-5103 LED Frame Light
The PARAFLEX PFX-5103 LED Frame Light delivers modern, high-efficiency illumination designed for maximum versatility. Available in both 2x2ft and 2x4ft configurations, this innovative fixture seamlessly integrates into commercial spaces requiring flexible lighting layouts. It features a highly adaptable design with 5 selectable color temperatures (CCT) ranging from 3500K to 6500K and 5 selectable wattages, allowing users to customize brightness and ambiance on site.
Resources
Powered by reliable 0-10V dimming drivers, it ensures smooth light control while maintaining an impressive power factor greater than 0.95 and low total harmonic distortion (THD < 20%). For enhanced safety and uninterrupted performance, it offers an optional field-installable emergency battery backup providing up to 90 minutes of reserve power. Built to last and rigorously certified, this DLC Premium listed and FCC compliant fixture comes backed by a trusted five-year limited warranty.
• 5 CCT slectable and 5 Watts selectble
• Powered by 0 –10V dimming LED drivers
• THD: < 20%
• Available with EM Driver
• Power factor > 0.95
• Five-year limited warranty
• Powered by 0 –10V dimming LED drivers
• THD: < 20%
• Available with EM Driver
• Power factor > 0.95
• Five-year limited warranty
CCT
- 3500K
- 4000K
- 5000K
- 5700K
- 6500K
Color / Finish
- White
CRI
- 80
Efficacy
- 110
Lamp Source
- LED
Listings
- ETL
- cETLus
Lumens
- 2200
- 2750
- 3300
- 3850
- 4400
- 4950
- 5500
Materials
- Aluminum
- Polycarbonate
Mounting
- Ceiling
- T-Grid
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DLC Premium
- FCC
Shape
- Rectangular
- Square
Size
- 2x2
- 4x4
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 20
- 25
- 30
- 35
- 40
- 45
- 50
Weight
- 13.89
Beam Angle
- 120
Dimensions
- L: 23.7 In. W: 23.7 In. H: 0.5 In.
- L: 47.7 In. W: 23.7 In. H: 0.5 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
