PFX-5546
LEDR-2 WHITE ADJUSTABLE LED EMERGENCY.jpg
LEDR-2.jpgPFX-5546
New Product

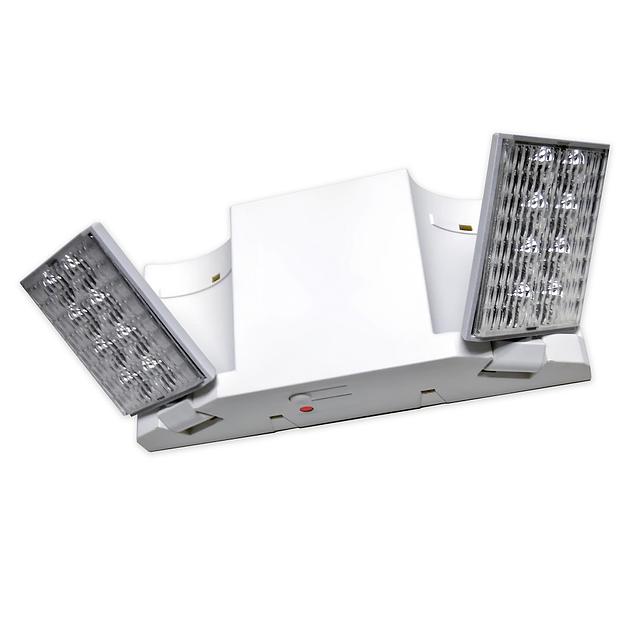

Adjustable Optics LED Emergency Unit
The PFX-5546 features ultra-bright, long-life LED lamp heads with adjustable optics for optimal lighting. It includes a 3.6V rechargeable NiCd battery providing 90 minutes of emergency illumination. Dual voltage (120/277V) with optional multi-tap, easy surface mounting, and a durable, flame-retardant thermoplastic housing in white or black. Equipped with a push-to-test switch for code compliance and a charge rate indicator for quick status checks. The unit offers simple installation via a snap-in backplate, compatible with most junction boxes. Ideal for commercial and residential emergency lighting needs.
Resources
• Dual 120/277 voltage standard. Optional multi-tap
208/220/240 voltage available.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90 -minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
208/220/240 voltage available.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90 -minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Thermoplastic
Mounting
- Ceiling
- Surface
- Wall
Ratings & Compliance
- Damp
- NFPA 101
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120 V
- 208 V
- 220 V
- 240 V
- 277 V
Watts
- 2.1 w
Dimensions
- H: 4.5 In. L: 2.1 In. W: 9.1 In.
Warranty
- 5 yr
