PFX-5550
RMR16-65-125_MAR-2024.jpgPFX-5550

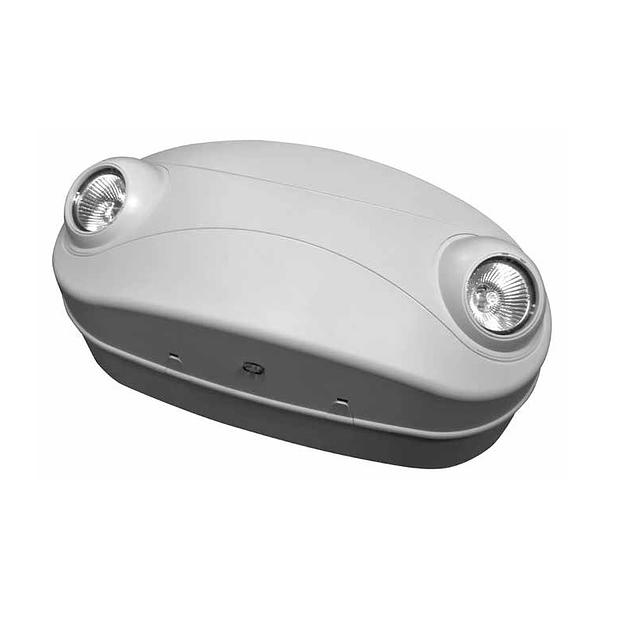

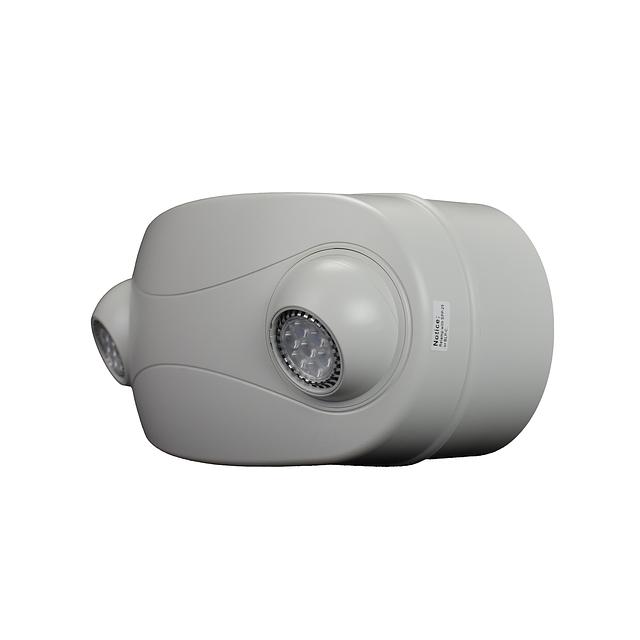

Remote Capable MR-16 Emergency Unit
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish. Two fully adjustable semi-recessed, round MR16 lamp heads for optimal light distribution Ultra-bright, energy efficient, long-life White LED lamps provide up to 76-ft center-to-center spacing with 3-ft path of egress at 7.5-ft mounting height. Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
Resources
• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• Offers 36W of remote capacity.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• Offers 36W of remote capacity.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Color / Finish
- Black
- White
Lamp Source
- LED
- MR-16
Listings
- UL
Lumens
- 7.0 Lm
Materials
- Thermoplastic
Mounting
- Surface
- Wall
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Damp
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120 V
- 277 V
Watts
- 36 w
Dimensions
- H: 5.1 In. L: 5 In. W: 13.4 In.
Warranty
- 5 yr
