PFX-5531
New Product

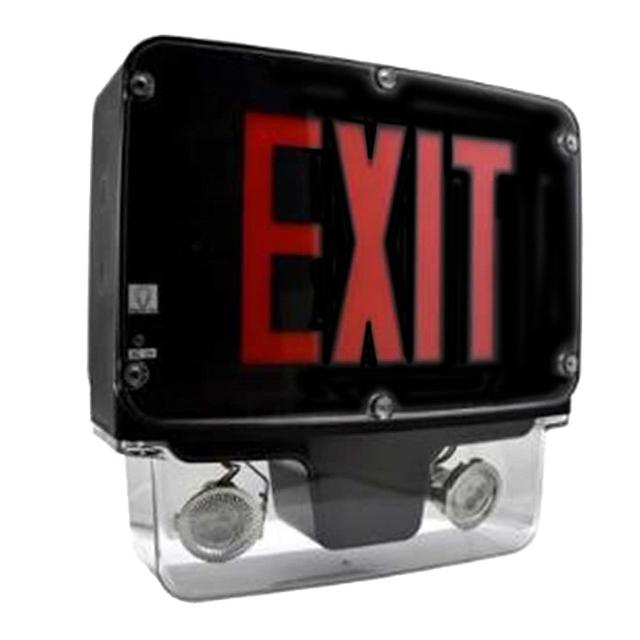

All LED NEMA4X/NSF Exit & Emergency Combo
• Two fully adjustable, ultra bright 3.6 watt high performance MR-16 base LED lamp heads for optimized center-to-center spacing.
• Long-life, energy efficient Red or Green LED EXIT sign illumination.
• Long-life, energy efficient Red or Green LED EXIT sign illumination.
Resources
• Dual 120/277 voltage. • Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery). • Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing. • 6V/12V maintenance-free, rechargeable NiCd battery (12W, 15W models). • 6V/12V maintenance-free, rechargeable sealed lead acid battery (28W model). • Offers 4.8W, 7.8W, 20.8W of remote capacity (6V/12V DC output) standard on the 12W, 15W and 28W models. • Internal solid-state transfer switch automatically connects the internal battery to LED board and lamp heads for minimum 90-minute emergency illumination. • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Color / Finish
- Black
- White
Lamp Source
- LED
- MR-16
Listings
- UL
Materials
- Polycarbonate
Mounting
- Ceiling
Emergency Options
- Emergency Lighting Control
Ratings & Compliance
- IP66
- NEMA 4X
- NFPA 101
- OSHA
- Wet
Shape
- Square
Static LED Color
- Green
- Red
Voltage
- 120 V
- 277 V
Watts
- 12
- 15
- 28
Dimensions
- L: 14.8 In. W: 6 In. H: 14.6 In.
Warranty
- 5 yr
