PFX-5549
RMR16-PLED 2.pngPFX-5549
New Product

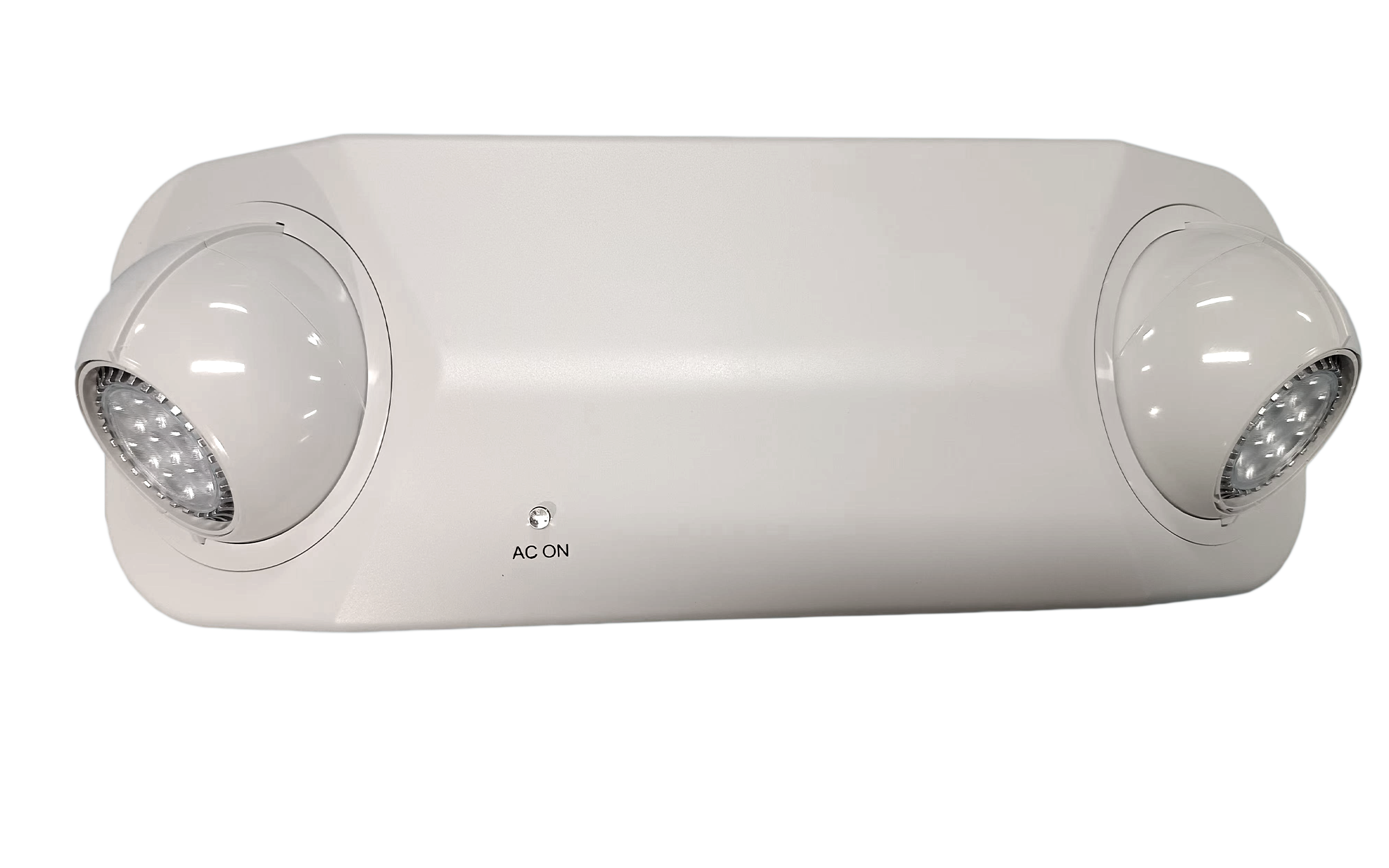

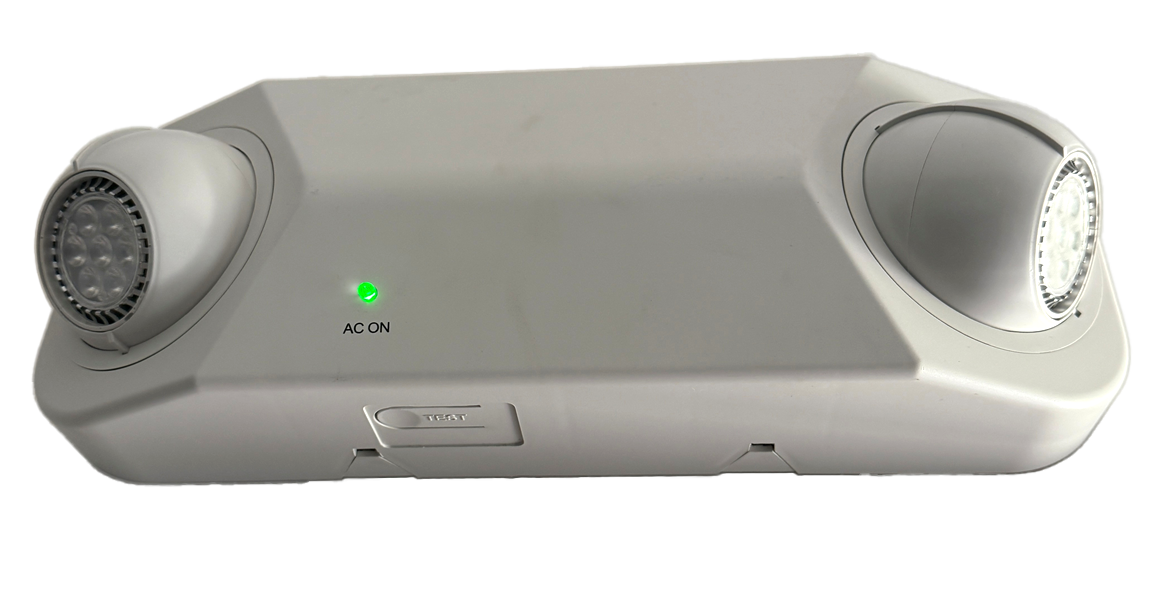

Semi- Recessed MR-16 Emergency Unit
PFX-5549 Compact, semi-recessed emergency light with dual 7W adjustable MR-16 LED lamp heads for optimal illumination. Provides up to 76 ft spacing at 7.5 ft mounting height. Dual 120/277V input with LED charge indicator and test switch. Features 6V sealed lead-acid battery, automatic transfer switch, and solid-state charger for 90-minute emergency operation. Durable 5VA flame-retardant thermoplastic housing in white or black. Universal wall-mount knockout pattern with conduit entry.
Resources
Housing
- Injection-molded, engineering-grade, 5VA flame-retardant thermoplastic
- High-impact resistant construction
- Available in white or black finish
• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Color / Finish
- Black
- White
Lamp Source
- LED
- MR-16
Listings
- cULus
Materials
- Thermoplastic
Mounting
- Wall
Ratings & Compliance
- NFPA 101
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120 V
- 277 V
Watts
- 7 w
Dimensions
- H: 5.1 In. L: 3 In. W: 13.3 In.
Warranty
- 5 yr
