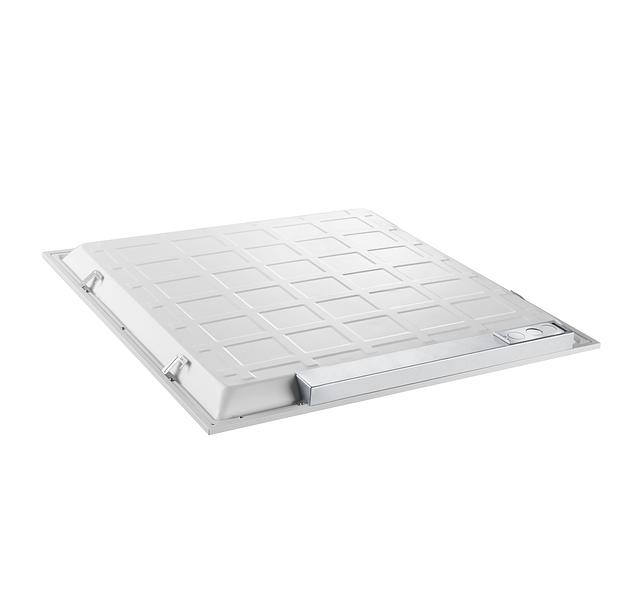

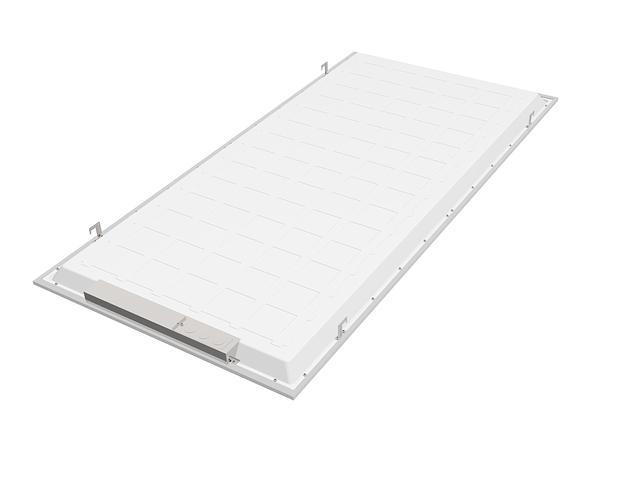

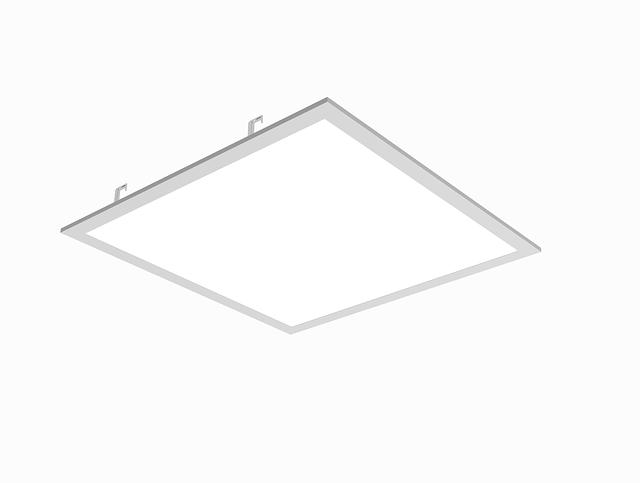

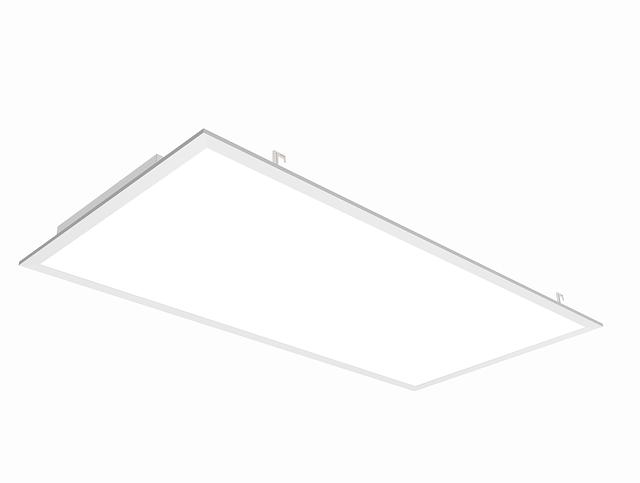

PFX-5120

LED Panel

Integrative aluminum frame provides a durable structure. Sealed housing prevents dust and light leak. 5 wattage and 5 CCT selectable switches are integrated on the driver. Suitable applications include offices, retail, schools, restaurants, healthcare, residential, and hospitality.

100-277V
0-10V dimmable
Specification Sheet

Resources

Specsheets


CCT

  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K

CRI

  • 80 CRI

Lamp Source

  • LED

Listings

  • ETL

Lumens

  • 2500 Lm
  • 3750 Lm
  • 5000 Lm
  • 9000 Lm

Materials

  • Aluminum

Mounting

  • Recessed
  • Surface

Ratings & Compliance

  • DLC Premium

Size

  • 2x2 Ft.
  • 2x4 Ft.

Voltage

  • 100-277 V

Watts

  • 20 w
  • 25 w
  • 30 w
  • 35 w
  • 40 w
  • 50 w
  • 72 w

Dimensions

  • H: 6.5 In. L: 25.2 In. W: 25.2 In.
  • H: 6.5 In. L: 49.2 In. W: 25.2 In.

Dimming Protocol

  • 0-10 V
  • Triac

Warranty

  • 5 yr
