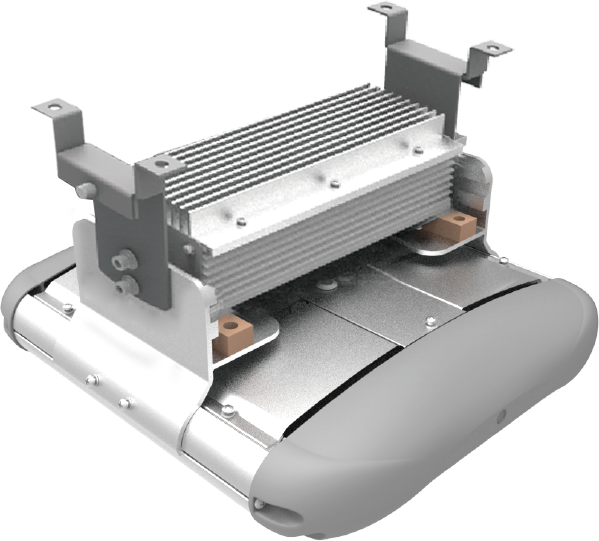

PFX-2500-HT

LED High Bay for High Temperatures

Designed for operation in an environment with ambient temperatures up to 100°F / 212°C. the low profile, rugged fixture is a worry-free, low maintenance lamp for maximum reliability, durability and shock, vibration and vandalism resistant, even in the harshest environment.  High temperature LED High Bay sets the industry standard with energy efficiency and durability for the longest-lasting performance  in high ambient temperature industrial applications including manufacturing, power generation, water and wastewater, pulp and paper, metals and mining, chemical and petrochemical and oil and gas.
Excellent thermal management system ensures stable operation at 80°C / 100°C ambient temp. Long lasting performance L70>100,000 hours. IP66 for wet location & IK10 impact resistant for the harshest environment. 3G or 5G vibration rated for the most challenging applications. Hanging ring or universal bracket for any types of installation, both indoor and outdoor. 15 types of optic lens.

Specification Sheet

Resources

Specsheets


Designed for operation in an environment with ambient temperatures up to 100°C / 212°F.

CCT

  • 3500K
  • 4000K
  • 5000K

Color / Finish

  • Grey

Controls Options

  • Motion Sensor
  • Photocell

CRI

  • 70 CRI

Listings

  • ETL

Lumens

  • 7000 Lm
  • 14000 Lm
  • 21000 Lm
  • 28000 Lm
  • 42000 Lm
  • 63000 Lm

Materials

  • Aluminum

Ratings & Compliance

  • DLC Premium
  • IK10
  • IP66
  • RoHS

Voltage

  • 100-277 V
  • 208-480 V

Watts

  • 50 w
  • 100 w
  • 150 w
  • 200 w
  • 300 w
  • 450 w

Warranty

  • 5 yr
