PFX-5102
New Product

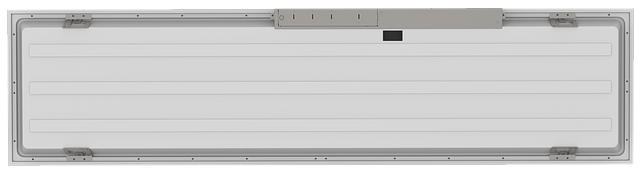

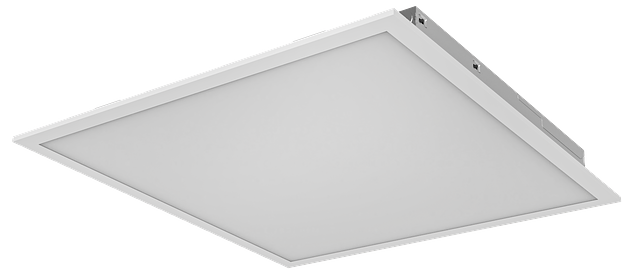

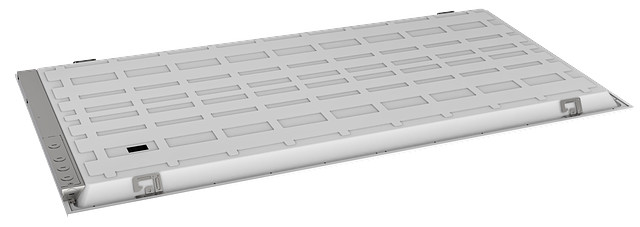

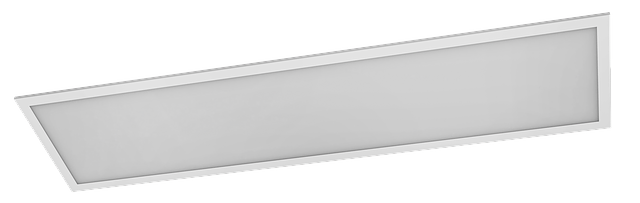

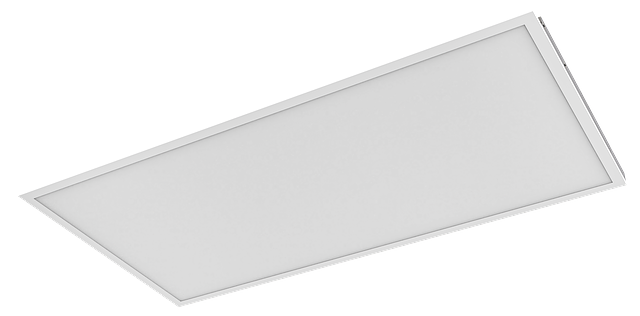

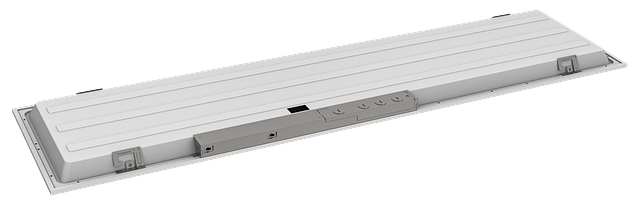

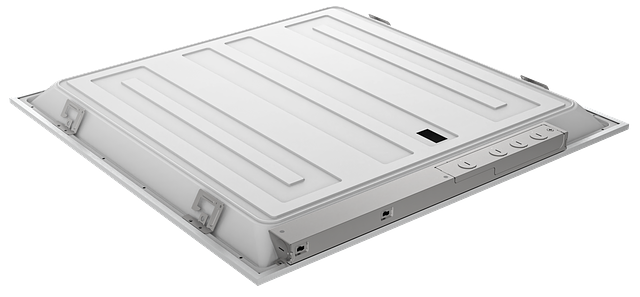

LED BACK-LIT FLAT PANEL
• 6 CCT slectable and 5 Watts selectble
• Powered by 0 –10V dimming LED drivers with 12V Aux
• Available with sensor/EM Driver/Mount Kit
• Five-year limited warranty
• DLC/ ETL/FCC are certificated
• TAA ( Made in Mexico )
• THD: < 20%
• Power factor > 0.95
• Powered by 0 –10V dimming LED drivers with 12V Aux
• Available with sensor/EM Driver/Mount Kit
• Five-year limited warranty
• DLC/ ETL/FCC are certificated
• TAA ( Made in Mexico )
• THD: < 20%
• Power factor > 0.95
Resources
CCT
- 3000K
- 3500K
- 4000K
- 5000K
- 5700K
- 6500K
Color / Finish
- White
CRI
- 80
Lamp Source
- LED
Listings
- ETL
Lumens
- 6250
- 9375
Mounting
- Recessed
- Surface
Ratings & Compliance
- DLC Premium
- FCC
- TAA
Shape
- Rectangular
Size
- 1x4
- 2x2
- 2x4
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 15
- 20
- 30
- 40
- 50
- 75
Weight
- 19
- 20
- 35
Dimensions
- L: 23.78 In. W: 23.78 In. H: 1.30 In.
- L: 47.80 In. W: 11.97 In. H: 1.30 In.
- L: 47.80 In. W: 23.78 In. H: 1.30 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
