PFX-3129SR
New Product
Adjustable Wall Pack Sensor Ready

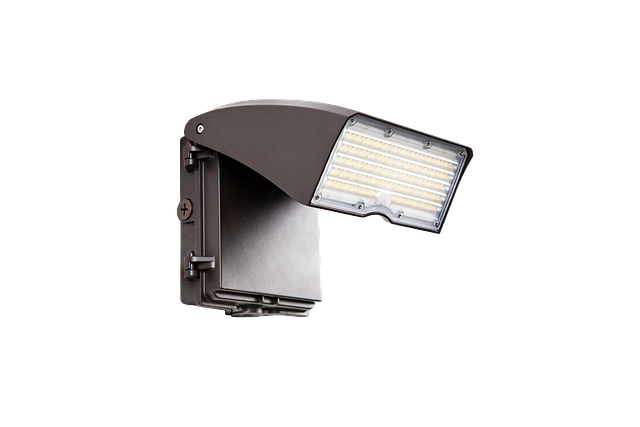

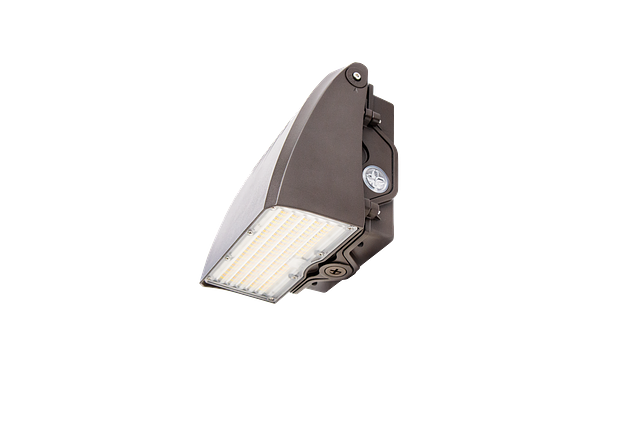

PFX-3129SR- Sensor-ready, adjustable wall pack with durable bronze die-cast aluminum housing and polycarbonate lens. Offers universal 120-277V input, 0-10V dimming, integrated photocell (switchable), and field-selectable CCT (3000K/4000K/5000K). Delivers up to 11,875 lumens with long-life LEDs (L70 >167K hrs). Rated for wet locations (cULus), IP65, IK08, and DLC Premium listed.
Resources
• Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10V DC dimming drivers are standard.
• Integrated photocell is standard. Photocell can be enabled or disabled by switch.
• Input transient surge protection = 6kV.
• PF > 0.9; THD < 20%.
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Bi-level Dimming
- Motion Sensor
- Occupancy Sensor
- Photocell
CRI
- 80 CRI
Distribution
- Type II
- Type III
Efficacy
- 139 lm/w
- 146 lm/w
- 156 lm/w
Lamp Life
- 51000 hrs
- 167000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 2739 Lm
- 6002 Lm
- 11875 Lm
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Wall
Ratings & Compliance
- DLC Premium
- FCC
- IK08
- IP65
Shape
- Square
Voltage
- 120-277 V
Watts
- 18 w
- 25 w
- 32 w
- 40 w
- 50 w
- 60 w
- 70 w
- 80 w
Weight
- 3.73 lbs
- 3.83 lbs
Dimensions
- H: 5.8 In. L: 7.72 In. W: 8.37 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
