PFX-5542
E-1.jpgPFX-5542
New Product

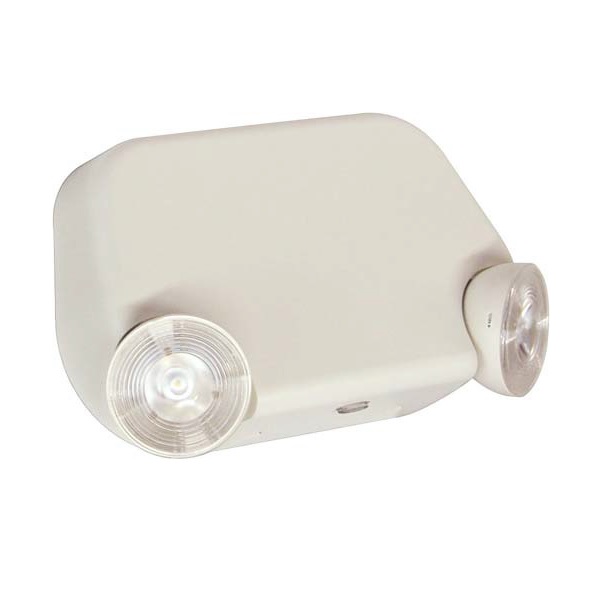

LED Low Profile, Thermoplastic Emergency Light
ELECTRICAL
• Dual 120/277 voltage standard. Optional dual 120/230
voltage available.
• Unique bi-color LED indicator light alerts occupant on
battery condition (Green-normal, Red-check battery).
• 3.6V long life, maintenance-free, rechargeable Ni-Cd
battery.
• Internal solid-state transfer switch automatically connects
the internal battery to LED lamp heads for minimum
90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery
charging to recharge a discharged battery in 24 hours.
• Dual 120/277 voltage standard. Optional dual 120/230
voltage available.
• Unique bi-color LED indicator light alerts occupant on
battery condition (Green-normal, Red-check battery).
• 3.6V long life, maintenance-free, rechargeable Ni-Cd
battery.
• Internal solid-state transfer switch automatically connects
the internal battery to LED lamp heads for minimum
90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery
charging to recharge a discharged battery in 24 hours.
Resources
HOUSING
• Injection-molded, engineering grade, 5VA flame retardant,
high-impact resistant, thermoplastic in white or black finish.
MOUNTING
• Surface mount back plate fits most standard size junction
boxes and snaps into place.
• Suitable for wall or ceiling mount.
• Injection-molded, engineering grade, 5VA flame retardant,
high-impact resistant, thermoplastic in white or black finish.
MOUNTING
• Surface mount back plate fits most standard size junction
boxes and snaps into place.
• Suitable for wall or ceiling mount.
• Dual 120/277 voltage standard.Optional dual 120/230 voltage available.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• 3.6V long life, maintenance-free, rechargeable Ni-Cd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery hours.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• 3.6V long life, maintenance-free, rechargeable Ni-Cd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery hours.
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Thermoplastic
Mounting
- Ceiling
- Wall
Emergency Options
- Emergency Lighting Control
Ratings & Compliance
- Damp
- NFPA 101
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120-277 V
Dimensions
- H: 4.12 In. L: 2.16 In. W: 7.8 In.
Warranty
- 5 yr
