PFX-5581

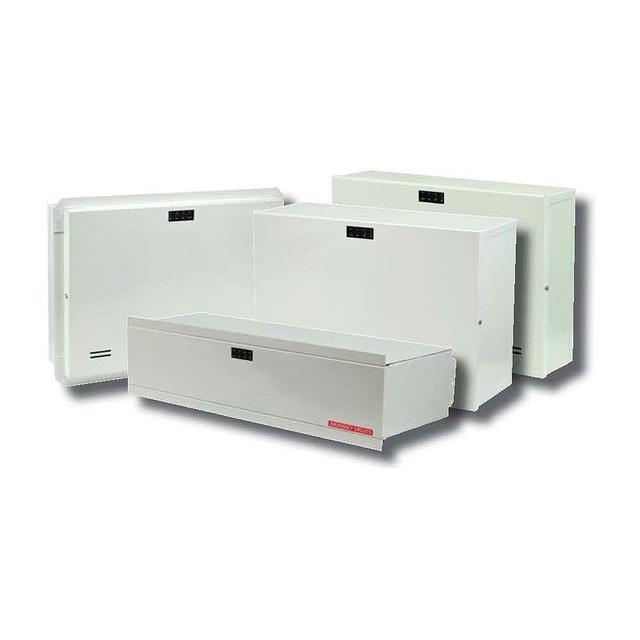

SPS Pictures_1.jpg

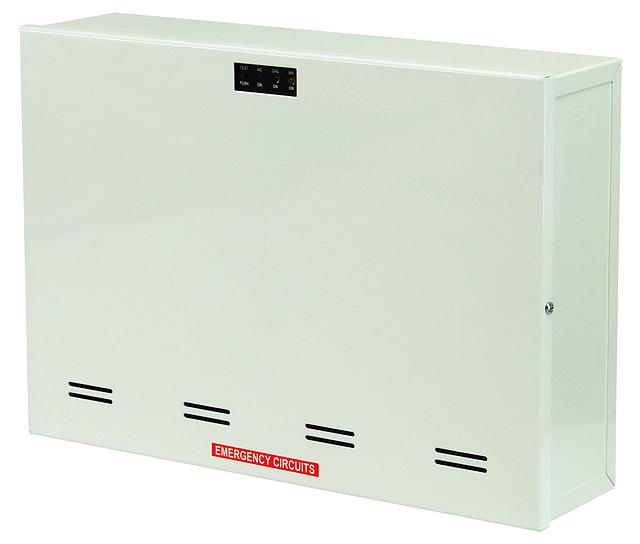

SPS-250.jpgPFX-5581
New Product
SPS Series Inverters Emergency Power Systems
The PFX-5581 SPS Series is a high-efficiency, digitally controlled inverter system engineered to provide reliable emergency power for lighting loads up to 220W/250VA. Featuring advanced PWM technology for clean, sinusoidal output and full lumen maintenance for at least 90 minutes, it supports multiple mounting configurations and remote fixture installation up to 1,000 feet. Key features include a robust lead-calcium battery with a 10-year design life, temperature-compensated charging, and a user-friendly LED status display for real-time system monitoring.
Resources
Input
• Input Voltages: 120 or 277VAC ±10%
• Input Frequencies: 60Hz ±2%
• Input Protection: AC Line Fuses
output
• Output Voltages: (60Hz) 120 or 277VAC
• Efficiency Rating: 98% at full rated load (line)
• Waveform: Sinusoidal (digitally controlled)
• Static Voltage: ±5% during battery discharge. 0-100% linear load.
• Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
• Output Distortion: Less than 3% THD (linear load)
• Transfer Time: Less than 1.0 second
• Load Power Factor Range: 0.44 Lead to 0.44 Lag
• Minimum Loading: 0% of rated system capacity
• Output Protection: Line and inverter fuses
• Input Voltages: 120 or 277VAC ±10%
• Input Frequencies: 60Hz ±2%
• Input Protection: AC Line Fuses
output
• Output Voltages: (60Hz) 120 or 277VAC
• Efficiency Rating: 98% at full rated load (line)
• Waveform: Sinusoidal (digitally controlled)
• Static Voltage: ±5% during battery discharge. 0-100% linear load.
• Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
• Output Distortion: Less than 3% THD (linear load)
• Transfer Time: Less than 1.0 second
• Load Power Factor Range: 0.44 Lead to 0.44 Lag
• Minimum Loading: 0% of rated system capacity
• Output Protection: Line and inverter fuses
Color / Finish
- White
Listings
- UL
Materials
- Steel
Mounting
- Recessed
- Surface
- T-Grid
Emergency Options
- Remote Inverter
Ratings & Compliance
- Damp
- FCC
- Title 20
Shape
- Rectangular
Voltage
- 120 V
- 277 V
Watts
- 55 w
- 110 w
- 220 w
Weight
- 30 lbs
- 42 lbs
- 45 lbs
- 60 lbs
Dimensions
- H: 8.16 In. L: 6.3 In. W: 23.8 In.
- H: 11.3 In. L: 6.3 In. W: 16.4 In.
- H: 13.8 In. L: 6.3 In. W: 18.8 In.
Warranty
- 3 yr
