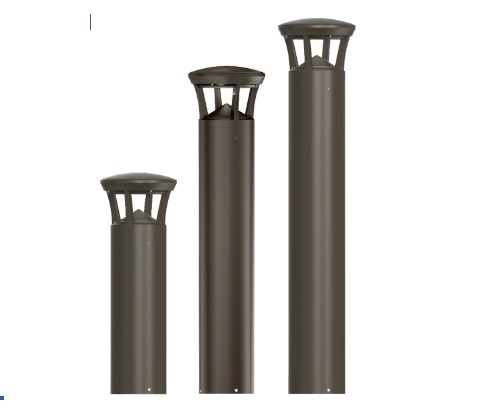

Untitled.jpg 1.jpg

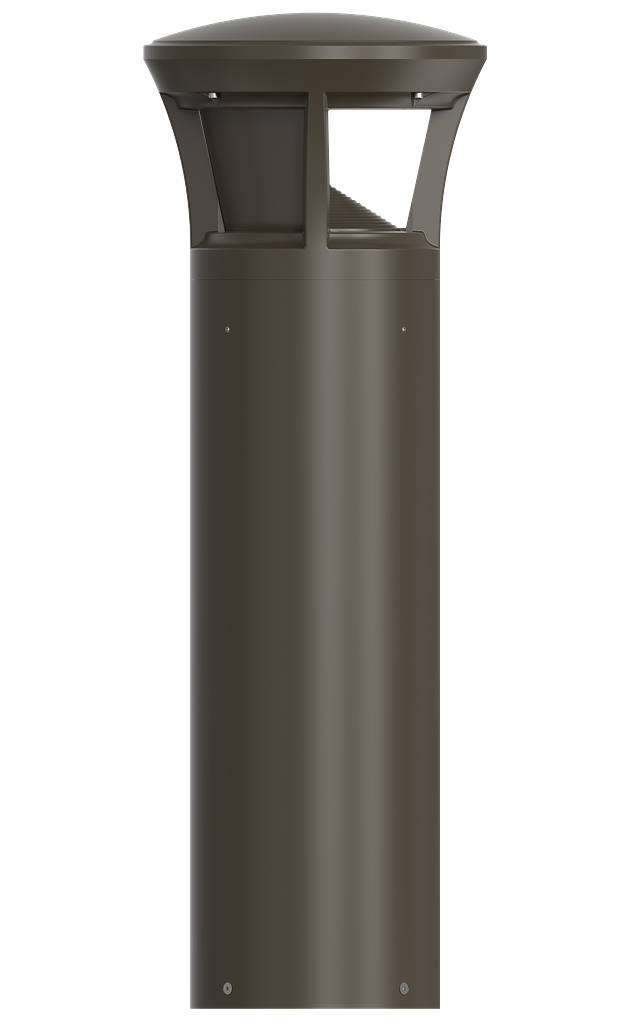

BLA 24inch - Crowned Top with Glare Shield(1).png

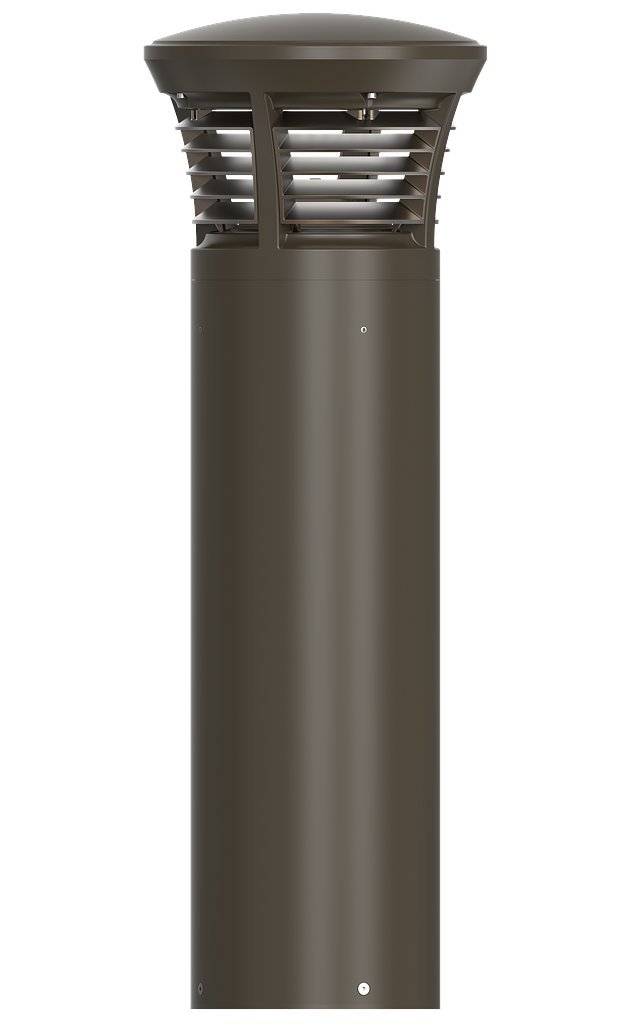

BLA 24inch - Crowned Top with Louver.png

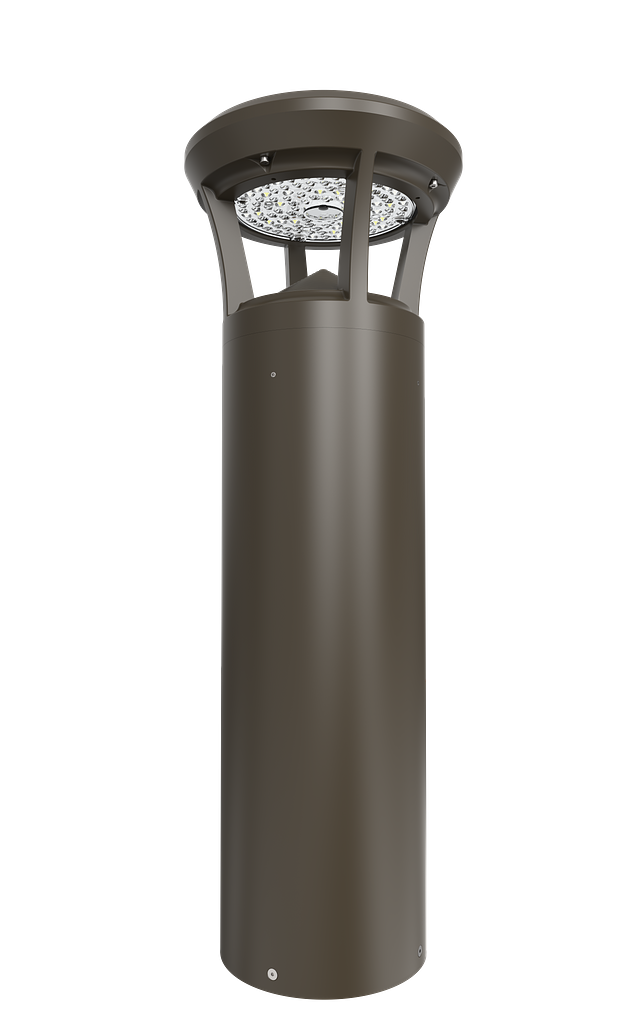

BLA 24inch.png

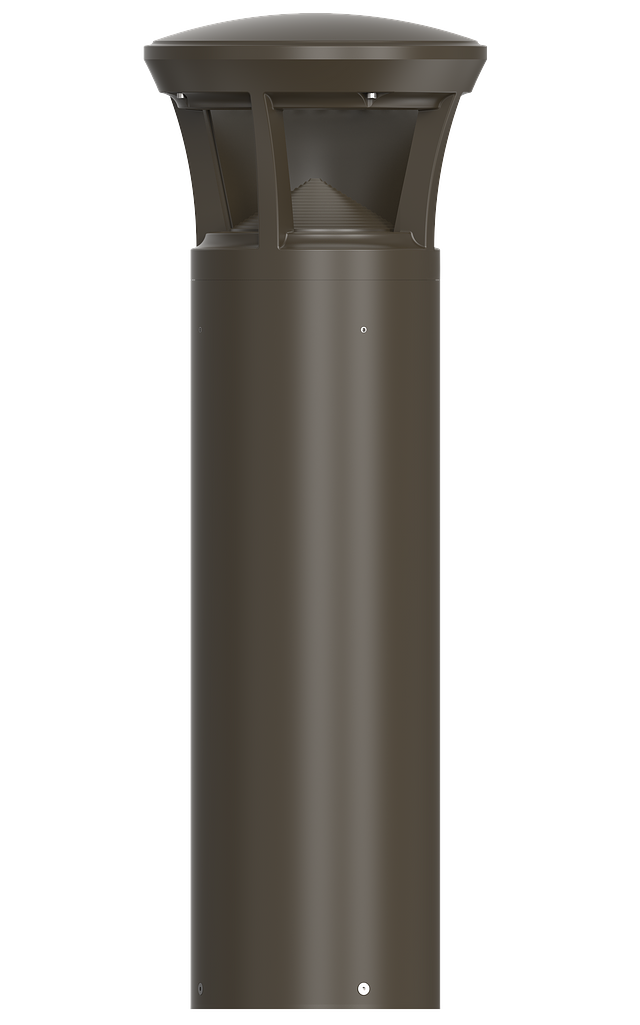

BLA 24inch - Crowned Top with Glare Shield(2).png

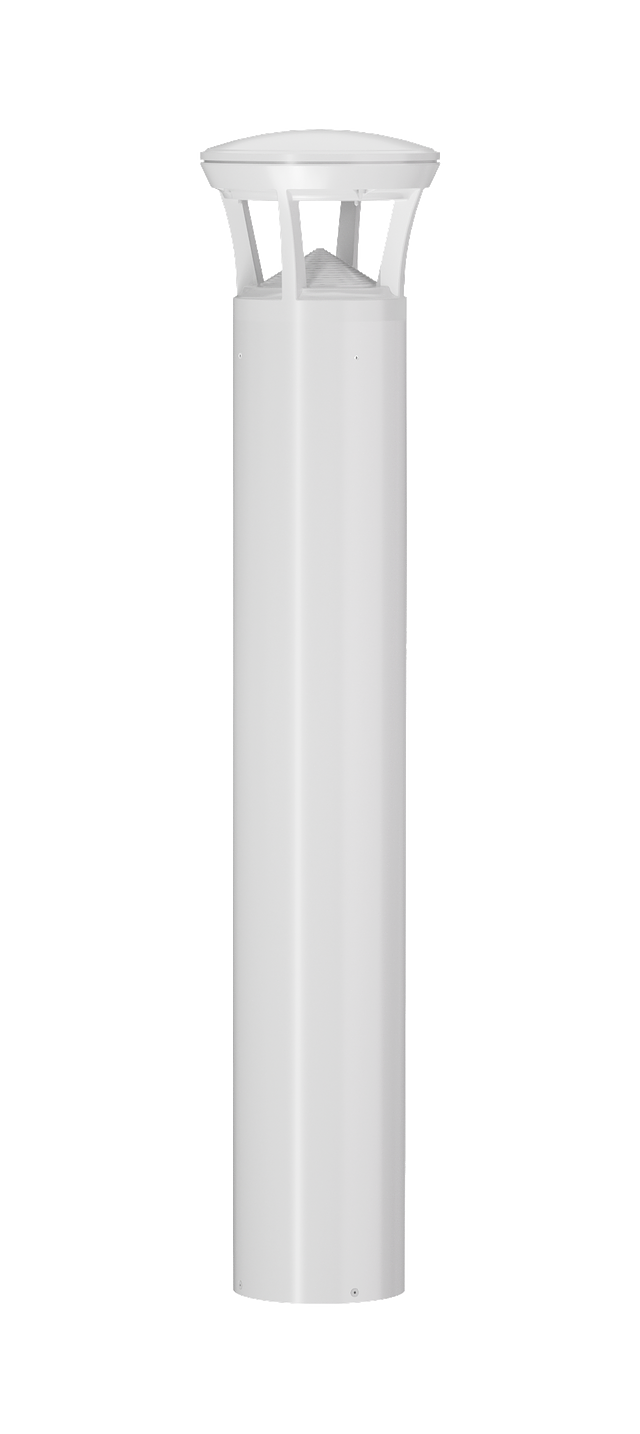

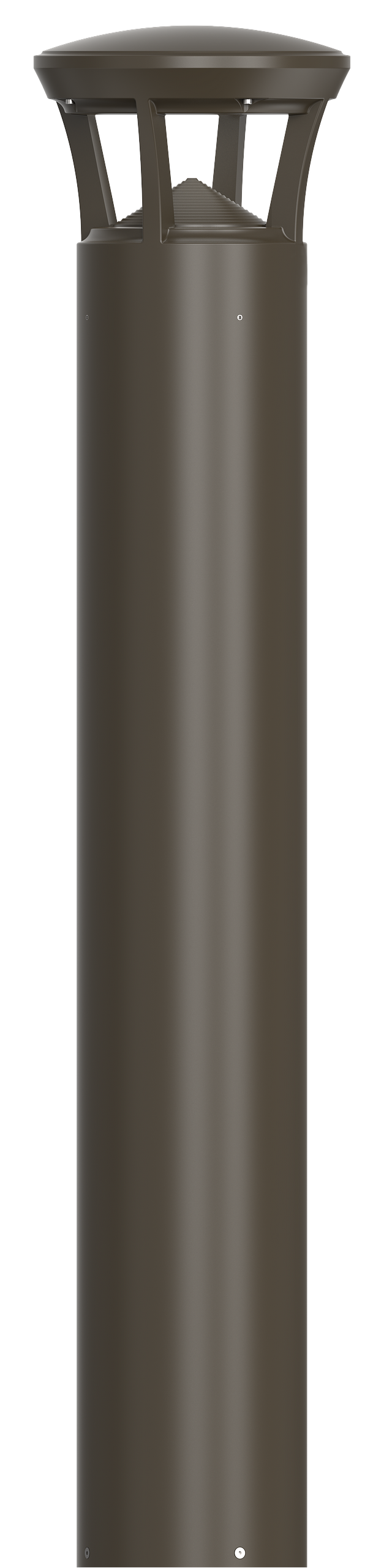

BLA 42inch - Crowned Top.png
BLA 42inch - Crowned Top.png
BLA 42inch - Crowned Top.png

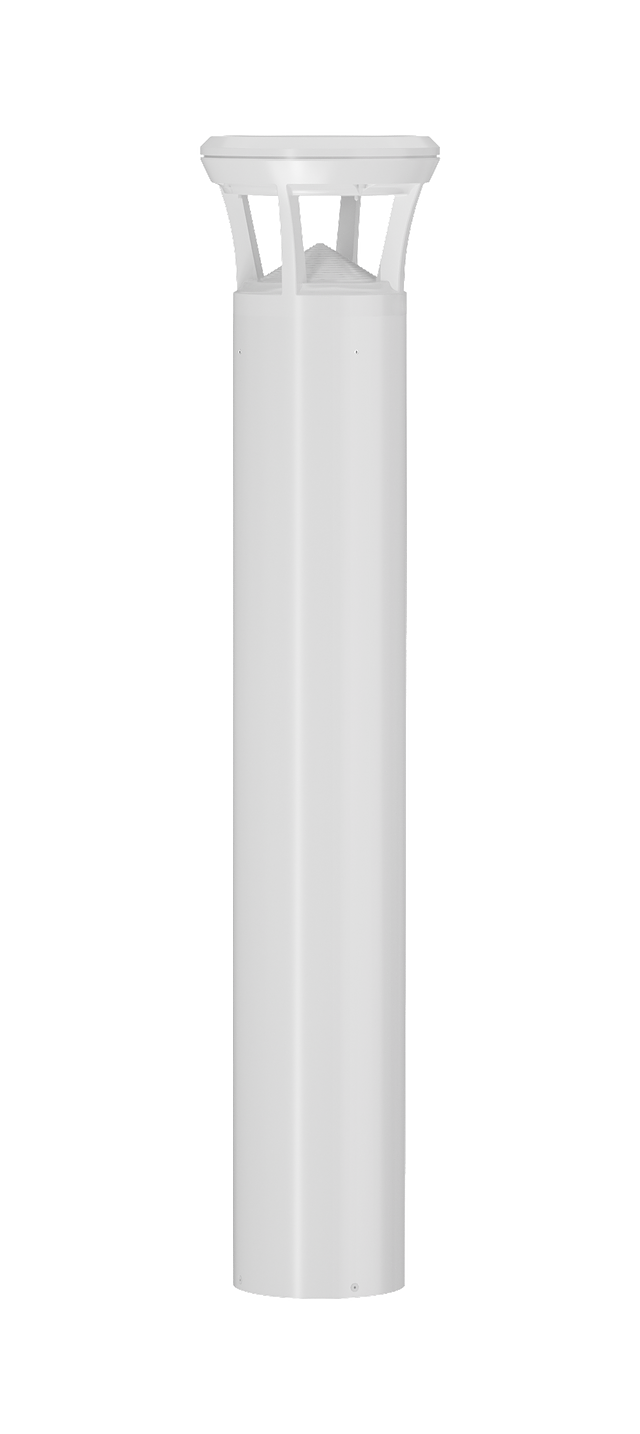

BLA 42inch - Flat Top.png

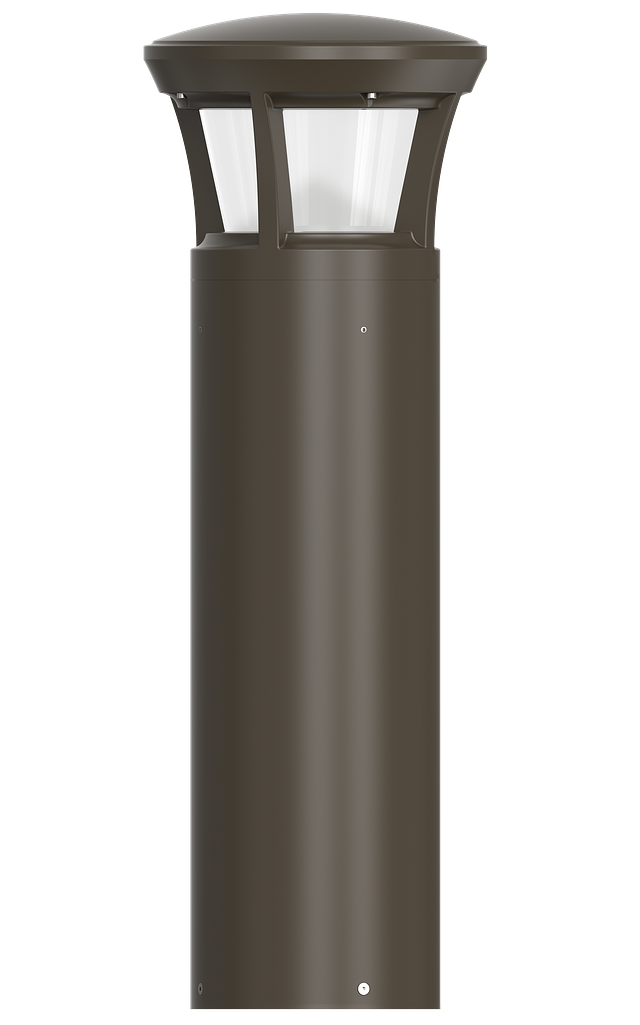

BLA 24inch - Crowned Top with Diffuse Lens.pngPFX-3416
New Product
LED Bollard Light with Selectable CCT and Lumen
The PFX-3416 LED Bollard Light by PARAFLEX offers configurable optics, CCT, and top cap combinations for diverse aesthetic and functional requirements. Constructed with durable, die-cast aluminum housing and a weather-resistant, powder-coated finish, it is designed for reliability in harsh outdoor conditions. Key features include selectable Color Correlated Temperature (CCT) between 3000K, 4000K, and 5000K, as well as wattage selection options of 24W, 15W, and 12W. This allows for an adjustable lumen output, with a maximum of 2,880lm at 5000K for Type V distribution. The bollard comes standard with a Dark Bronze finish but is also available in black and white.
Resources
• 0-10V dimmable driver, the dimming wire does not lead out from the fixture.
• Input voltage 120-277Vac for US market,120-347Vac for Canada market, and 50/60Hz.
• Input voltage 120-277Vac for US market,120-347Vac for Canada market, and 50/60Hz.
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Dark Bronze
- White
Distribution
- Type III
- Type V
Efficacy
- 120 lm/w
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 2520 Lm
- 2880 Lm
Materials
- Die-Cast Aluminum
Ratings & Compliance
- DLC
- DLC Premium
Shape
- Flat Top
Voltage
- 120-277 V
- 120-347 V
Watts
- 12 w
- 15 w
- 24 w
Dimensions
- H: 42.32 In. L: 8.66 In. W: 8.66 In.
- H: 36.14 In. L: 8.66 In. W: 8.66 In.
- H: 25 In. L: 8.66 In. W: 8.66 In.
Dimming Protocol
- 0-10 V
Style
- Decorative
Warranty
- 5 yr
