PFX-5544
HPEM 9.pngPFX-5544
New Product

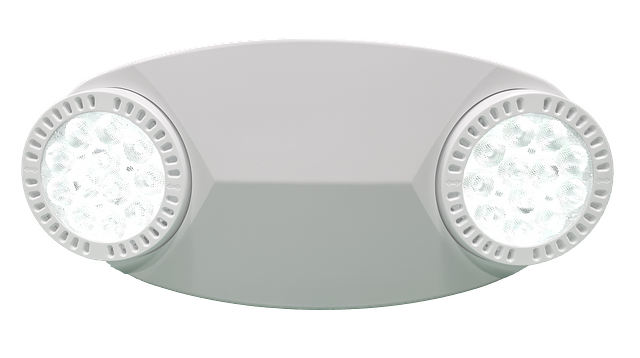

LED High Performance Emergency Thermoplastic Unit
The PFX-5544 is a high-performance, thermoplastic LED emergency lighting unit designed for maximum efficiency and safety. It features ultra-bright, energy-efficient white LEDs with adjustable lamp heads capable of delivering up to 100-ft center-to-center spacing with a 3-ft egress path at a 7.5-ft mounting height. Ideal for commercial and industrial applications requiring dependable emergency illumination. Construction-Injection-molded 5VA flame-retardant thermoplastic housing (White or Black). Optics: Chrome-plated metallized reflector with high-impact plastic lens.
Resources
Light Output: 5.0 watts total (12 x 0.42W LEDs per head)
Voltage: Universal 120-277V
Battery: 9.6V long-life, maintenance-free LiFePO₄ rechargeable battery
Emergency Runtime: Minimum 90 minutes
Remote Capacity: 3.0 watts standard
Indicators: Bi-color LED (Green = Normal, Red = Battery Check)
Test Features: Push-to-test switch & charge rate/power "ON" indicator
Charger: Fully automatic, solid-state 2-rate charger (recharges in 24 hrs)
Voltage: Universal 120-277V
Battery: 9.6V long-life, maintenance-free LiFePO₄ rechargeable battery
Emergency Runtime: Minimum 90 minutes
Remote Capacity: 3.0 watts standard
Indicators: Bi-color LED (Green = Normal, Red = Battery Check)
Test Features: Push-to-test switch & charge rate/power "ON" indicator
Charger: Fully automatic, solid-state 2-rate charger (recharges in 24 hrs)
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Thermoplastic
Mounting
- Ceiling
- Wall
Ratings & Compliance
- Damp
- NFPA 101
Shape
- Oval
- Rectangular
Static LED Color
- White
Voltage
- 120-277 V
Watts
- 5.0 w
Dimensions
- H: 3.16 In. L: 12.2 In. W: 5.3 In.
Warranty
- 5 yr
