PFX-5311

New Product

Undercabinet Light Selectable CCT

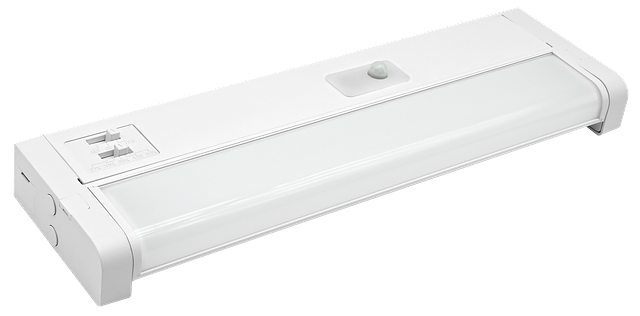

The PFX-5311 by PARAFLEX is a versatile, selectable CCT undercabinet light designed for high-performance task lighting. Encased in a white aluminum housing, it features a rotatable light bar with a $65^{\circ}$ swivel for precise directional control. Users can easily select between five color temperatures, ranging from 2700K soft white to 5000K cool white. This series offers multiple lengths from 9 to 36 inches, delivering a nominal lumen range of 300 to 2,300 lm. The fixture is cETLus listed for damp locations and complies with Title 24 and JA8 standards. With a high CRI of >90 and a long life of up to 167,000 hours (L70), it ensures exceptional color accuracy and durability. Additionally, it supports Triac dimming and allows multiple units to be linked via integrated connectors.

Specification Sheet

Resources

• Operating temperature (ambient): -20°C to 45°C (-4°F to 113°F) .
• Universal 120V AC voltage (60Hz) is standard.
• PFX-5311-9-3L-5CCT = 4W
• PFX-5311-12-8L-5CCT = 8W
• PFX-5311-18-12L-5CCT = 12W
• PFX-5311-24-16L-5CCT = 16W
• PFX-5311-36-23L-5CCT = 24W
• Two or more lights can be linked.(see page 2 for run limitations)
• Maximum Load: Maximum limit of 2A per linking circuit.
• Triac dimming.
• Input transient surge protection = 1kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

Color / Finish

  • White

Controls Options

  • PIR Sensor

CRI

  • 90

Efficacy

  • 76.37
  • 105.29

Lamp Life

  • 51000

Lamp Source

  • LED

Listings

  • ETLus

Lumens

  • 300
  • 800
  • 1200
  • 1600
  • 2300

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Surface

Ratings & Compliance

  • Damp
  • FCC
  • Title 24

Shape

  • Rectangular

Voltage

  • 120 V

Watts

  • 3.95
  • 4
  • 7.96
  • 11.95

Weight

  • 1.06
  • 1.19
  • 1.33
  • 1.50
  • 1.61

Dimensions

  • L: 8.98 In. W: 3.35 In. H: 1.51 In.
  • L: 11.97 In. W: 3.35 In. H: 1.51 In.
  • L: 17.99 In. W: 3.35 In. H: 1.51 In.
  • L: 23.98 In. W: 3.35 In. H: 1.51 In.
  • L: 36.02 In. W: 3.35 In. H: 1.51 In.

Dimming Protocol

  • Triac (Leading Edge)

Warranty

  • 5 yr
