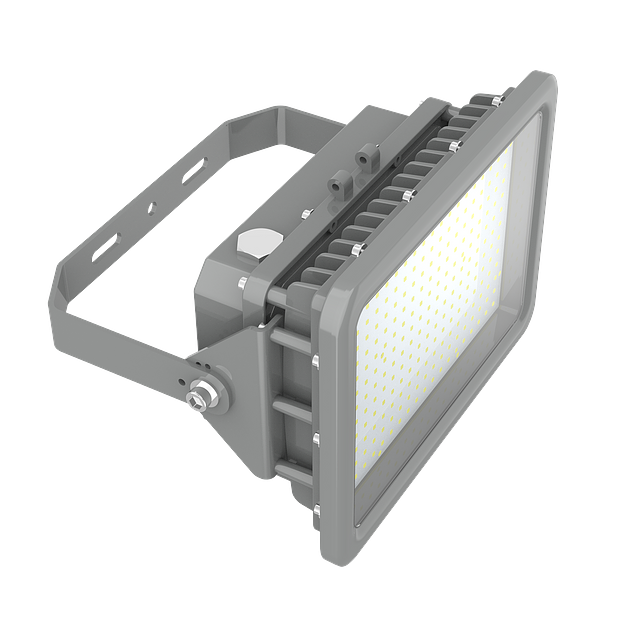

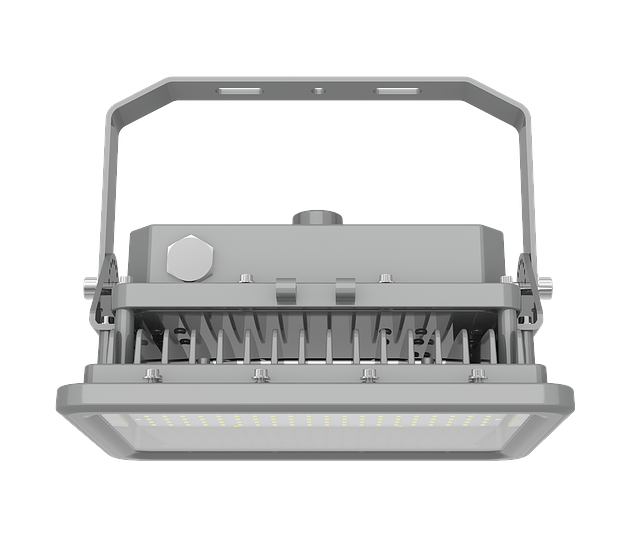

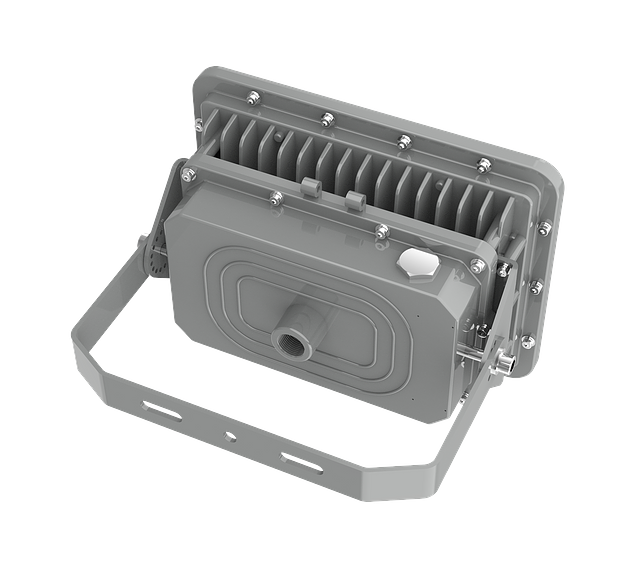

PFX-9601
New Product
A Series (Zone 2 & Class I Divison 2)
• 0-10V dimming optional • High luminous efficacy - Up to 140 lumens per watt • Battery backup function: emergency only available for A3 and A4 • Compact and robust structure, excellent reliability • Various installation ways for different applications • Great impact resistance with IK08/IK10 certified • Die-cast aluminum housing, great corrosion resistance and cooling performance
Resources
CCT
- 3000K
- 4000K
- 5000K
- 6500K
Color / Finish
- Gray
CRI
- 70
Efficacy
- 140
Lamp Life
- 78000
Listings
- CE
- ETL
- UL
Lumens
- 2800
- 5600
- 8400
- 11200
- 14000
- 16800
- 21000
- 25200
- 28000
- 35000
- 42000
- 56000
Materials
- Die-Cast Aluminum
Mounting
- Ceiling
- Pole
- Pole Mount
- Stanchion
- Stanchion
- Trunnion
- Wall
- Wall
- Yoke
Ratings & Compliance
- IK08
- IK10
- IP66
Shape
- Rectangular
Voltage
- 120-277 V
Watts
- 20
- 40
- 120
- 150
- 180
- 300
- 400
Weight
- 11.68
- 20.94
- 40.90
Beam Angle
- 40
- 60
- 90
- 120
Dimensions
- L: 14.37 In. H: 12.01 In.
- L: 17.72 In. W: 13.39 In. H: 14.57 In.
- L: 18.50 In. W: 14.57 In. H: 11.81 In.
- W: 19.29 In. H: 14.96 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
