PFX-5545

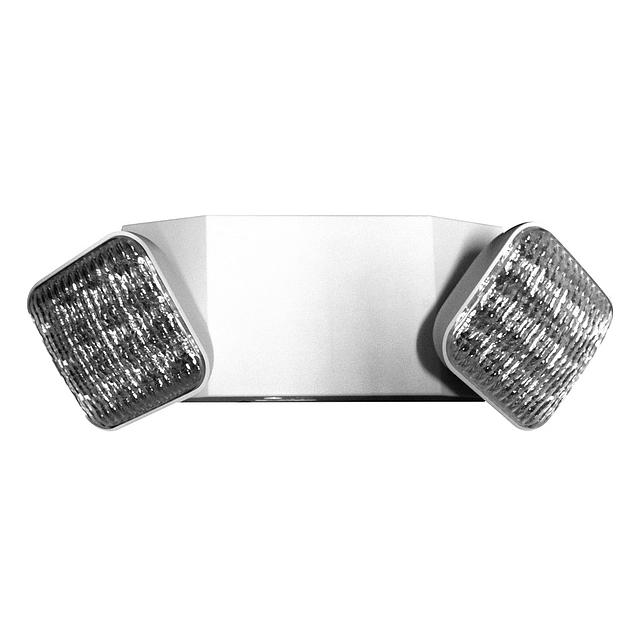

LEDR-1 WHITE UNIT.jpg

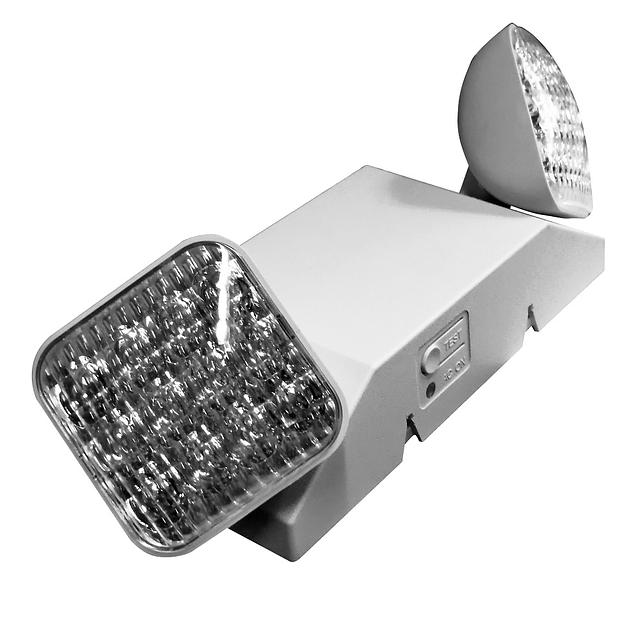

LEDR-1.jpgPFX-5545
New Product
LED Emergency Unit
• Long lasting, efficient, ultra bright white LED lamp heads. • 1W (8 LEDs x 0.125 watt) per head. • High performance chrome-plated metallized reflector and plastic lens for optimal light distribution. • Adjustable LED lamp heads provide optimal center-to-center spacing. High-lumen option available for increased center-to-center spacing.
Resources
• Dual 120/277 voltage standard. Optional 120/347V (for Canada) and multi-tap 208/220/240 voltage available.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90 -minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90 -minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Lumens
- 50 Lm
Materials
- Thermoplastic
Mounting
- Ceiling
- Surface
- Wall
Ratings & Compliance
- Damp
- NFPA 101
Shape
- Rectangular
Static LED Color
- White
Voltage
- 120 V
- 277 V
Watts
- 1 w
Dimensions
- H: 3.4 In. L: 4.5 In. W: 14.5 In.
Warranty
- 5 yr
