PFX-9701

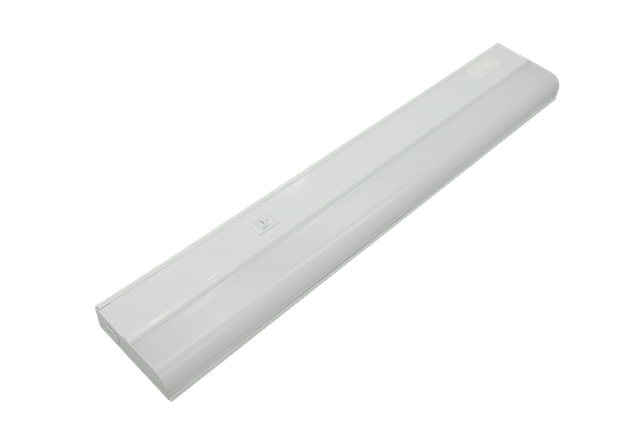

Product-Image-ISO-Bottom-UCE-21-KFS-4-Jul-2022.pngPFX-9701
New Product
Undercabinet Light CCT Selectable
• Field selectable 2700k (soft white), 3000k (warm white), 3500k(warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 196,000 hours of operation with at least 70% of initial lumen output (L70).**
• Available models provide from 334 to 1,543 nominal lumens.*
• 120 AC voltage (60Hz) is standard.
• Triac dimmable.
• Power factor > 90.
• Total harmonic distortion < 20%.
• Color rendering index > 90.
• Steel housing.
• Polycarbonate lens.
• Knockouts on sides and back simplify electrical connections.
• Keyhole slots provide for easy installation in new construction or retrofit applications.
• Long-life LEDs provide up to 196,000 hours of operation with at least 70% of initial lumen output (L70).**
• Available models provide from 334 to 1,543 nominal lumens.*
• 120 AC voltage (60Hz) is standard.
• Triac dimmable.
• Power factor > 90.
• Total harmonic distortion < 20%.
• Color rendering index > 90.
• Steel housing.
• Polycarbonate lens.
• Knockouts on sides and back simplify electrical connections.
• Keyhole slots provide for easy installation in new construction or retrofit applications.
Resources
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- Neutrals
- White
Controls Options
- Dimmable
CRI
- 90
Dimming Range
- 10%
Efficacy
- 60
- 66
Lamp Life
- 196000
Lamp Source
- LED
Listings
- cULus
Lumens
- 210
- 330
- 528
- 660
- 792
- 1056
Materials
- Polycarbonate
- Stainless Steel
Ratings & Compliance
- Damp
- FCC
Shape
- Rectangular
Voltage
- 120 V
Watts
- 5.0
- 9
- 14
- 16.0
- 18
Weight
- 0.80
- 1
- 1.30
- 1.60
- 1.70
- 3
Dimensions
- L: 9.0 In. W: 3.5 In. H: 1.0 In.
- L: 12.0 In. W: 3.5 In. H: 1.0 In.
- L: 18 In. W: 3.5 In. H: 1.0 In.
- L: 24 In. W: 3.5 In. H: 1.0 In.
- L: 32 In. W: 3.5 In. H: 1.0 In.
- L: 42 In. W: 3.5 In. H: 1.0 In.
Dimming Protocol
- Triac
Warranty
- 5 yr
