PFX-5310

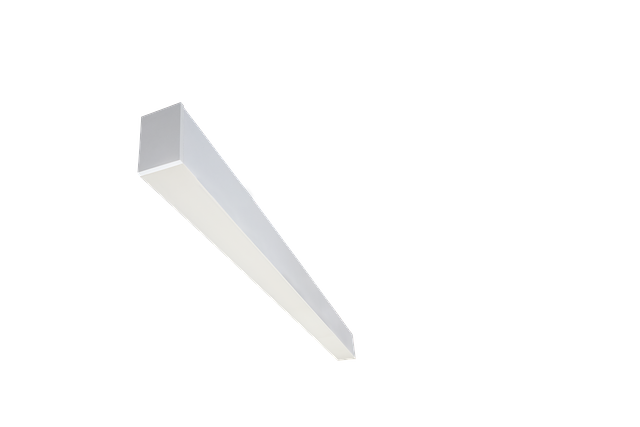

Product Image-ISO–Left Facing-Light Off-ALDI4-5432L-5CCT-WHT-30-Apr-2025.png

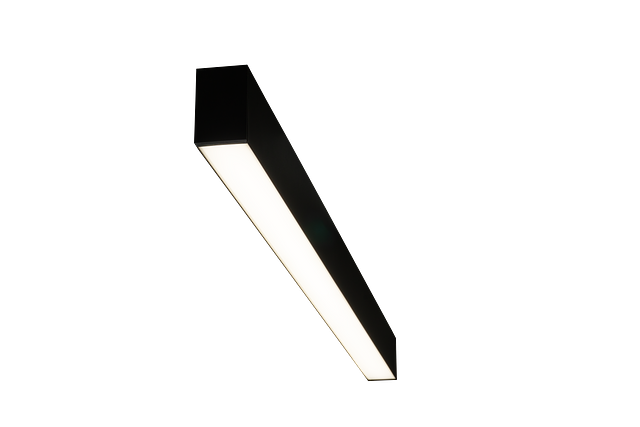

Product Image-ISO–Left Facing-Light On-ALDI4-5432L-5CCT-BLK-9-May-2025.png

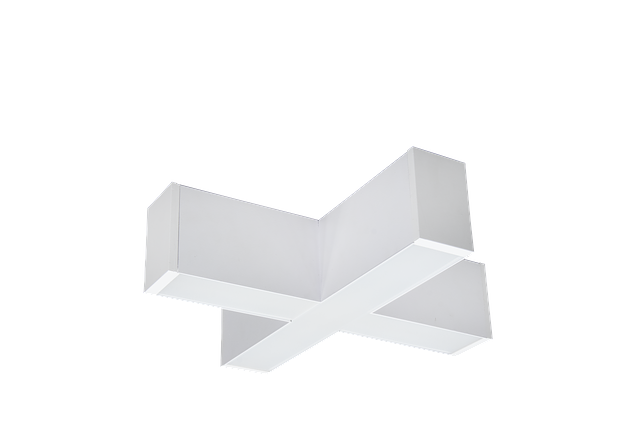

Product Image-ISO-Front Facing(Bottom)-ALDI-CONNECT-X-WHT-29-Apr-2025.png

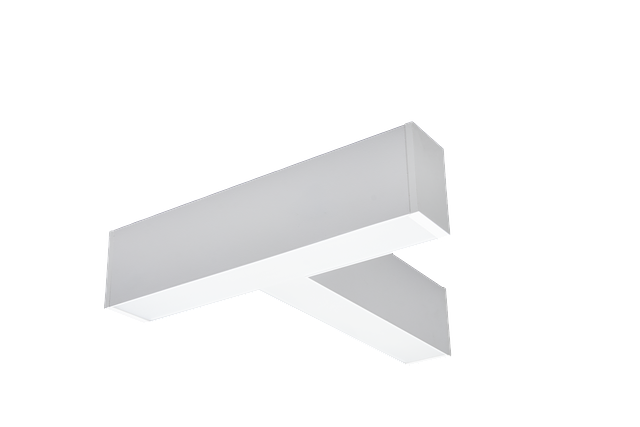

Product Image-ISO-Front Facing-ALDI-CONNECT-T-WHT-29-Apr-2025.png

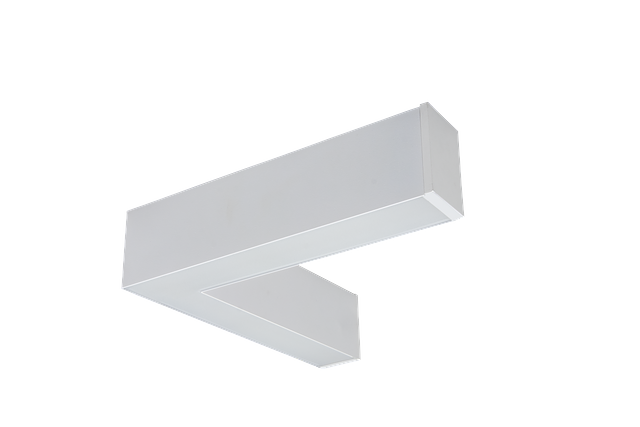

Product Image-ISO-Left Facing-ALDI-CONNECT-L-WHT-29-Apr-2025.pngPFX-5310
4FT Architectural Linear Direct - indirect Lumen & kelvin selectable
The PFX-5310 is a versatile 4-foot architectural linear fixture designed for direct and indirect lighting. It features field-selectable color temperatures ranging from 2700K to 5000K and four adjustable lumen output settings, reaching up to 5,078 nominal lumens. Built for durability, the unit includes a premium powder-coat housing and a long-life LED system rated for up to 175,000 hours. It offers flexible mounting options, including suspension, surface, wall, and recessed kits, making it suitable for diverse architectural environments. The fixture also supports toolless linking of up to 10 units at 120V for streamlined installation. Additionally, it is cULus listed for damp locations and features 2.5kV surge protection for enhanced electrical reliability.
Resources
- 20°C to 50°C (-4°F to 122°F) when fixture is mounted at least 18” from ceiling;
- 20°C to 40°C (-4°F to 104°F) when surface mounted.
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Tooless linking of up to 10 fixture/ connector @120V.
• Power cord sold separately, required for suspension, cable and T-grid mounting.
• Input transient surge protection = 2.5kV.
• Power factor > 0.90.
• Total Harmonic distortion < 20%.
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- Black
- White
CRI
- 80 CRI
Efficacy
- 114 lm/w
Lamp Life
- 53000 hrs
Lamp Source
- LED
Listings
- cULus
Lumens
- 2000 Lm
- 3000 Lm
- 4000 Lm
- 5000 Lm
Materials
- Metal
- PMMA
Mounting
- Cable
- Ceiling
- Recessed
- Suspended
- T-Grid
Ratings & Compliance
- Damp
- FCC
Shape
- Rectangular
Voltage
- 120-277 V
Watts
- 40 w
- 41 w
Weight
- 3 lbs
- 6 lbs
Dimensions
- H: 3.33 In. L: 48.15 In. W: 2.13 In.
- H: 3.3 In. L: 13.13 In. W: 13.13 In.
- H: 3.3 In. L: 13.43 In. W: 13.43 In.
- H: 3.3 In. L: 13.43 In. W: 13.43 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
