PFX-5312

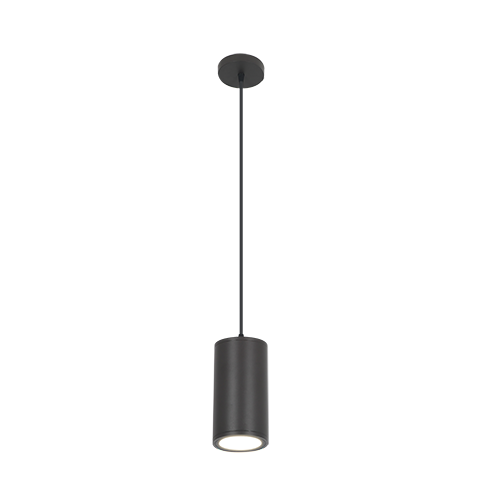

APEN4-221L-5CCT-CM-500x500 (1).png

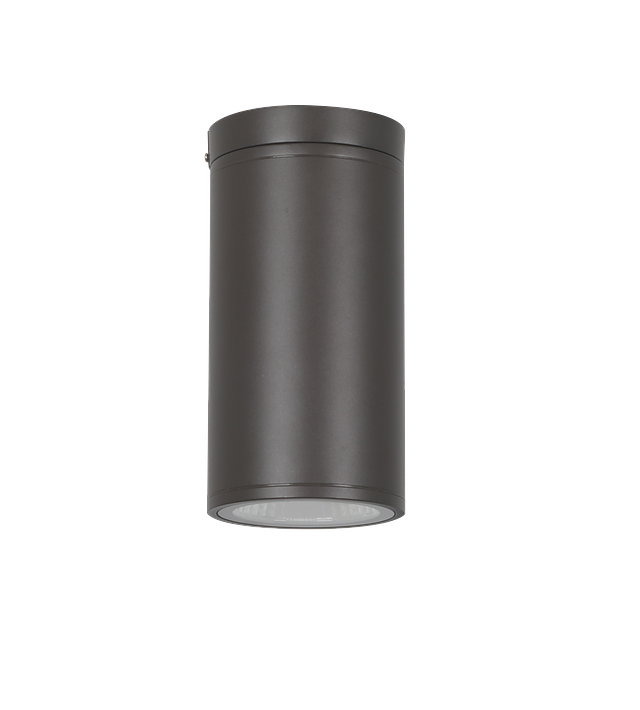

Product-Image-ISO-Left Facing-Light off-APEN4-221L-5CCT-SM-7-May-2025 (1).pngPFX-5312
Architectural Pendant Cylinder Luminaire Lumen & Kelvin Selectable
Silicon dioxide glass lens.
Field selectable 2700k(soft white), 3000k (warm white), 3500k(warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
Tri-Lumen selectable provides a range of 978 to 1907 nominal lumens*.
Long-life LEDs provide 140,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90)**.
• Fixtures comes installed with 40 degree reflector.
• Available field replaceable reflectors for 25° and 60°.
• LED color maintenance < 0.0004 chromaticity shift (∆u’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90.
Field selectable 2700k(soft white), 3000k (warm white), 3500k(warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures*.
Tri-Lumen selectable provides a range of 978 to 1907 nominal lumens*.
Long-life LEDs provide 140,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90)**.
• Fixtures comes installed with 40 degree reflector.
• Available field replaceable reflectors for 25° and 60°.
• LED color maintenance < 0.0004 chromaticity shift (∆u’v’) over the initial 6,000 hours of operation.
• Color rendering index > 90.
Resources
• Operating temperature(ambient): -40°C to 45°C (-40°F to 113°F).
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Surge protection = 4kV.
• Power factor > 0.90.
• Universal 120-277V AC voltage (50-60Hz) is standard.
• 0-10VDC dimming drivers are standard.
• Surge protection = 4kV.
• Power factor > 0.90.
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Dimmable
Diameter
- 4
Efficacy
- 85.64
- 103.68
Lamp Life
- 41000
Lamp Source
- LED
Listings
- UL
Lumens
- 1000
- 1600
- 2000
Materials
- Aluminum
Mounting
- Pendant
- Stem
- Surface
Ratings & Compliance
- Energy Star
- FCC
Shape
- Cylinder
Voltage
- 100-277 V
Watts
- 11
- 16
- 19
Weight
- 2
- 3
Dimensions
- L: 4.17 In. W: 4.17 In. H: 8.27 In.
- L: 4.17 In. W: 4.17 In. H: 67.30 In.
Dimming Protocol
- 0-10 V
Warranty
- 5 yr
