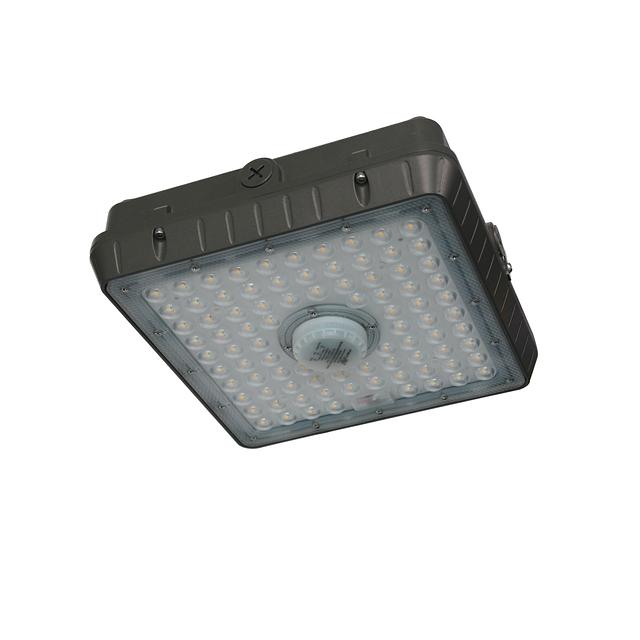

PFX-3613
LED Canopy Fixture - CCT and Lumen Selectable
▪ cULus listed for wet locations in ambient temperatures from -40°C to 40°C (-40°F to 104°F).
▪ IP65 rated for ingress protection.
▪ Lens is IK08 rated for impact.
▪ DLC premium approved for Fuel Pump and Parking Garage categories.
▪ Complies with FCC Part 15, class B.
▪ Complies with IEC/EN61000-4-5, input transient surge immunity protection (4kV).
▪ 5-year warranty on all electronics and housing.
▪ IP65 rated for ingress protection.
▪ Lens is IK08 rated for impact.
▪ DLC premium approved for Fuel Pump and Parking Garage categories.
▪ Complies with FCC Part 15, class B.
▪ Complies with IEC/EN61000-4-5, input transient surge immunity protection (4kV).
▪ 5-year warranty on all electronics and housing.
Resources
Photometry
- PFX3613-IES-CP-10L-LKFS-ODS-BRZ-75W-5000K-24-Oct-2022.IES
- PFX3613-IES-CP-10L-LKFS-ODS-BRZ-75W-3000K-24-Oct-2022.IES
- PFX3613-IES-CP-10L-LKFS-ODS-BRZ-55W-5000K-15-Jul-2022.ies
- PFX3613-IES-CP-10L-LKFS-ODS-BRZ-55W-3000K-15-Jul-2022.ies
- PFX3613-IES-CP-10L-LKFS-ODS-BRZ-45W-5000K-15-Jul-2022.ies
- PFX3613-IES-CP-10L-LKFS-ODS-BRZ-45W-3000K-15-Jul-2022.ies
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
- White
Controls Options
- Daylight Sensor
- Motion Sensor
- Occupancy Sensor
CRI
- 80 CRI
Lamp Source
- LED
Listings
- UL
Lumens
- 7000 Lm
- 8000 Lm
- 10000 Lm
Materials
- Aluminum
- Polycarbonate
Ratings & Compliance
- IP65
Shape
- Square
Voltage
- 120-277 V
Watts
- 48 w
- 57 w
- 73 w
Dimensions
- H: 3.4 In. L: 9.6 In. W: 10.5 In.
Dimming Protocol
- 0-10 V
